Quick Details
-
Model Number:
-
tube
-
Specification:
-
1" 3/4" 1/2" 3/8" 1/4" 1/2"
-
Length:
-
as customized
-
Thickness:
-
as customized
-
Standard:
-
ISO/ROHS
-
color:
-
optional
-
Raw material:
-
100% pure PVDF meterial
-
Shape:
-
Round Shape
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
aixinfu
-
Model Number:
-
tube
-
Specification:
-
1" 3/4" 1/2" 3/8" 1/4" 1/2"
-
Length:
-
as customized
-
Thickness:
-
as customized
-
Standard:
-
ISO/ROHS
-
color:
-
optional
-
Raw material:
-
100% pure PVDF meterial
-
Shape:
-
Round Shape
PVDF tubing :
1.Made by Dakin,SoIvay material.
2.-55C~175C
3.corrosion resistance
4.High wear resistance
Application:
· Semiconductor industry
· Pulp and paper industry
· Pharmaceutical industry
· Chemical processing
· Food processing
· Laboratory
Fluorine products technical date sheet
|
character |
PTFE |
FEP |
PFA |
PVDF |
|
Specific gracity |
2.13-2.22 |
2.12-2.17 |
2.12-2.17 |
1.76-1.78 |
|
Melting point(℃) |
327 |
270 |
302-310 |
173-175 |
|
Maximum continuous user temperature(℃) |
260 |
200 |
260 |
150 |
|
Tensile strength(mpa) |
20-45 |
19-22 |
27-35 |
39-59 |
|
Coefficient of elongation(%) |
200-450 |
250-330 |
280-400 |
300-450 |
|
10³Hz 10 6 Hz Dielectric constant |
2.1 2.1 |
2.1 2.1 |
2.1 2.1 |
7.72 6.43 |
|
Volume resistance(Ω-CM) |
>10 18 |
>10 18 |
>10 18 |
>10 14 |
|
Dielectric (v/mil) breakdown strength |
480 |
500-600 |
500 |
260 |

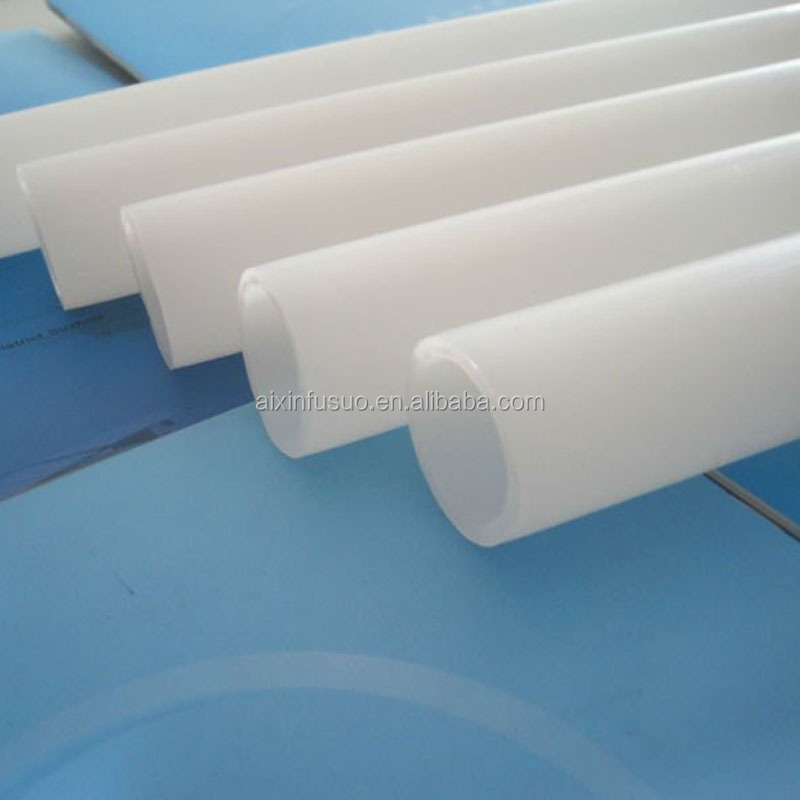

PVDF tube
Use: PVDF is one of best comprehensive properties of engineering plastics.It has excellent mechanical properties, good resistance of to climatic aging ,good resistance of irradiation and good resistance of corrosion and heat.
Because of PVDF has excellent comprehensive properties,say like, high mechanical strength and toughness, excellent chemical inert,,resistance of high temperature and oxidation ,excellent weathering resistance ,resistance to ultraviolet ray and resistance of to radioactive ,outstanding dielectric properties ,piezoelectricity,pyroelectricity, and waterproof ,self-extinguish ,ment etc..It widely used in Aviation, aerospace industry , chemical industry, instruments, electronics, machinery manufacturing, construction, medicine ,textile, metallurgical and other industries.
Utilization Characteristic:
Excellent chemical resistance
High purity
High mechanical
Abrasion resistance ,self-lubricity ,small friction coefficient
High temperature resistance and excellent thermal stability
Natural color is Jade white
Excellent anti-again
Non inflammability and self-extinguishment
Excellent resistance of ultraviolet rays and Gamma rays
It has highly quartz electricity reaction
Low shrinkage rate, and end products have good stability
Use :
Especially suitable for applications requiring hightemperature performance, outstanding abrasion resistance and cut-through resistance, or superior chemical and solvent properties. Provides electrical insulation and strain relief of multipin connectors and solder joints. Ideal for applications that require dense packing of components or visual inspection of covered components.
.
