Quick Details
-
Brand Name:
-
LEMA
-
Model Number:
-
LF-10
-
Max. Current:
-
10A, 10A
-
Name:
-
Foot switch
-
Certificate:
-
CQC
-
Material:
-
Steel
-
Size:
-
66*102*20mm
-
Color:
-
Black
-
Model:
-
LF-10
-
Application:
-
Punching machinery,automation machine,medical apparatus
-
Operating force:
-
0.9kg
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC, 125/250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEMA
-
Model Number:
-
LF-10
-
Max. Current:
-
10A, 10A
-
Name:
-
Foot switch
-
Certificate:
-
CQC
-
Material:
-
Steel
-
Size:
-
66*102*20mm
-
Color:
-
Black
-
Model:
-
LF-10
-
Application:
-
Punching machinery,automation machine,medical apparatus
-
Operating force:
-
0.9kg
Product Description

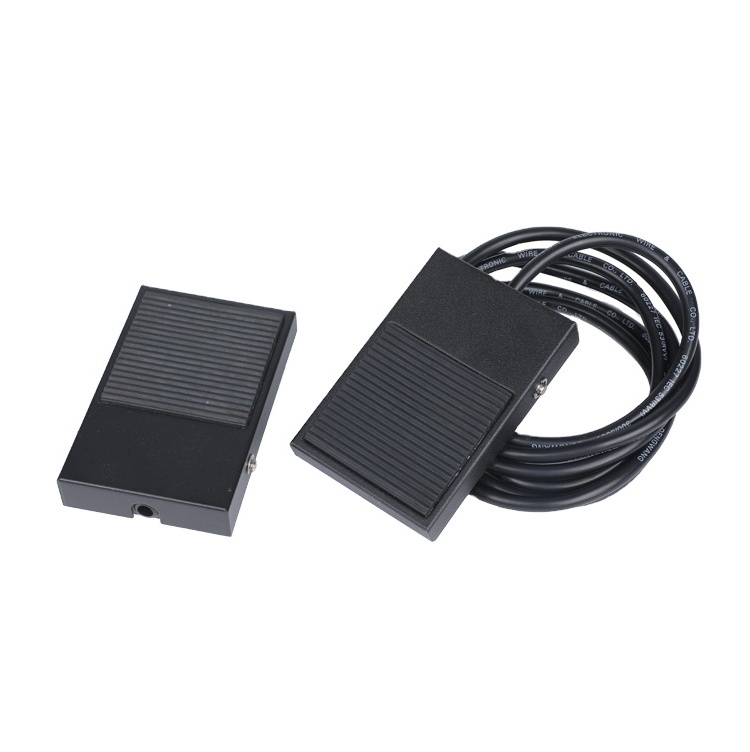

LF-10 Electric Push Button 10A Steel Metal Foot Pedal Switch Footswitch Medical
|
||
| Brands | LEMA | |
| Model | LF-10 | |
| Voltage: | 250/125 VAC | |
| Color | Black | |
| Size | 102*66*20mm | |
| Operating Force | 0.9kg | |
| Material | Steel | |
| Operating frequency | 30 times/min | |
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 25MΩmax. | |
|
Dielectric
strength |
Between non-consecutive
terminals |
1,000Vrms, 50/60Hz for 1 min |
|
Between non-current carrying
metal parts and each terminal |
2,000Vrms, 50/60Hz for 1 min | |
|
Between ground and each
terminal |
2,000Vrms, 50/60Hz for 1 min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance |
Durable: 1000m/s2(100G)max.
Malfunction: 300m/s2(30G)max. |
|
