Quick Details
-
Product Name:
-
EPS Shape Moulding Machine
-
Name:
-
EPS Foam Shape Molding Machine
-
Raw material:
-
EPS Raw Material
-
Machine Type:
-
Automatic Vacuum
-
Material:
-
Stainless Steel Eps Foam Machine
-
Color:
-
Blue
-
Finished products:
-
Disposable Container Production Line
-
Feature:
-
High Efficiency
-
Type:
-
Auto EPS Shape Moulding Machine
-
Weight:
-
180KG
-
Power:
-
1.5KW
Quick Details
-
Certification:
-
ce
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
Application:
-
Eps Foam Block
-
Product Name:
-
EPS Shape Moulding Machine
-
Name:
-
EPS Foam Shape Molding Machine
-
Raw material:
-
EPS Raw Material
-
Machine Type:
-
Automatic Vacuum
-
Material:
-
Stainless Steel Eps Foam Machine
-
Color:
-
Blue
-
Finished products:
-
Disposable Container Production Line
-
Feature:
-
High Efficiency
-
Type:
-
Auto EPS Shape Moulding Machine
-
Weight:
-
180KG
-
Power:
-
1.5KW

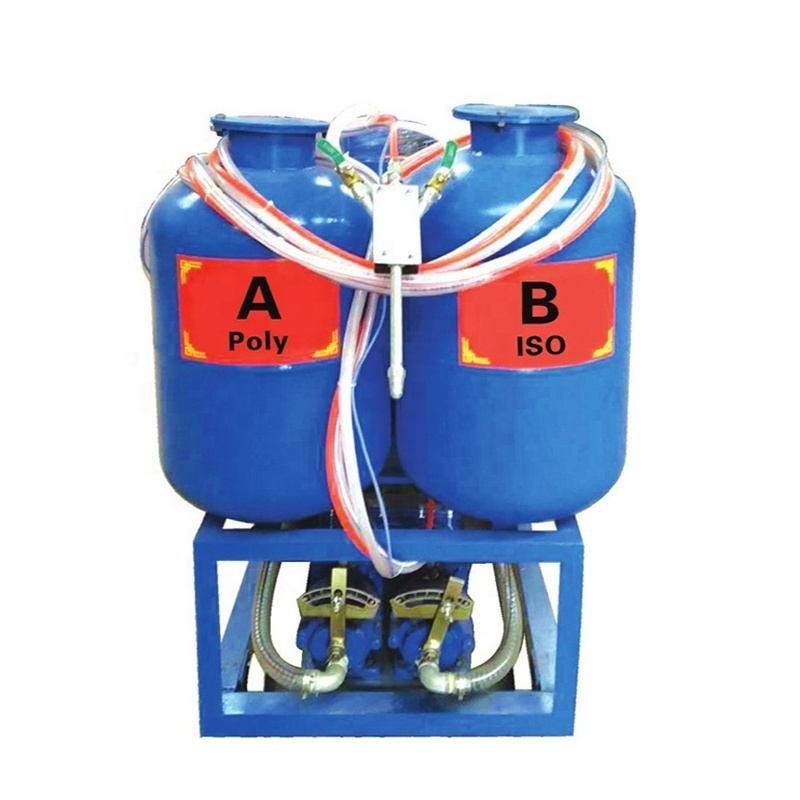

New small flow polyurethane PU foam spray injection machine
The machine has two possession tanks, each for independent tank of 28kg. Two different liquid material are entered into the two ring shaped piston metering pump from two tanks respectively. Start the motor and the gearbox drives two metering pumps to work at the same time. Then two kinds of liquid materials are sent to the nozzle at the same them in accordance with the pre-adjusted ratio.
Applications:
1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers, trucks, refrigerated trucks, tank, etc.
2. Casting: solar water heaters, tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.
|
Model |
CNMC-600 |
|
Power source |
220V/380V |
|
Heating power |
1.5KW |
|
Driven mode |
pneumatic |
|
Air source |
0.5~0.8 MPa ≥0.6m³/min |
|
Raw output |
9 kg/min |
|
AB material output ratio |
1:3~3:1 |
|
Spray gun |
1 Set |
|
Hose |
8 meters |
|
Metering pump model |
HJ9-100 |
|
Entrance diameter |
1/2" |
|
Exit diameter |
1/2" |
|
Rotation speed |
500/min |
