Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
HIWIN
-
Product's name:
-
Ball screw
-
Model NO:
-
40-10T3
-
Precision Rating:
-
C0,C1,C2,C3,C5,C6
-
Market:
-
Global
-
Package:
-
Standard
-
Stock:
-
in stocks
-
Feature:
-
High rigidity;Super smooth;High precision
-
Sample:
-
Accpet
-
Application:
-
3D printer; Transmission machinery;CNC machine;Medical instruments
Quick Details
-
Weight (KG):
-
0.5
-
Material:
-
Imported bearing steel, Bearing Steel
-
Length:
-
OEM
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
HIWIN
-
Product's name:
-
Ball screw
-
Model NO:
-
40-10T3
-
Precision Rating:
-
C0,C1,C2,C3,C5,C6
-
Market:
-
Global
-
Package:
-
Standard
-
Stock:
-
in stocks
-
Feature:
-
High rigidity;Super smooth;High precision
-
Sample:
-
Accpet
-
Application:
-
3D printer; Transmission machinery;CNC machine;Medical instruments
Product Description

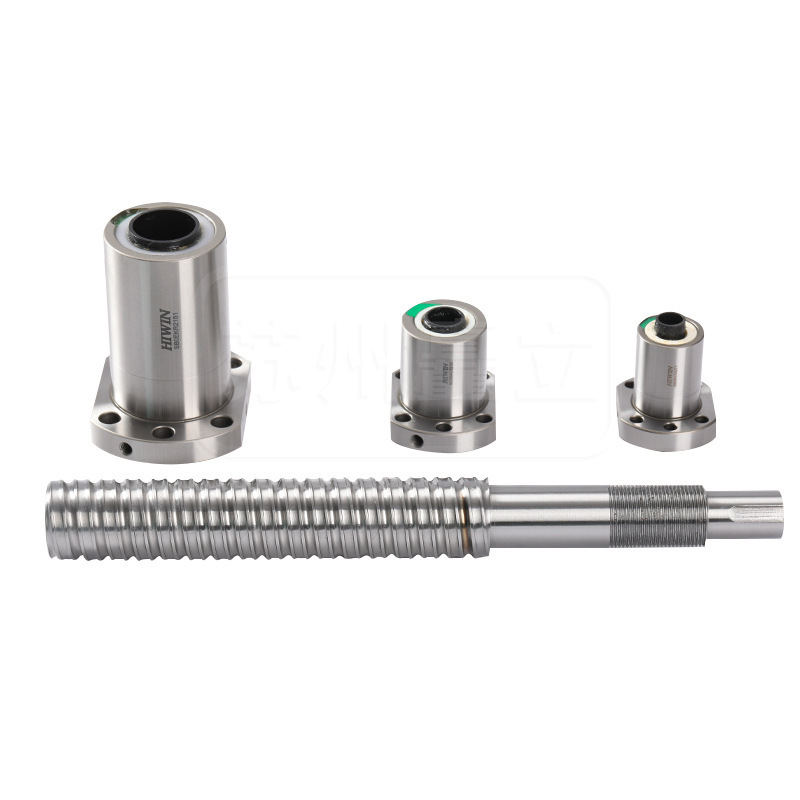

Taiwan HIWIN high Efficient ball screw for Automation 40-10T3 FSC 40-10T4
Ball screw works in a similar way to a conventional lead screw, but the significant advantage of using a ball screw is that it uses ball bearings running in the helical channel to transmit the load. In high precision applications it is often necessary to translate the rotary motion from a motor to linear motion for the payload. One way of achieving this is by using a ball screw.
Ball bearings within a ball screw roll along the track in a similar way to ball bearings in a standard rotary ball race, therefore eliminating the sliding friction associated with lead screws. The ball bearings are continually recirculated through the ball nut, distributing the load and picking up lubrication along the way. Due to the use of rolling ball bearings within a ball screw, the internal friction is very low, meaning ball screws can offer a high level of efficiency and positional accuracy even at high torque and force loadings.
Ball screws can be quite complicated and high-precision devices, meaning they can sometimes be slightly more costly compared to a typical lead screw. This is due to the complex machining and assembly techniques required to manufacture them. However, if your application requires a ball screw, the greater performance generally outweighs the cost.
Size Information
|
Model No
|
Nominal outer diameter
(mm) |
Lead
(mm) |
L2(mm)
|
dynamic load
C(kgf) |
static load
Ca(kgf) |
|
15-5K3
|
15
|
5
|
38
|
990
|
1580
|
|
16-5T3
|
16
|
5
|
40
|
1000
|
2000
|
|
20-5K3
|
20
|
5
|
36
|
1280
|
2410
|
|
20-5K4
|
20
|
5
|
40
|
1670
|
3270
|
|
25-5K3
|
25
|
5
|
38
|
1420
|
3050
|
|
25-5K4
|
25
|
5
|
43
|
1850
|
4150
|
|
25-10K5
|
25
|
10
|
70
|
2260
|
5200
|
|
32-5K4
|
32
|
5
|
38
|
2070
|
5360
|
|
32-5K6
|
32
|
5
|
48
|
2980
|
8190
|
|
32-10T3
|
32
|
10
|
74
|
3650
|
8660
|
|
32-10T4
|
32
|
10
|
85
|
4680
|
11550
|
|
32-10K5
|
32
|
10
|
73
|
3390
|
8160
|
|
32-10K6
|
32
|
10
|
83
|
3990
|
9860
|
|
40-5K4
|
40
|
5
|
40
|
2240
|
6590
|
|
40-5K6
|
40
|
5
|
50
|
3220
|
10060
|
|
38-10K3
|
38
|
10
|
60
|
4350
|
9140
|
|
40-10T3
|
40
|
10
|
74
|
4030
|
10680
|
|
38-10K4
|
38
|
10
|
70
|
5660
|
12410
|
|
40-10T4
|
40
|
10
|
87
|
5170
|
14240
|
|
50-5K4
|
50
|
5
|
40
|
2450
|
8330
|
|
50-5K6
|
50
|
5
|
50
|
3530
|
12720
|
|
50-10K3
|
50
|
10
|
60
|
4960
|
12240
|
|
50-10K4
|
50
|
10
|
70
|
6450
|
16610
|
|
50-10K6
|
50
|
10
|
90
|
9280
|
25350
|
|
63-10K6
|
63
|
10
|
94
|
10180
|
31750
|
Application Field
Ball screw for
multi-axis robot
Ball screw for
Rotary table
Ball screw for
Optical detector
HIWIN converted grade screw also has the advantages of high smoothness, long life and low price; it is generally used in situations where precision is not required.
HIWIN precision screws have high smoothness and precise positioning, as well as low torque, high rigidity, ultra-quiet and predictable long life.
