Quick Details
-
Dimension (L*W*H):
-
440*750*270mm
-
Weight:
-
29.5kg
-
Product name:
-

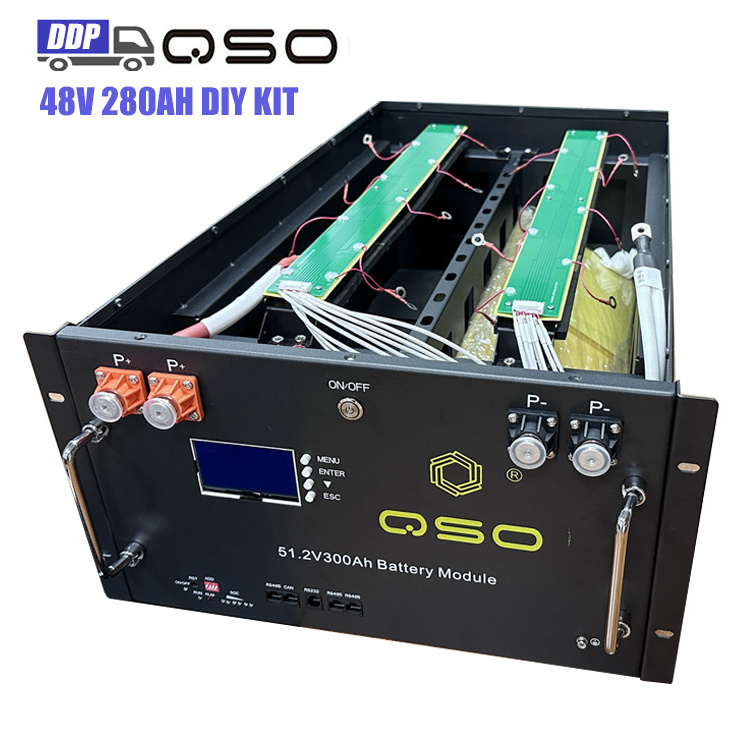

16s diy 280ah battery box
-
BMS:
-
48V 16S 100A/150A/200A BMS
-
Application:
-
Power Tools,BOATS,Golf Carts,Solar Energy Storage Systems
-
Payment:
-
TT Paypal Westunion
-
OEM/ODM:
-
Support customization
-
Shipping:
-
DDP,DAP,DDU
-
size:
-
440*750*270mm
-
MOQ:
-
1Piece
-
Communication:
-
CANBUS and RS485
-
Power Source:
-
Solar Panel
Quick Details
-
Model Number:
-
LF280
-
Brand Name:
-
16s diy 280ah battery box
-
Place of Origin:
-
Guangdong, China
-
Dimension (L*W*H):
-
440*750*270mm
-
Weight:
-
29.5kg
-
Product name:
-
16s diy 280ah battery box
-
BMS:
-
48V 16S 100A/150A/200A BMS
-
Application:
-
Power Tools,BOATS,Golf Carts,Solar Energy Storage Systems
-
Payment:
-
TT Paypal Westunion
-
OEM/ODM:
-
Support customization
-
Shipping:
-
DDP,DAP,DDU
-
size:
-
440*750*270mm
-
MOQ:
-
1Piece
-
Communication:
-
CANBUS and RS485
-
Power Source:
-
Solar Panel
Specification
|
Model
|
48V 16S LFP DIY Kits
|
|
|
Application
|
Solar energy household system
|
|
|
Battery type
|
230Ah 280Ah 302Ah Lifepo4 battery cell
|
|
|
Communication
|
CANBUS and RS485
|
|
|
BMS
|
48V 16S 100A 150A 200A BMS
|
|
|
Weight
|
29kg
|
|
|
Nominal Voltage
|
48V/51.2V
|
|
|
Battery Pack Type
|
Stackable
|
|
|
Continuous current
|
300A
|
|
|
Material
|
iron
|
|
|
230Ah Size
|
410*550*260mm
|
|
|
280Ah Size
|
440*750*270mm
|
|
|
Sample OEM/ODM
|
Acceptable
|
|
|
Shipping trade term
|
DDP
|
|
|
* Please Click Here:We Provide OEM /ODM Serevice !
* Quick Delivery From Spot In China.
We are committed to making the safest solar energy household system. If you also need 3.2v 280ah lifepo4 cells, please contact us! * For additional benefits For resellers we provide super price for you and policy,
We offer one-stop solar energy storage solutions, please contact us directly and we will tell you more.
Most importantly, we can provide you with professional solutions tailored to your
local market. Low profit? Don't worry, our engineering team will help you out. |
|
|
Product Description
Assembly Parts Packing List
Packing List
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
