Quick Details
-
Type:
-
X-ray Machine
-
Usage:
-
Secuity Equipment
-
Keyword:
-
Security Guard Equipment
-
Certificate:
-
ISO
-
Feature:
-
Self-check Function
-
Power supply:
-
110V/220V
-
Warranty:
-
1year
-
Video Input:
-
HD-MI
Quick Details
-
Place of Origin:
-
China
-
Application:
-
Security Check
-
Function:
-
Safety Protectionn
-
Type:
-
X-ray Machine
-
Usage:
-
Secuity Equipment
-
Keyword:
-
Security Guard Equipment
-
Certificate:
-
ISO
-
Feature:
-
Self-check Function
-
Power supply:
-
110V/220V
-
Warranty:
-
1year
-
Video Input:
-
HD-MI
Product Description

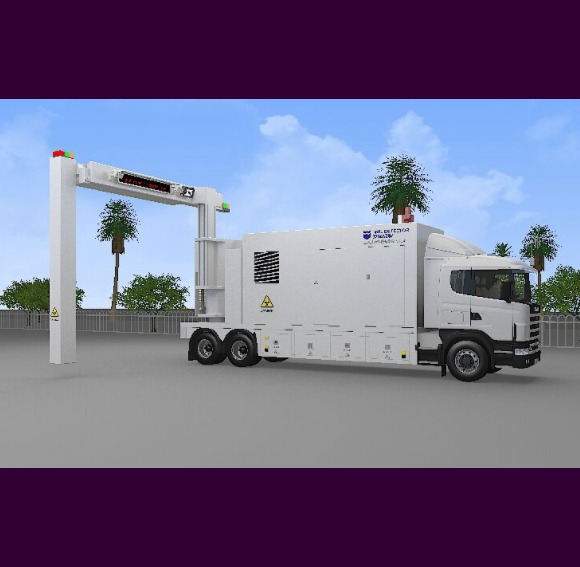

• Designed for inspecting loaded goods, containers, vehicles at customs, ports and border crossings
•Screen whole trucks, containers and vehicles for threats such as explosives, narcotics, weapons of mass destruction
(WMDs)
• High-speed imaging,high quality image analysis
• Ease of operation; requiring a minimal footprint and external infrastructure while still integrating the most demanding international security-screening requirements
Technical Specification:
- Linear accelerator
- Working mode: high energy and low energy beam alternately
- Operating frequency: 400Hz
- Energy: 4~6MeV
- Irradiation direction
- Side-illuminated
- Steel penetration
- Max.350mm
- Heat dissipation method
- Air-conditioning ventilation duct type and oil-immersed type
- Radiation protection
- 200mm thick lead can
- Scattering angle: 80 degrees
- Control method: RJ45 network port communication code control
- Collimator: Electric "shutter" device for ultra-narrow slit beam)
- Detection System
- Detector: SIPM photon counting detection system
- Counting range: 0 ~ 60000 photon number
- Structural design : vehicle folding detection frame,
- hydraulic rotary support driving mode, flexible and flexible)
- Color : Mirror blue-gray or military camouflage
- Dimension: 9.60 m(L)x 2.8 m(W) x 4.8 m (H)
- Tunnel size: >2.6 m(W) x 4.8 m (H)(customized)
- Weight: 27 tons
- Probe crystal: CDWO4
- Photoelectric conversion: CMOS
- Number of pixel: 2048
- Pixel arrangement: L-shaped line array
- Cascade way: Network port RJ45 communication mode
- Image Processing: Image workstation
- I7/8G/4TB hard disk /24 inch 20000:1 /LCD liquid crystal display
- Software functions:
- edge enhancement sharpening, image inversion, histogram equalization, stored image review,
- color/black and white, local increase, super increase, organic striping/inorganic striping,
- brightening/darkening, zooming in/out, real-time video
- Picture format: JPG,BMP images are named according to scan time
- License plate recognition
- License plate recognition and image classification and archiving
- Data storage : 500000 images as standard
- Data archiving: DVD burner (standard))
- Printer: color laser printer
