Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
China
-
Brand Name:
-
ZHENGDIAN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4000*3600*2300mm
-
Marketing Type:
-
Hot sale
-
Weight (KG):
-
3500 kg
-
Product Name:
-
Concrete block maker
-
Raw material:
-
Fly Ash Cement Sand Concrete
-
Block Type:
-
Hollow solid paver interlocking
-
Machine Type:
-
Hydralic Pressure
-
Pallet size:
-
680*530mm
-
Molding cycle:
-
15s
-
Advantage:
-
Automatic Operation
-
Rated Pressure:
-
15mpa-20mpa
-
Color:
-
as your demand
-
Kw:
-
19kw
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Autoclaved aerated concrete block (AAC)
-
Brick Raw Material:
-
Sand cement stone concrete
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
China
-
Brand Name:
-
ZHENGDIAN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4000*3600*2300mm
-
Marketing Type:
-
Hot sale
-
Weight (KG):
-
3500 kg
-
Product Name:
-
Concrete block maker
-
Raw material:
-
Fly Ash Cement Sand Concrete
-
Block Type:
-
Hollow solid paver interlocking
-
Machine Type:
-
Hydralic Pressure
-
Pallet size:
-
680*530mm
-
Molding cycle:
-
15s
-
Advantage:
-
Automatic Operation
-
Rated Pressure:
-
15mpa-20mpa
-
Color:
-
as your demand
-
Kw:
-
19kw
Product Description

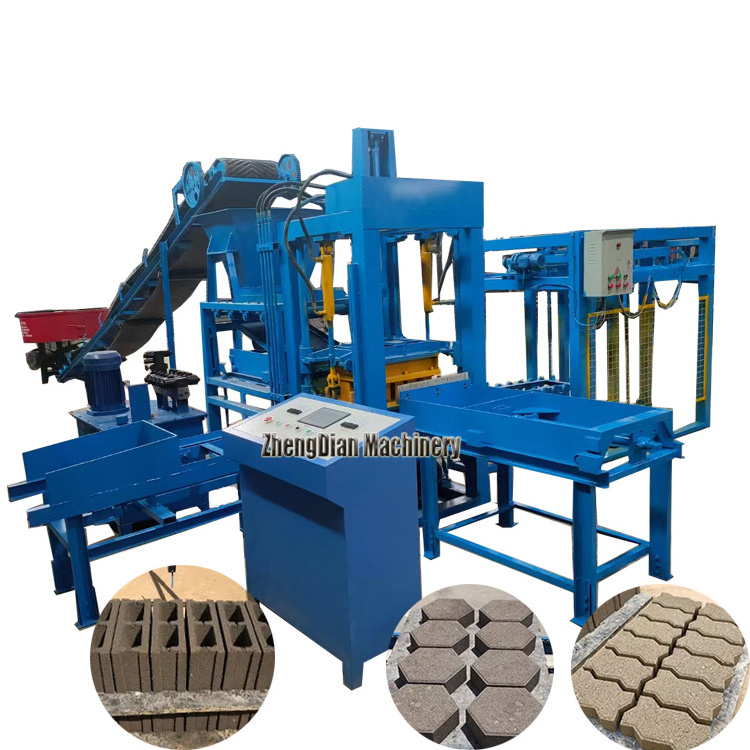

QT3-15 Fully Automatic Hydraulic Hollow Block Making Machine
QT3-15 fully automatic hydraulic block machine can make different blocks by changing mould like hollow block, solid block, paver block, interlocking block ect. The whole process is automatic, include mixer, QT3-15 block machine, stacker.
Features
*Easy operation and labor saving;
*Low investment and high benefit;
*PLC Controlled fully automatic system;
*Imported hydraulic valves; hydraulic pressure with vibration force to form together;
*Strong vibration force generated by national certified motors and patend design V-box;
*Simple horizontal secondary feeding system for lighter loading volume;
*360°rotating mixing bars, more suitable for solid bricks and pavers;
*Low investment and high benefit;
*PLC Controlled fully automatic system;
*Imported hydraulic valves; hydraulic pressure with vibration force to form together;
*Strong vibration force generated by national certified motors and patend design V-box;
*Simple horizontal secondary feeding system for lighter loading volume;
*360°rotating mixing bars, more suitable for solid bricks and pavers;
