Quick Details
-
Place of Origin:
-
Sweden
-
Power:
-
82 kw
-
Weight:
-
12700 kg
-
After Warranty Service:
-
No service
-
Brand Name:
-
Dynapac
-
Dimension(L*W*H):
-
5500mmX2130mmX2972mm
-
Drum diameter:
-
1000MM
Quick Details
-
Year:
-
2010
-
Travel Speed:
-
5 km/h
-
Grade Ability:
-
5
-
Place of Origin:
-
Sweden
-
Power:
-
82 kw
-
Weight:
-
12700 kg
-
After Warranty Service:
-
No service
-
Brand Name:
-
Dynapac
-
Dimension(L*W*H):
-
5500mmX2130mmX2972mm
-
Drum diameter:
-
1000MM

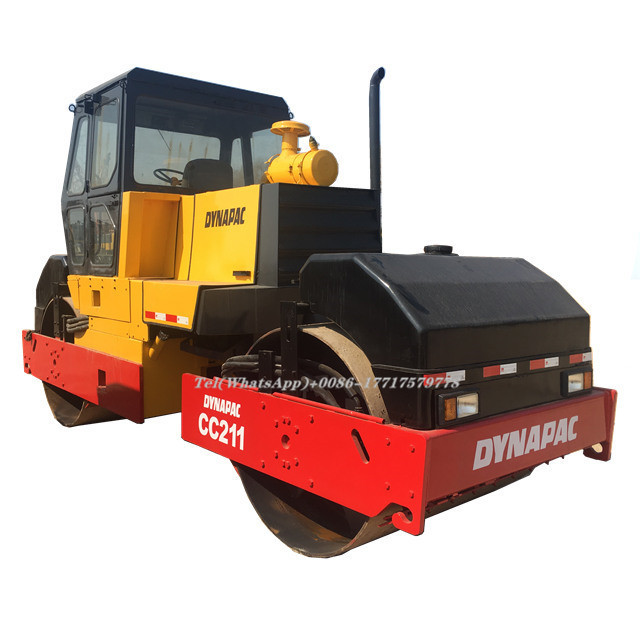

7 Ton Double Drum Dynapac CC211 Road Roller/Used Vibratory Compactor Dynapac CC211 CC421
Trade name: Used Dynapac CC211d Road Roller
Made in: Sweden
Year: 2011
Serial Number: ****786
Engine: c
hours of use: 2997 hr
Very good condition
Payment: T/T
Delivery time: Within 7 days after order confirmed.
Shippment: Container or Bulk Ship or Flat Rack or Roro Ship
We can make shippment for our customer if they don't own shipping agency, we can get cheapest shipping cost for our customer.
Selected Dimensions
| Dimensions | ||
| A. OVERALL LENGTH | 19.7 ft in | 6000 mm |
| B. OVERALL WIDTH | 7 ft in | 2130 mm |
| C. HEIGHT TO TOP OF CAB | 9.8 ft in | 2972 mm |
| D. WHEELBASE | 9.8 ft in | 2992 mm |
| E. GROUND CLEARANCE | 17.7 in | 450 mm |
Specification
| Engine | ||
| MAKE | Cummins | |
| MODEL | QSB 4.7 T3 | |
| GROSS POWER | 190 hp | 82 kw |
| POWER MEASURED @ | 2200 rpm | |
| ASPIRATION | water cooled turbo diesel with after cooler | |
| Operational | ||
| OPERATING WEIGHT | 41006 lb | 12700 kg |
| FUEL CAPACITY | 84.5 gal | 320 L |
| MAX SPEED | 6.8 mph | 5 km/h |
| TIRES *IF APPLICABLE | 23.1x26 | |
| Drum | ||
| DRUM WIDTH | 83.9 in | 2130 mm |
| DRUM DIAMETER | 61.9 in | 1573 mm |
| STATIC LINEAR LOAD | lb/in | 59.6 kg/cm |
| VIBRATION FREQUENCY 1 | 29 Hz | |
| NOMINAL AMPLITUDE - HIGH | 0.07 in | 1.8 mm |
| CENTRIFUGAL FORCE - HIGH | 71264.4 lb | 317 kN |
| VIBRATION FREQUENCY 2 | 31 Hz | |
| NOMINAL AMPLITUDE - LOW | 0.04 in | 1.1 mm |
| CENTRIFUGAL FORCE - LOW | 51930.9 lb | 231 kN |
| Dimensions | ||
| OVERALL LENGTH | 19.7 ft in | 6000 mm |
| OVERALL WIDTH | 7 ft in | 2130 mm |
| HEIGHT TO TOP OF CAB | 9.8 ft in | 2972 mm |
| WHEELBASE | 9.8 ft in | 2992 mm |
| GROUND CLEARANCE | 17.7 in | 450 mm |
