Quick Details
-
Control System Brand:
-
Beckhoff
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
5-30mm
-
Control Software:
-
DSP digital chip control
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BAOYUANTONG
-
Weight (KG):
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
BJG-1325
-
Working area(mm):
-
1300*2500
-
Machine size(mm):
-
2200*1720*1170
-
Voltage:
-
220v/50hz
-
Cooling way:
-
circulation water cooling or choose water chiller
-
Cutting speed:
-
0-36000(mm/min)
-
Engraving speed:
-
0-64000(mm/min)
-
Product name:
-
C02 Laser Engraving Cutting Machine
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-36000(mm/min)
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Beckhoff
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
5-30mm
-
Control Software:
-
DSP digital chip control
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BAOYUANTONG
-
Weight (KG):
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
BJG-1325
-
Working area(mm):
-
1300*2500
-
Machine size(mm):
-
2200*1720*1170
-
Voltage:
-
220v/50hz
-
Cooling way:
-
circulation water cooling or choose water chiller
-
Cutting speed:
-
0-36000(mm/min)
-
Engraving speed:
-
0-64000(mm/min)
-
Product name:
-
C02 Laser Engraving Cutting Machine
Product Description

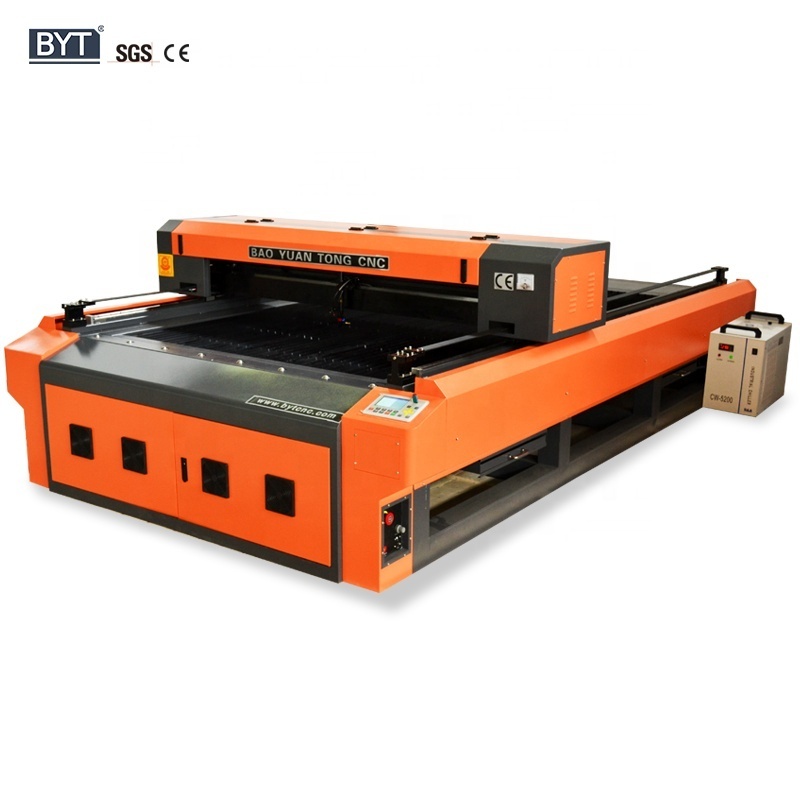

BYTCNC Certificated CO2 CNC Laser cutting and engraving machine for Acrylic Rubber MDF Frabrics engraver cutter
According different model application industry and material below :
Mainly used in: crafts, furniture, glass products, wood products, PVC, lighting, advertising, decoration, paper, mark board, stamps and seals, acrylic, bamboo products, hand straps and shoes, clothing , fabrics, etc. By adjusting the laser parameters, the machine can perform a variety of engraving and cutting. This machine has many advantages: smooth cutting, non-contact cutting, high-speed engraving, accurate engraving and good results.
|
Model
|
BJG-1325
|
BJG-1530
|
|
Laser Power
|
100W(Optional)
|
100W(Optional)
|
|
Laser Tube
|
Sealed CO2 Glass Laser Tube
|
Sealed CO2 Glass Laser Tube
|
|
Working Area(mm)
|
1300*2500
|
1500*3000
|
|
Cooling Type
|
Water Cooling
|
Water Cooling
|
|
Cutting Speed
|
0-300（mm/s）
|
0-300（mm/s）
|
|
Engraving Speed
|
0-1000（mm/s）
|
0-1000（mm/s）
|
|
Position Precision
|
±0.01mm
|
±0.01mm
|
|
Resolution
|
≤4000dpi
|
≤4000dpi
|
|
Work Temperature
|
18-30℃
|
18-30℃
|
|
Work Humidity
|
5%-95% (No-cemented Water)
|
5%-95% (No-cemented Water)
|
|
Driver Motor
|
Step Motor
|
Step Motor
|
|
Support Format
|
BMP.PLT.DST.DXF.AI
|
BMP.PLT.DST.DXF.AI
|
|
Power
|
3KW
|
3KW
|
|
Working Voltage
|
220v/50-60Hz/1P
|
220v/50-60Hz/1P
|
|
Net Weight(kgs)
|
850
|
1000
|
|
Overall Size(mm)(L*W*H)
|
3400*2070*1250
|
3900*2270*1250
|
Feature:
1.The box made up of 3mm steel plate platform makes the mechanical system and laser system work more stable.
2. Three imported linear guides and widened 3M belts to make the cutting precision and curve of the work piece more precise and smooth
3.The optical path system adopts anti-wear metal molybdenum mirror and imported focus lens, which greatly reduces the operating cost of the machine.
The CNC box is equipped with four cooling fans to ensure the stability of the machine for a long time.
5.Other Machine structure characteristics:
1) The overall planer bed ensures the accuracy of rail installation.
2) A smoke exhaust system and a high-power centrifugal fan are installed behind the machine，Strong power, good smoke exhaust effect and long life
3)Drawer-type sample box, no sample is lost after cutting, convenient and easy to take out
4)The universal wheel at the bottom allows you to easily move the position of the machine, And there are ground feet to increase the machine's balance performance.
5)Towline routing and wear-resistant high-strength cables, beautiful and extend the life of the machine.
6)The feeding auxiliary ball is set at the front of the machine, making it easier and labor-saving for customers when processing heavy materials.
6. The software is easy to operate and can preview the processed samples
7.Ruida or Trocen control system, no need to save parameters any more, plug and play, can be offline and online, easy to use, separate control system, strong anti-interference ability, very stable long-term work
8. Powerful laser tube and which also can install according to customer needs, cutting section is smooth and bright
9. High power stepper motor, the machine runs smoothly
10.Three-point dimming bolt for easier dimming
Optional Configuration
You can according your use requirements choose different laser power ,chiller method ,working table metal and nonmetal laser cutting machine.
Customer Feedback
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing & Delivery
1.After the completion of machinery production, the factory inspectors shall check and put the equipment into storage.Before the delivery of the equipment, the after-sales engineer shall conduct secondary inspection and ensure the quality of the machine meets the customer's requirements
2.Clean the whole machinery , protect the parts that need oil, and check the related parts again .
3. Anti-collision package edge: All parts of the machine are covered with some soft materials.
Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time and money.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
