Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2350*840*1850
-
Weight:
-
1700 KG
-
Marketing Type:
-
Hot Product
-
Product name:
-

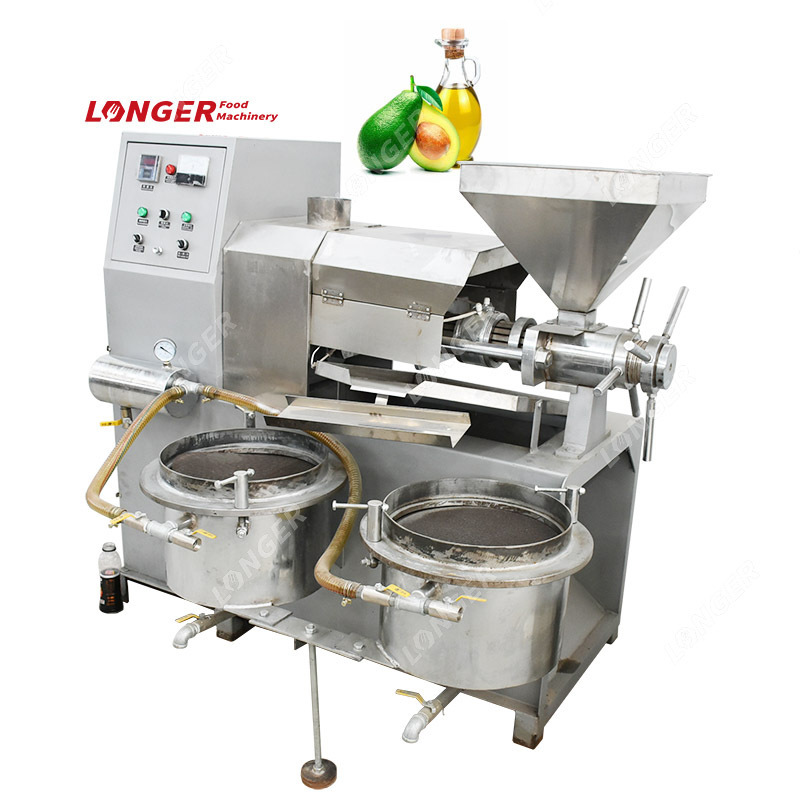

Press Coconut Plant Olive Oil Machine
-
Application:
-
Making Hot Avocado Mill Palm Oil
-
Function:
-
Palm Oil Extraction Machine
-
Capacity:
-
10-12t/24h
-
Screw Diameter:
-
130mm
-
Keywords:
-
Avocado Oil Extraction Machine
-
Useage:
-
Plant Oil Extraction Machine
-
City:
-
Zheng Zhou
Quick Details
-
Production Capacity:
-
10-12t/24h Plant Oil Extraction Machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Longer Olive Oil Machine
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2350*840*1850
-
Weight:
-
1700 KG
-
Marketing Type:
-
Hot Product
-
Product name:
-
Press Coconut Plant Olive Oil Machine
-
Application:
-
Making Hot Avocado Mill Palm Oil
-
Function:
-
Palm Oil Extraction Machine
-
Capacity:
-
10-12t/24h
-
Screw Diameter:
-
130mm
-
Keywords:
-
Avocado Oil Extraction Machine
-
Useage:
-
Plant Oil Extraction Machine
-
City:
-
Zheng Zhou
Product Description
(please enlarge the right pic to check the oil output rate for different materials.)
Including:
Main Oil press machine, oil filter, air compressor and Fried feeder whole matching equipments.
Squeezing range:
all oil-bearing crops.Such as sunflower seeds,peanuts, soybean, rapeseed, sesame seed, walnut, almond, multiple cro pping oil seeds, cottonseed, prickly ash seed, phoenix tree seed, beans, peas, garbanzo beans, and seeds of argan,nuts of apricot and so on, castor etc.
Machine's Technical Data
|
Model
|
LGZX80
|
LGZX100
|
LGZX120
|
LGZX130
|
LGZX165
|
|
Shaft Diameter
|
Dia 80mm
|
Dia 100mm
|
Dia 120mm
|
Dia 130mm
|
Dia 165mm
|
|
Screw Speed
|
47r/min
|
38r/min
|
37r/min
|
32r/min
|
32r/min
|
|
Host Machine
|
5.5KW
|
7.5KW
|
11-15KW
|
15-18.5KW
|
30KW
|
|
Vacuum Pump
|
0.75KW
|
1.5KW
|
1.5KW
|
1.5KW
|
2.2KW
|
|
Heater
|
2.2KW
|
2.2KW
|
3.0KW
|
3.0KW
|
3.0KW
|
|
Capacity
|
65-130Kg/h
|
140-200Kg/h
|
200-300Kg/h
|
300-500Kg/h
|
500-700Kg/h
|
|
Weight
|
880Kg
|
1250Kg
|
1500Kg
|
1800Kg
|
2500Kg
|
|
Machine' size
|
1500*1300*1550
|
1700*1300*1650
|
2050*1300*1800
|
2100*1300*1800
|
2620*1350*1900
|
Machine's Structure
|
1: Temperature ragulator
|
7: Feed inlet
|
|
2: Smoke vent
|
8: Adjustment section
|
|
3: Power distribution cabinet
|
9: Heating element
|
|
4: Oiling position
|
10:Oil out part
|
|
5: Reducer
|
11: Press part
|
|
6: Motor
|
12: Vacuum oil filter
|
Our Machine's Factory Pictures
