- Product Details
- {{item.text}}
Quick Details
-
Walkie Talkie Type:
-
CB radio
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
YJT
-
Model Number:
-
CB-27
-
Dimensions:
-
123x158x44mm
-
Frequency Range:
-
26.965-27.405MHz
-
Product Name:
-
CB-27 Car CB Radio
-
Output Power:
-
4W
-
Modulation Mode:
-
AM/FM
-
Frequency Tolerance:
-
±5.0ppm
-
Input Voltage:
-
12/24V
-
Frequency Control:
-
PLL Synthesizer
-
Operating Temperature Range:
-
-20℃~+50℃
-
Antenna Connector:
-
UHF, SO-239
-
Weight:
-
Approx 660g
-
OEM:
-
Yes
Quick Details
-
Talk Range:
-
10-20KM
-
Terminal style:
-
Handheld
-
Storage Channel:
-
40 Channels
-
Walkie Talkie Type:
-
CB radio
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
YJT
-
Model Number:
-
CB-27
-
Dimensions:
-
123x158x44mm
-
Frequency Range:
-
26.965-27.405MHz
-
Product Name:
-
CB-27 Car CB Radio
-
Output Power:
-
4W
-
Modulation Mode:
-
AM/FM
-
Frequency Tolerance:
-
±5.0ppm
-
Input Voltage:
-
12/24V
-
Frequency Control:
-
PLL Synthesizer
-
Operating Temperature Range:
-
-20℃~+50℃
-
Antenna Connector:
-
UHF, SO-239
-
Weight:
-
Approx 660g
-
OEM:
-
Yes

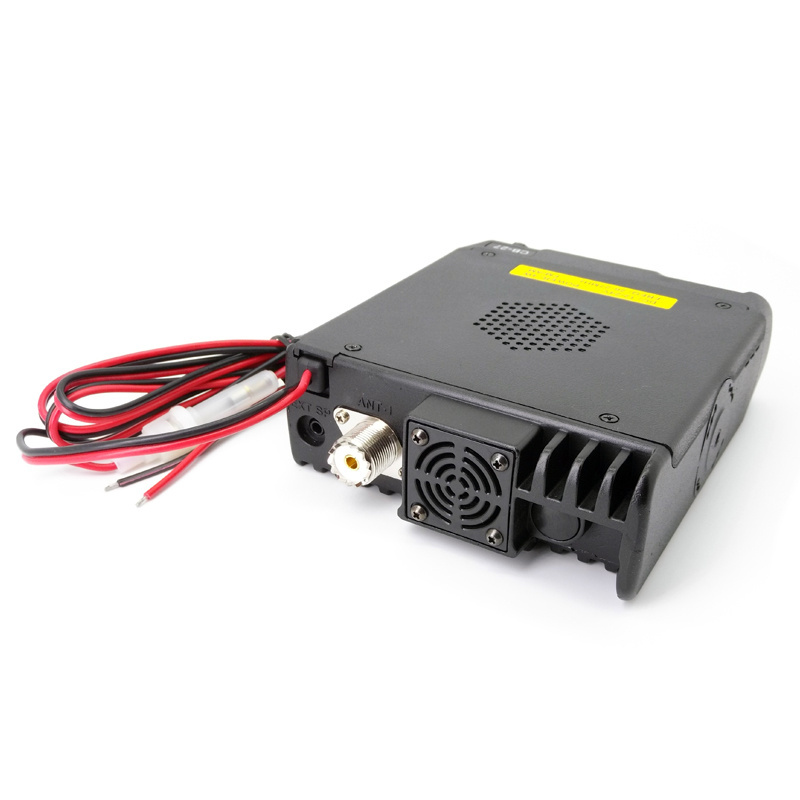

Best Quality 2 Way Ham Radio Set CB QYT CB-27 Radio Base Station
FUNCTION AND FEATURES:
1. TFT LCD screen (colors)
2. Power supply 12 or 24V
3. 4 Watts AM/FM
4. 8 memory channels
5. Channel or frequency display
6. 6 programmable keys
7. CTCSS/DCS encoder/Decoder
8. DTMF encoder
9. Automatic squelch (ASQ)
11. Customizable manual squelch
12. Setting the receive gain (RF Gain)
13. Automatic channel search (Scan)
14. Dual watch function (DW)
15. Programmable beep function
16. Channel 9/19
17. NB/ANL filters
18. Hi-cut filters
19. Overvoltage protection
20. TOT (Time out timer)
21. Backlight adjustment
22. Automatic power on
23. Keylock
24. Mute function
25. Microphone with UP/DW buttons
26. Programmable by computer
|
General |
|
|
Modulation Mode |
AM/FM |
|
Frequency Range |
26.965-27.405MHz |
|
Number of channels |
40 |
|
Frequency Tolerance |
±5.0ppm |
|
Input Voltage |
12/24V |
|
Dimensions ( in mm) |
123(W)x158(D)x44(H) |
|
Weight |
Approx 660g |
| Frequency Control | PLL Synthesizer |
| Operating Temperature Range | -20℃~+50℃ |
| Antenna Connector | UHF, SO-239 |
|
Transmitter |
|
|
Output power |
4 Watts FM/AM |
|
Transmission Interference |
Inferior to 4nW(-54dBm) |
|
Frequency Response |
300-3000Hz |
|
Modulated Signal Distortion |
Inferior to 5% |
|
Output Impedance |
50 ohms |
|
Receiver |
|
|
Sensitivity |
Less than 1uV for 10dB(S+N)/N |
|
Image Rejection |
70dB |
|
Adjacent Channel Rejection |
60dB |
|
Anjacent channel selectivity |
65/60dB |
|
IF Frequencies |
1st 10.695MHz, 2nd 455KHz |
|
Automatic Gain Control(AGC) |
Less than 10dB change in audio,
Output for inquts from 10 to 50000uV |
| Squelch | Less than 1uV |
|
Audio Output Power |
3 Watts into 8 ohms |
|
Frequency Response |
300-3000Hz |
Warranty:
1. Ensure your products are packed well.
2. 100% QC inspection before shipment.
3. 12 months for radio, 6 months for accessories. Excludes damaged by human.
4. Quality service and after-sales for all our customers.
Shipping & Delivery:
Payment:
T/T, credit card, PayPal, Western Union and MoneyGram are all supported!
Customer Service:
1.OEM&ODM service offered
2.Sample's fee can be refund after order reached 1000sets.
1. Q: What's the MOQ?
A: 1 pc only.
2. Q: Can you offer free sample to test?
A: In general, sample cost should bear by new clients. Bue the sample cost will be refund when the order reach 1000 stes.
3. Q: Do you accept customized?
A: Yes, OEM and ODM services are all supported.
4. Q: When can you ship the item?
A: 1-3 days for sample order, 3-5days for bulk order if we have stock.
5. Q: When can i find tracking in Internet?
A: Usually, we will give you the tracking number and you can find the information on Internet in 2days.
6. Q: What type plug do you offer?
A: Normally EU and USA type are free. UK and AU need extra $0.5.
