Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JF MIX
-
Motor Power:
-
2.2kw
-
Charging Capacity:
-
5300 L
-
Reclaiming capacity:
-
3500 L
-
Speed of Mixing Drum:
-
13r/min
-
Water Supply Mode:
-
Hydraulic Driven Water Pump
-
Working Cycle Period:
-
10-15min
-
Discharge Way:
-
Reverse-Rotation
-
Outline Dimension:
-
7800 x 2600 x 3300 mm
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
3620 kg
-
Product name:
-
Cbm Truck Machine Car / Mezcladora De Concreto / Betonmischer Self Loa
-
Bucket capacity:
-
0.5m3
-
Dumping Height:
-
3200 mm
-
Transmission:
-
Power Shift (Automatic)
-
Engine:
-
YUNNEI
-
Engine Model:
-
YN27
-
Rated Power:
-
42 kW
-
Tire:
-
20.5/70-16
-
Operating weight:
-
3700 kg
Quick Details
-
Mixing Power:
-
85 kW
-
Productivity:
-
Other
-
Applicable Industries:
-
Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JF MIX
-
Motor Power:
-
2.2kw
-
Charging Capacity:
-
5300 L
-
Reclaiming capacity:
-
3500 L
-
Speed of Mixing Drum:
-
13r/min
-
Water Supply Mode:
-
Hydraulic Driven Water Pump
-
Working Cycle Period:
-
10-15min
-
Discharge Way:
-
Reverse-Rotation
-
Outline Dimension:
-
7800 x 2600 x 3300 mm
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
3620 kg
-
Product name:
-
Cbm Truck Machine Car / Mezcladora De Concreto / Betonmischer Self Loa
-
Bucket capacity:
-
0.5m3
-
Dumping Height:
-
3200 mm
-
Transmission:
-
Power Shift (Automatic)
-
Engine:
-
YUNNEI
-
Engine Model:
-
YN27
-
Rated Power:
-
42 kW
-
Tire:
-
20.5/70-16
-
Operating weight:
-
3700 kg
Product Description

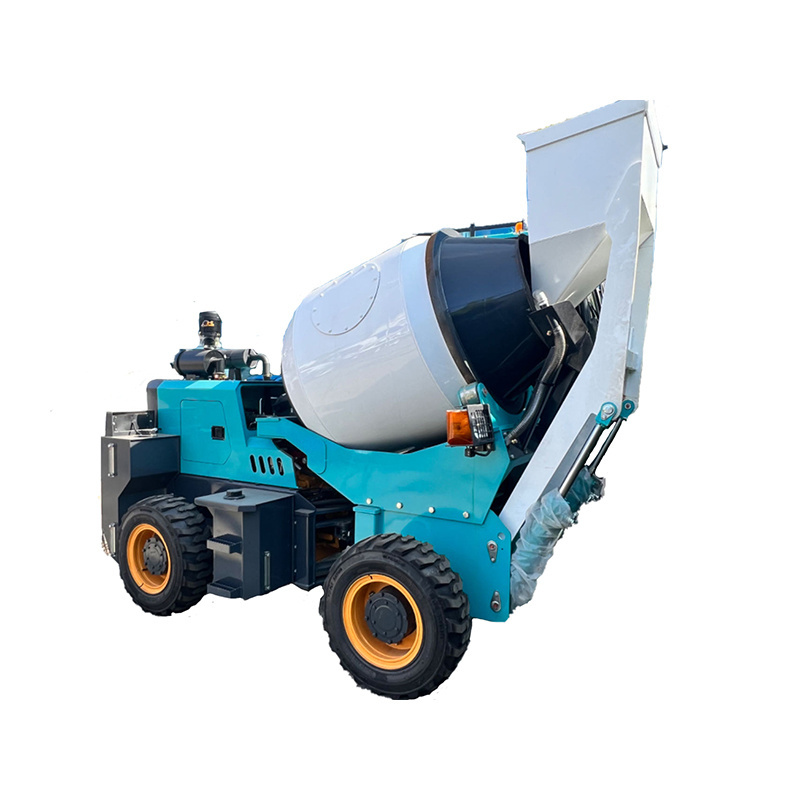

JF MIX Self loading concrete mixer
1. JF MIX Self-loading mixer truck, one machine with
multiple functions
Bucket downturn function, realize the loading function, truly realize the multi-purpose function of one machine
2. JF MIX Self-loading mixer truck,
liberate productivity
Fully automatic mixer truck integrates loading, mixing, transportation and unloading
3. JF MIX Self-loading mixer truck,
unloading is more thorough
The forward-tilt unloading function makes unloading more thorough and faster
|
Item
|
0.5m³
|
0.8㎡
|
|
Overall Dimensions (L*W*H)
|
4200*1600*2350
|
3389*2876*2295
|
|
Wheelbase(mm)
|
1500
|
1731
|
|
Curb Weight (kg)
|
1860
|
3620
|
|
Drive Form
|
Belt drive
|
Torque converter drive
|
|
Maximum Speed (km/h)
|
20
|
30
|
|
Maximum Gradeability
|
30°
|
30°
|
|
Maximum Turning Radius (mm)
|
4000
|
3750
|
|
Maximum Ground Clearance (mm)
|
150
|
180
|
|
Rated Power
|
16KW
|
36.8kw
|
|
Mixing Drum Geometrical Capacity
|
700L
|
1450L
|
|
Concrete Yield
|
0.5m³/Batch
|
0.8m³/Batch
|
|
Oil
|
3.5L
|
12L
|
|
Fuel Tank
|
18L
|
56L
|
Advantage Display
The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self-loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 112 m³ of concrete), and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.
More Options
Self Loading Concrete Mixer
is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUCHAI ,85 kW Diesel engine and 4 wheel drive plus 2 wheel steering, the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing unit is slewing hydraulically through 270° for high discharge over 2 m on the four sides of the vehicle.
Our Company
Established in 1992, Laizhou Jufeng Machinery Co., Ltd.
is a national heavy equipment manufacturing enterprise supported by the Chinese government. The main products produced include self-loading concrete mixer trucks with output capacity from 0.6 cubic meters to 6.5 cubic meters, wheel loaders with payloads from 1 ton to 5 tons, backhoe loaders, rough terrain forklifts, crawler excavators, concrete mixers pump ctcThc company has passed ISO9001, ISO45001, ISO14001, and other certifications. Most of the products have relevant patent certificates, and related products have also passed CE certification. So far we have more than 200 distribution agents, 150 service agents, and 10 spare parts warehouse centers in China, and have established a relatively complete after-sales service system. Products have been exported to more than 30 countries and regions such as Southeast Asia. South America, Africa, Europe, and Oceania. NorthAmerica.Central Asia. and the Middle East.etc
