Quick Details
-
Brand Name:
-
G5
-
Model Number:
-
E-010-OPS-N
-
Warranty:
-
12 Months
-
Product Name:
-

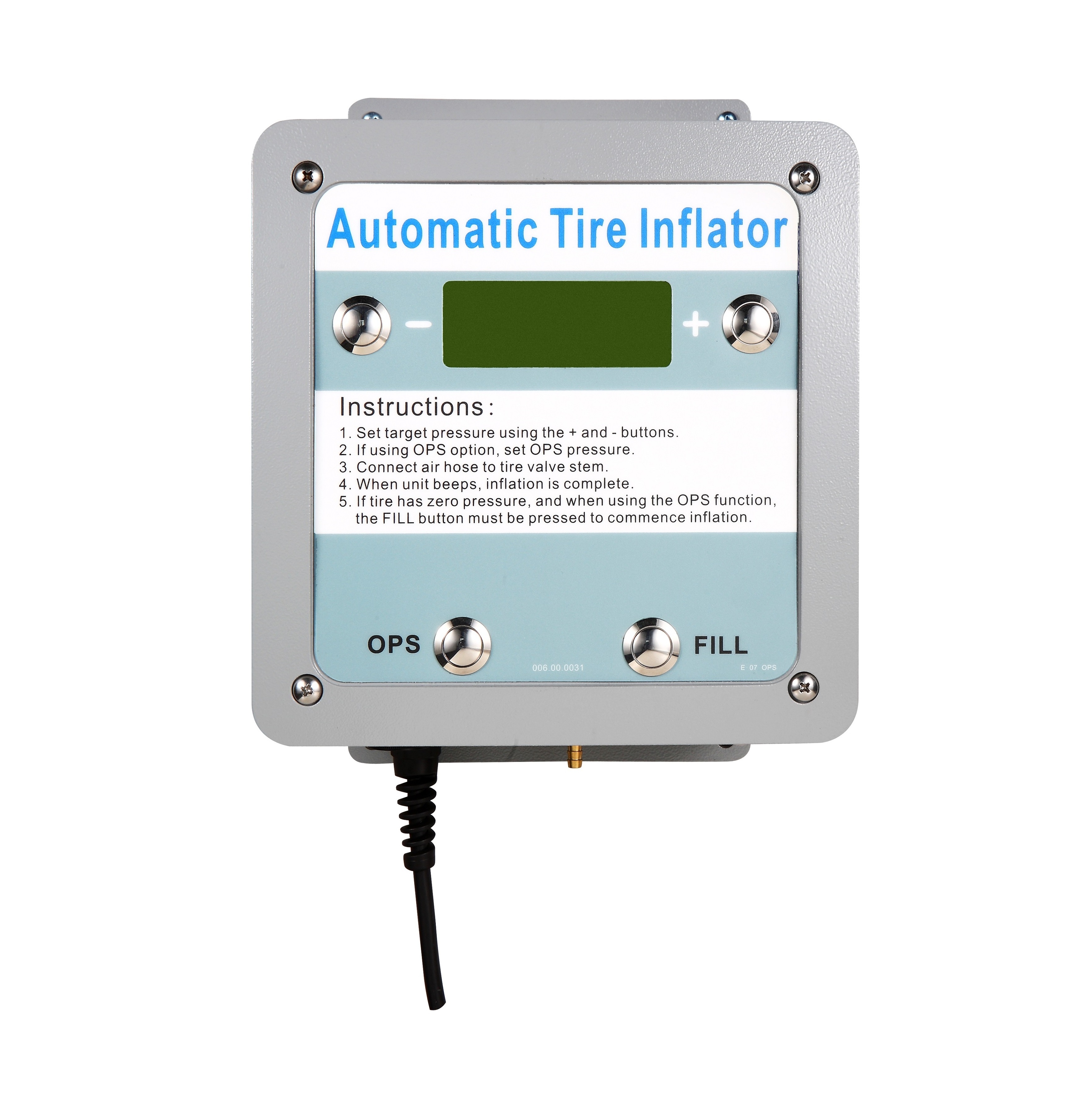

Wall-Mounted Automatic Digital Tyre Inflator
-
Application:
-
Workshop and Tyre Shop
-
Suit For:
-
Motorcycle/Car/Truck/Light Truck
-
Air Outlet:
-
1
-
Certification:
-
CE
-
Feature:
-
Digital Automatic Tyre Inflation/Deflation
-
Usage:
-
Tyre Inflation
-
Material:
-
Iron Cabinet
-
Display:
-
Backlight LCD Display
-
Inflation Pressure Range:
-
5-145PSI/0.3-10bar/35-1000kPa
Quick Details
-
Car Fitment:
-
LINCOLN
-
Size:
-
290*230*120(mm)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G5
-
Model Number:
-
E-010-OPS-N
-
Warranty:
-
12 Months
-
Product Name:
-
Wall-Mounted Automatic Digital Tyre Inflator
-
Application:
-
Workshop and Tyre Shop
-
Suit For:
-
Motorcycle/Car/Truck/Light Truck
-
Air Outlet:
-
1
-
Certification:
-
CE
-
Feature:
-
Digital Automatic Tyre Inflation/Deflation
-
Usage:
-
Tyre Inflation
-
Material:
-
Iron Cabinet
-
Display:
-
Backlight LCD Display
-
Inflation Pressure Range:
-
5-145PSI/0.3-10bar/35-1000kPa
Product Description
Specification
| E-010-OPS-N Wall-Mounted Automatic Digital Tyre Inflator |
| Main Feature |
| 1. Rugged and durable diecast aluminium enclosure |
| 2. Fully automated, fully programmable, micro-processor controlled conversion system |
| 3. Suit for: Motorcycle, Car, Light Truck, Bus * |
| 4. Indoor |
| Technical Data |
| Power Requirement: 100-240Vac 50/60Hz |
| Power Consumption: 10VA |
| Operating Temperature Range: -20°C/-4°F to 70°C/158°F |
| Max Inlet Air/Nitrogen Supply: 160PSI /11bar /1100kPa |
| Operating Range: 5-145PSI/0.3-10bar/35-1000kPa |
| Over Pressure Setting Range: 0-29PSI/0-2.0bar/0-200kPa |
| Accuracy: ±1PSI/0.07bar/7kPa |
| Resolution: 1PSI/0.1bar/5kPa |
| Units of Measurement: PSI/bar/kPa |
| Dimensions (Height*Width*Depth): 290mm*230mm*120mm 11.4"*9.1"*4.7" |
| Net Weight: 4kg/8.8lbs |
| Gross Weight: 6.5kg/14.3lbs |
| Packing Size (Height*Width*Depth): 170mm*500mm*290mm |
| Specification |
| 1. E-010-OPS-N: Adjustable over pressure setting (OPS) |
| 2. Auto-start inflation |
| 3. Automatic zero drift adjustment |
| 4. Remain at last setting |
| 5. Comprehensive diagnostics and error reporting |
| 6. Audible and visual end of the cycle signal indicators |
| 7. Large backlight LCD display |
| 8. Vandal resistant mechanical switches |
| 9. Suits Standard nitrogen bottle/Direct nitrogen supply from generator/Air compressor |
| 10. 1 Nos.*10M/32.8ft standard hose with single clip-on open type chuck |
|
11.Options available:
Operating range: 5-174PSI/0.3-12bar/35-1200kpa With ON/OFF switch |
