- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
none
-
Dimension(L*W*H):
-
made to order
-
Weight:
-
option, 150-200g/m2
-
Model Name:
-
AC07 Carbon Filter Mesh
-
Material:
-
Carbon, Polyester
-
Media:
-
activated carbon
-
Color:
-
black
-
Pore Size:
-
2mm
-
Carbon Content:
-
30-50%
-
Usage:
-
Machine
-
Application:
-
Air
-
Filter Class:
-
Pre Filter
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
RoHs
Quick Details
-
Core Components:
-
carbon
-
Efficiency:
-
efficiency
-
Porosity:
-
2mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
none
-
Dimension(L*W*H):
-
made to order
-
Weight:
-
option, 150-200g/m2
-
Model Name:
-
AC07 Carbon Filter Mesh
-
Material:
-
Carbon, Polyester
-
Media:
-
activated carbon
-
Color:
-
black
-
Pore Size:
-
2mm
-
Carbon Content:
-
30-50%
-
Usage:
-
Machine
-
Application:
-
Air
-
Filter Class:
-
Pre Filter
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
RoHs

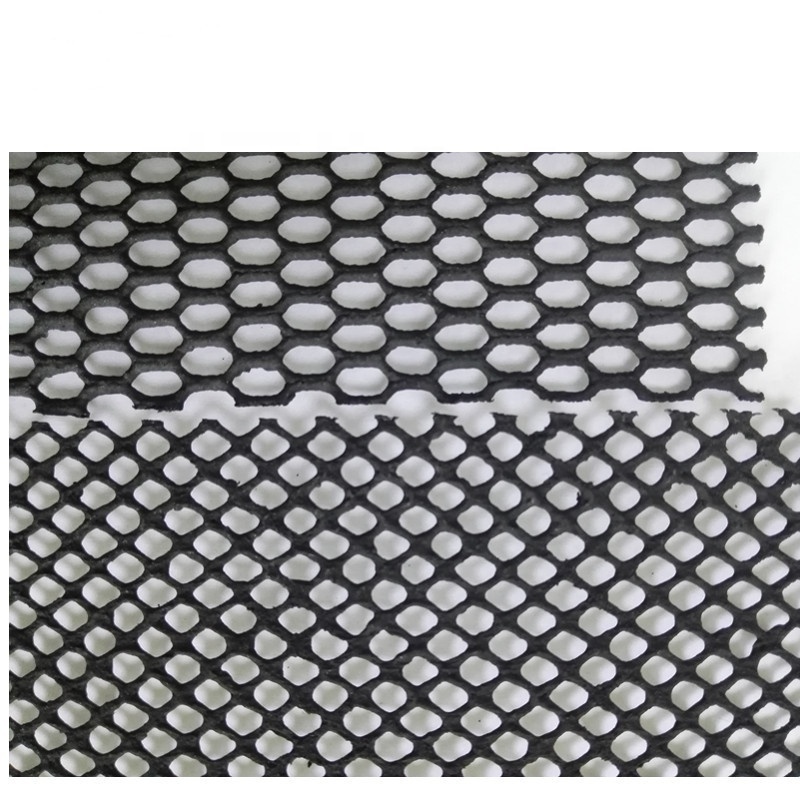

Pre Filter Commercial Air Conditioner Activated Carbon Air Filter Mesh
Usage:
-
air purification, for car or home;
-
Organic solvent fitration
-
Chemical liquid, electroplate liquid filtration
-
A variety of acid and alkaline solution, washing filter
-
Air purification, carbon paper corrugated
|
Weight(g/m2 ) |
60-650 |
|
Carbon Content(g/m2 ) |
≥10%-80% |
|
Thickness(mm) |
0.5-1.5 |
|
Filter Efficiency(Grain Size 5μm) |
≥92% |
|
Dimethyl Benzene Removal Rate |
≥95% |
|
Aire Filtration Rate ( L/m2 *S ) |
1100 |
|
Pressure Difference(Pa)(0.3m/s) |
50 |
|
Width(m) |
1.0-1.5 |
ACF felt has attracted attention from various circles for its rich micropore, high specific surface area and excellent adsorptivity. It demonstrates specific functions in different applications. In addition to fine adsorptivity, it has strong reducing capacity. The ACF felt has great specific area, high adsorption capacity; excellent adsoptivity and fast desorption, and fine purifying effect. What's more, it can be regenerated and re-utilized.
Product Usage:
(1) Air purification : Activated Carbon Filter Felt can be used to make up air filter which is able to absorb and filtrate the harmful gas in the air like O3, SO2, NO2 and others effluvium mephitis or fume.
( 2) Water purification: Activated Carbon Filter Felt is able to clean the hazardous material of water such as organic matter or heavy-metal ion, fustiness smelt, bacteria residual chlorine etc. It can be used in drinking industry, beverage, beer, medicine, refine sugar and others vocation to purify water. Besides, it also can be used in the production of decolour craft, blue ice or drinking water.
(3) Polluted water treatment: Activated Carbon Filter Felt can be used in treating water contaminated by various kinds of pollution sources, such as chemical industry, electroplating, metallurgy, printing and dyeing, medical treatment and daily life. It can remove organic materials, bacteria, organic dye in the water, especially the poison and harmful waste water containing high valence metal ion.
(4) Recovery of Organic Solvent: Activated Carbon Filter Felt is applied to adsorption and restoring towards benzene, ketone, fat, spirit and other types of organic solvent. At the same time, it makes environment improvement.
(5) Sanitary precaution: Activated Carbon Filter Felt can be used to make up gas mask, gas defence or anti-dust respirator, gas-protection clothing and others. It takes a preferable adsorptive and bridging effect on the toxic gas. It also benifit for sealing and obstructing in the radioactive places or for the radiation equipment covering and other engineering.
( 6) Medical treatment and biological engineering: Activated Carbon Filter Felt can be used to make artificial kidney, hepatic sorbent, traumatic bandage used for human body and various kinds of medical drug sundries for degermation, deodorizing material. It also can be applied to produce blood filter of human body or demoenzyme used on biological engineering.
(7) Daily Life: Activated Carbon Filter Felt can be used to make up of the icebox deodorization, fruit and vegetable refreshing, domestic water purifier, cigarette filter tip, antigas prophylaxis insole, hygiene shorts and other supplies.
(8) Activated Carbon Filter Felt can be used in thermal insulation materials for high-temperature resisting and the ablation resistant materials.
|
Unit Price |
FOB, EXW or CIF |
|
Sample time |
2-3 working days. |
|
Lead time |
7-15 days after confirmed the order, based on the QTY |
|
Payment |
T/T, L/C, Escrow |
|
Quality |
ROHS certificate |
