Quick Details
-
Plating:
-
Nickel/gold
-
Insulator:
-
PTFE/Plastic
-
Material:
-
Copper
-
Impedance:
-
50Ω
-
Temperature Range:
-
-55~+155°C (PE Cable -40~+85°C)
-
Frequency Range:
-
DC-3GHz
-
Withstanding Voltage:
-
1500V r.m.s at sea level
-
Working Voltage:
-
500Vr.m.s at sea level
-
Durability:
-
≥ 500(cycles)
-
Customize:
-
Supported
Quick Details
-
Brand Name:
-
BJDZ
-
Place of Origin:
-
China
-
Model Number:
-
SMA-KK-Surge
-
Plating:
-
Nickel/gold
-
Insulator:
-
PTFE/Plastic
-
Material:
-
Copper
-
Impedance:
-
50Ω
-
Temperature Range:
-
-55~+155°C (PE Cable -40~+85°C)
-
Frequency Range:
-
DC-3GHz
-
Withstanding Voltage:
-
1500V r.m.s at sea level
-
Working Voltage:
-
500Vr.m.s at sea level
-
Durability:
-
≥ 500(cycles)
-
Customize:
-
Supported
☀ We focus on coaxial connectors.
☀ Our custom RF cable connectors are built-in and shipped worldwide.
☀ RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .
☀ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect
☀ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.
☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
|

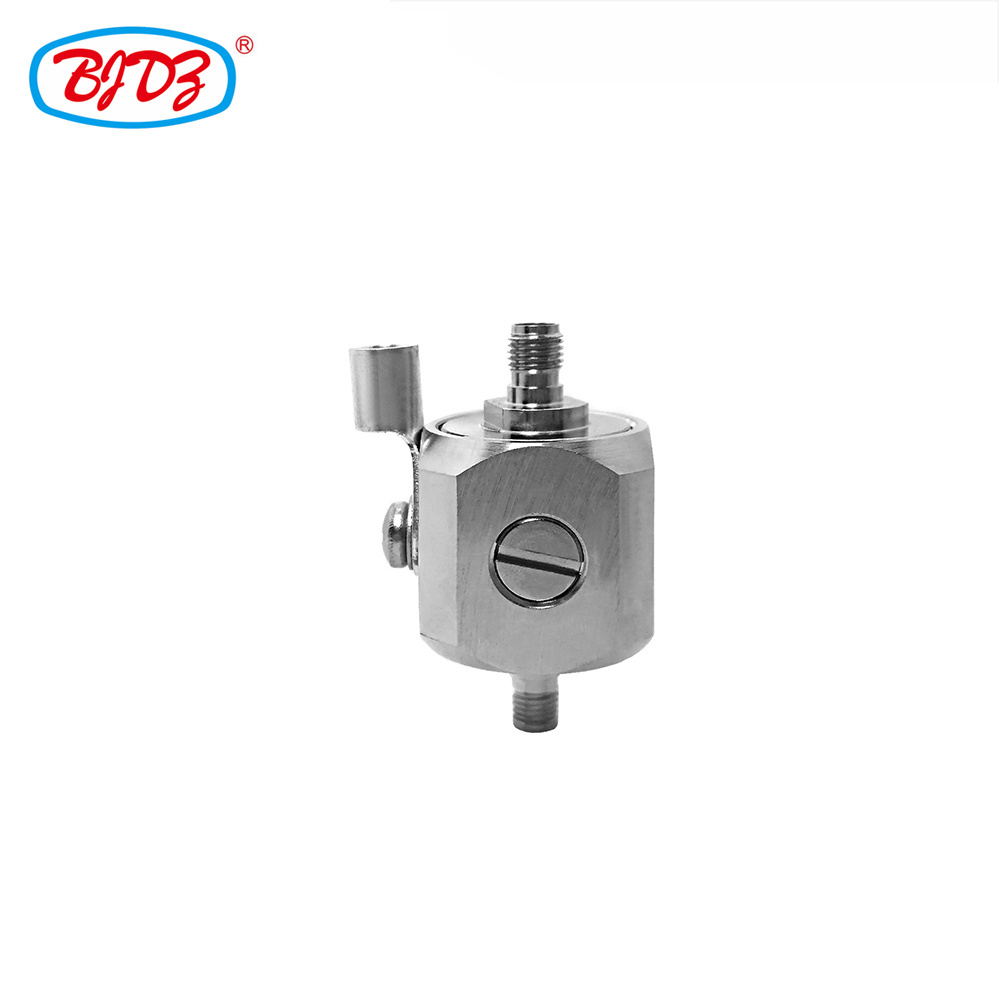

Factory Square Coaxial Lightning Arrestor Surge Protector SMA Female to SMA Female Surge Arrestor Lightning protection Device
|
|
|
|
Category
|
Specifications
|
|
|
Type
|
Factory Square Coaxial Lightning Arrestor Surge Protector SMA Female to SMA Female Surge Arrestor Lightning protection Device
|
|
|
Freq Range
|
DC-3GHZ
|
|
|
Contact resistance
|
Inner conductor ≤ 1.5m ΩOuter conductor ≤ 1m Ω
|
|
|
Discharge current capacity(kA@8/20μ S)
|
10
|
|
|
Protection Levelv
|
90 V/230V/380V/600V
|
|
|
Impedance
|
50 OHMS
|
|
|
Max Power
|
50 W
|
|
|
Ingress Protection
|
IP 67
|
|
|
Grounding Screw/LUG
|
Y
|
|
|
Body
|
Brass
|
|
|
Contacts
|
Bronze
|
|
|
ISO-9000 Certified
|
Yes
|
|
|
VSWR
|
<1.15:1
|
|
|
Operating Temp (degrees C)
|
(-40 to +85) C
|
|
|
RoHS
|
Yes
|
|
|
Factory Square Coaxial Lightning Arrestor Surge Protector SMA Female to SMA Female Surge Arrestor Lightning protection Device
|
|
|
A : We are the manufacture focused on manufacturing rf connector, coaxial cables, antenna, lightning arrester since 1991!
2. Q: How long will the delivery take?
A : About 7-10 days.(We have a large stock.)
3. Q : How do your company deal with the problem on quality？
4. Q: Can you send sample for us to test?
A: Of Course! You can check the quality of our products by ordering samples.
5. Q: What kind of payment term you accept?
A: Paypal, western union, alipay, T/T, Bank transfer, Credit Card, GOOGLE_PAY, APPLE_PAY, etc.
6. Q: Is customized service availble?
A: Yes, we can do ODM / OEM. If you need customized service please contact me.
7. Q: The price of your product is too high, can you give me discount?
A : Did you know our product ? If you dont know much about it , you cant judge whether our products are expensive or not.
Actually, the price is reasonable , which product is cheaper than our product？ In the shared market , our products in same grade are not cheaper than us. The quality of our product is match with the price.
8. Q : Can you guarantee the quality of product ?
A : Sure , high quality give us confidence to do business with your company . Long-termcooperation is what we need most instead of short-term cooperation.
