Quick Details
-
Place of Origin:
-
Fujian, China
-
Structure:
-
impeller pump
-
Usage:
-
Water
-
Theory:
-
Electromagnetic Pump
-
Voltage:
-
12V DC
-
Amps:
-
12.0A Max
-
Certification:
-
CE, ISO9001:2008, RoHS, RoHS, ce
-
Flow Rate:
-
45LPM/12GPM
-
Run Dry:
-
Run Dry Capability
-
Protection:
-
Ignition/Thermally Protected
-
Inlet/Outlet Ports:
-
1.5" (39mm) quick connector or thread fitting
-
type:
-
Impeller pump
Quick Details
-
Pressure:
-
not pressure
-
Brand Name:
-
HYDRULE
-
Model Number:
-
HYMP2-120-01
-
Place of Origin:
-
Fujian, China
-
Structure:
-
impeller pump
-
Usage:
-
Water
-
Theory:
-
Electromagnetic Pump
-
Voltage:
-
12V DC
-
Amps:
-
12.0A Max
-
Certification:
-
CE, ISO9001:2008, RoHS, RoHS, ce
-
Flow Rate:
-
45LPM/12GPM
-
Run Dry:
-
Run Dry Capability
-
Protection:
-
Ignition/Thermally Protected
-
Inlet/Outlet Ports:
-
1.5" (39mm) quick connector or thread fitting
-
type:
-
Impeller pump

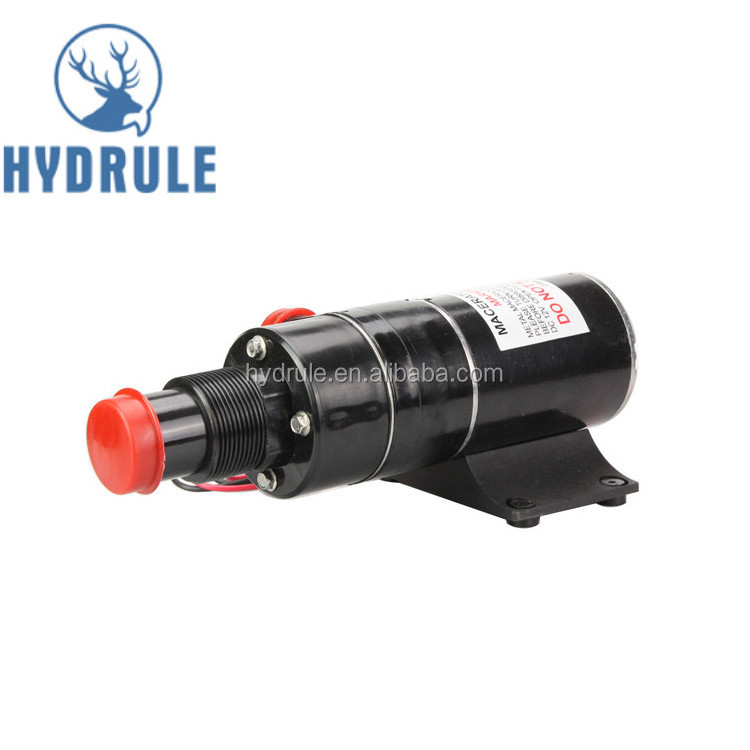

Hydrule 12V Macerator sewage Water Waste Pump marine toilet pump 49 LPM 12GPM
Features & Benefits
Dual Blade and Housing
Seamless Shell Design
Thermally Protected Motor
High Quality Efficient Motor
Run Dry Capability
Typical Application :
RV & Campers
Boats & Mobile Kitchenware
Industrial
Marine
Pump:
|
Liquid Temperature |
140°F (60°C) Max. |
|
Priming Capabilities |
Not needed flooded suction |
|
Power |
12 amps max current draw |
|
Max Pressure |
Not needed |
|
Inlet/Outlet Ports |
Inlet: 1.5” (39mm) quick connector or thread fitting, Outlet: 1" hose barb |
|
Weight |
4.9 lbs (2.24 kg) |
Motor :
|
Type |
High quality seamless design that is thermally protected |
|
Leads |
Wire leads |
|
Temperature Limits |
140°F (60°C) |
Drawing :
Impeller :
(3.1") 80 mm
Technical Data :
|
Model |
GPM/LPM |
Dimension |
Impeller |
Ports |
Lead |
Molded |
Voltage |
Max Draw(A) |
|
HYMP1-120-01 |
12/45.0 |
13.98"x5.24"x4.33" 355x133x110mm |
Rubber & copper |
1.5"Hose Barb 1" Hose Barb |
Yes |
N/A |
12v |
12.0 |
|
HYMP2-120-01 |
12/45.0 |
13.98"x5.24"x4.33" 355x133x110mm |
Rubber & copper |
1.5"Hose Barb 1" Hose Barb |
Yes |
N/A |
24v |
7.0 |
1. Q: Are you a manufacturer or trading company?
A: : We are a manufacturer that specialized in diaphragm water pump and bilge pumps , our products have abtained the SGS-CE and RoHS certificate.
2. Q:What's your products MOQ?
A: Different model has diffe re nt MOQ, pls check with salesman.
3. Q: How can I get some samples?
A: Usually we can’t offer free sample, pls pay the sample and express fee, the
sample costing can be deducted in your first large order.
4. Q: What's your delivery time?
A: 1.The samples can be sent to you within 3-5days .
2.The batch order can be shipped to you within 5-15days after order confirmation
5 . Q:What's your warranty & after service policy?
A: 12 Months for all products, and some products warranty is 24months. Usually offer 1% spare parts free to you
6. Q: How many qty so I can get your OEM service with myself brand name?
A: Different Models have different MOQ requirement, pls consult our salesman.
7. Q: What's the payment can you accept?
A: Usually we accept T/T ,Western Union, PayPal and Alipay, also RMB transfer in China mainland.
1. All enquiries will be valued and replied with 24 hours;
2.we will give you any professional suggest, according to different market and products for new customers;
3. Our Inspect Department will test each batch to ensure high quality, with material test & performance test;
4.Quick & efficient delivery to guarantee your inventory;
5.Good package to protect the products;
6.Your any feedback will be highly appreciate to make sure we can do better and better;
7.Accept OEM & ODM, our strong design team support custom products according to customer requirement;
8.Sample or small order is welcome;
