Quick Details
-
Brand Name:
-
SUMA or OEM
-
Model Number:
-
Bwc13168
-
Car Make:
-
---
-
Application:
-
power transmis-sion equipments
-
Maximum Width:
-
21.0mm
-
Inside shaft Diameter:
-
72.217mm
-
Precision:
-
P6
-
OEM:
-
Accept
-
Delivery:
-
10-15 days
-
Package:
-
single box or as your requirements
-
Port:
-
Shanghai ; Ningbo
-
Outside Shaft Diameter:
-
88.882mm
Quick Details
-
OE NO.:
-
---
-
Size:
-
88.882mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUMA or OEM
-
Model Number:
-
Bwc13168
-
Car Make:
-
---
-
Application:
-
power transmis-sion equipments
-
Maximum Width:
-
21.0mm
-
Inside shaft Diameter:
-
72.217mm
-
Precision:
-
P6
-
OEM:
-
Accept
-
Delivery:
-
10-15 days
-
Package:
-
single box or as your requirements
-
Port:
-
Shanghai ; Ningbo
-
Outside Shaft Diameter:
-
88.882mm

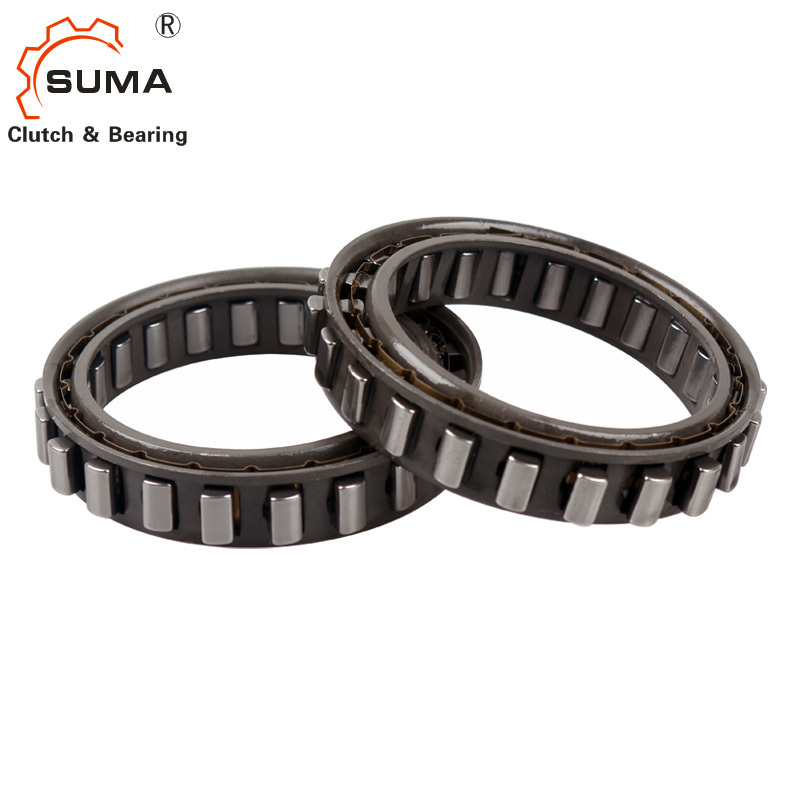

Bwc13168 One Way Bearing with Sprag Type
Cam Clutch Bwc13168
Feature
Type BWC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing
support for axial and radial loads, lubrication and sealing. The BWC type version-N accepts all types of lubricants currently
used in the power transmis-sion equipement. The sprag space tolerance must not be exceeded. Inner and outer races must
both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly. Alternatively, races can be
made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0, 6 mm minimum. Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races: 0, 007 mm for 25 mm width.
The Parameters of the Sprag Freewheel Cage X,BW,BWC
| Type | Inside shaft Diameter | Outside Shaft Diameter | Maximum Width | Rated Drag Torque | ||
| D1 | Sprag Space | De | Sprag Space | B | N.M (kgf.m) | |
| x-135006 | 54.572 | +0.008-0.005 | 71.211 | ±0.013 | 20.5 | 799 (81.5) |
| BW-13231 |
54.765 |
- |
71.427 |
- |
13.5 | 402 (41.0) |
| BW-13214 | 15.9 | 363 (37.0) | ||||
| BW-13167 | 15.9 | 569 (58.0) | ||||
| BW-13209 |
57.760 |
- |
74.427 |
- |
13.5 | 554 (56.5) |
| BWC-13239B | 15.9 | 711 (72.5) | ||||
| BW-13238 | 21.0 | 1050 (107) | ||||
| X-133401 | 59.538 | - | 76.200 | - | 25.4 | 1350 (138) |
| BW-13243 |
72.217 |
- |
88.882 |
- |
13.5 | 637 (65.0) |
| BWC-13168 | 21.0 | 1510 (154) | ||||
| BWC-13229 | 21.6 | 1325 (135) | ||||
| BW-13255 | 26.7 | 1920 (196) | ||||
| X-133614C | 83.596 | ±0.013 | 102.555 | - | 25.4 | 3040 (310) |
| X-133402 | 85.776 | - | 104.775 | - | 25.4 | 3090 (315) |
| BWC-13251 |
103.231 |
- |
119.944 |
- |
15.4 | 789 (80.5) |
| BWC-13261 | 15.4 | 1580 (161) | ||||
| X-133639 | 103.231 | - | 122.230 | - | 25.4 | 4410 (450) |
| X-133403 | 123.881 | - | 142.880 | - | 25.4 |
5740 (585)
|
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
If you have any needs,pls contact me at any time!
