Quick Details
-
Voltage:
-
220V/50Hz-120V/60Hz
-
Dimension(L*W*H):
-
106x76x74 mm
-
Weight:
-
2.03-lb(0.92kg)
-
Air capacity:
-
N/A
-
color:
-
light grey
-
Air Output:
-
20~30 SCFH (10~15 lpm)
-
Pump Pressure:
-
4.5 PSI (30 Kpa)
-
Electric:
-
220V/50Hz,120V/60Hz available,10 W
-
Pump Design:
-
Double diaphragm, duckbill valves
-
Pump Body:
-
Aluminum
-
Outlet & Inlet Dia:
-
0.3" (7.6 mm)
-
Electrical Connections:
-
1-ft (300 mm) Insulated wire pair
-
Noise Level:
-
40 dB unconnected, connected operation will reduce dB level.
-
Product name:
-
Mini Electric Ozone Generator Air Compressor Pump QBF-15
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
None
-
Model Number:
-
QBF-15
-
Voltage:
-
220V/50Hz-120V/60Hz
-
Dimension(L*W*H):
-
106x76x74 mm
-
Weight:
-
2.03-lb(0.92kg)
-
Air capacity:
-
N/A
-
color:
-
light grey
-
Air Output:
-
20~30 SCFH (10~15 lpm)
-
Pump Pressure:
-
4.5 PSI (30 Kpa)
-
Electric:
-
220V/50Hz,120V/60Hz available,10 W
-
Pump Design:
-
Double diaphragm, duckbill valves
-
Pump Body:
-
Aluminum
-
Outlet & Inlet Dia:
-
0.3" (7.6 mm)
-
Electrical Connections:
-
1-ft (300 mm) Insulated wire pair
-
Noise Level:
-
40 dB unconnected, connected operation will reduce dB level.
-
Product name:
-
Mini Electric Ozone Generator Air Compressor Pump QBF-15
Product Description

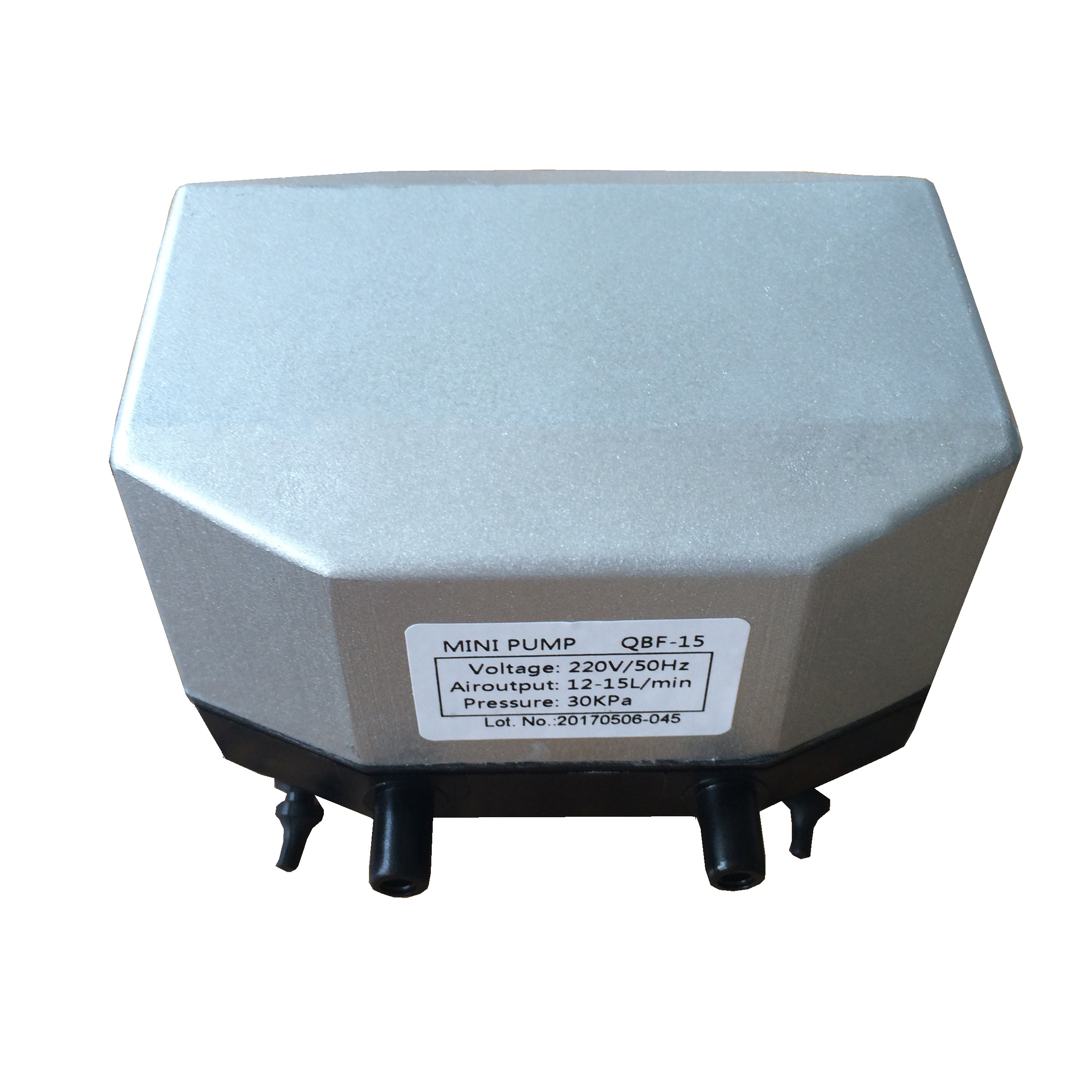

110V 220V Air Compressor for ozone generator air Pump Spare Parts QBF-15
Mini pump series use unique linear motion design that has the capability of over 18,000 hours of continuous maintenance-free operation. They are compact,very quiet ,hignly reliable and inexpensive
product drawing
Performance data
| A ir Output: | 2 0~30 SCFH (10~15 lpm) |
| P ump Pressure: | 4.5 PSI (30 Kpa) |
| Electric | 220V/50Hz,120V/60Hz available,10 W |
| p ump Design: | D ouble diaphragm, duckbill valves |
| P ump Body: | Aluminum |
| O utlet & Inlet Dia: | 0.3" (7.6 mm) |
| E lectrical connections: | 1-ft (300 mm) Insulated wire pair |
| N oise Level: | 40 dB unconnected, connected operation will reduce dB level. |
| D imension (LxWxH): | 4.2" x 3" x 2.9" (106x76x74 mm) |
| N et Weight: | 1.4-lb (0.62 kg) |
