Quick Details
-
Rated Power:
-
50W-220W
-
Dimension(L*W*H):
-
min 2500X300X80(mm)
-
Weight (KG):
-
150 KG
-
After-sales Service Provided:
-
No after-sales service
-
Name::
-
portable plasma cutting machine
-
OEM::
-
Requested
-
Cutting mode::
-
Plasma Cutting / Flame Cutting
-
Cutting material::
-
Metal Stainless Steel Carbon Steel Aluminum
-
Cutting speed::
-
0-4000mm/min
-
Application::
-
Steel Cutting Construction Projects
-
Control system::
-
Fastcam
-
Cutting thickness::
-
0-150mm
-
Pakcage::
-
Wooden case
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
MC
-
Voltage:
-
110V-220V-380V
-
Rated Power:
-
50W-220W
-
Dimension(L*W*H):
-
min 2500X300X80(mm)
-
Weight (KG):
-
150 KG
-
After-sales Service Provided:
-
No after-sales service
-
Name::
-
portable plasma cutting machine
-
OEM::
-
Requested
-
Cutting mode::
-
Plasma Cutting / Flame Cutting
-
Cutting material::
-
Metal Stainless Steel Carbon Steel Aluminum
-
Cutting speed::
-
0-4000mm/min
-
Application::
-
Steel Cutting Construction Projects
-
Control system::
-
Fastcam
-
Cutting thickness::
-
0-150mm
-
Pakcage::
-
Wooden case
Contacts: Mark Liu
Tel: +86-411-82766928
Fax: +86-411-39015062
Email: Liu@weldcnc.com
Mob/Whatsapp: +86 133 9411 0095
Products Description

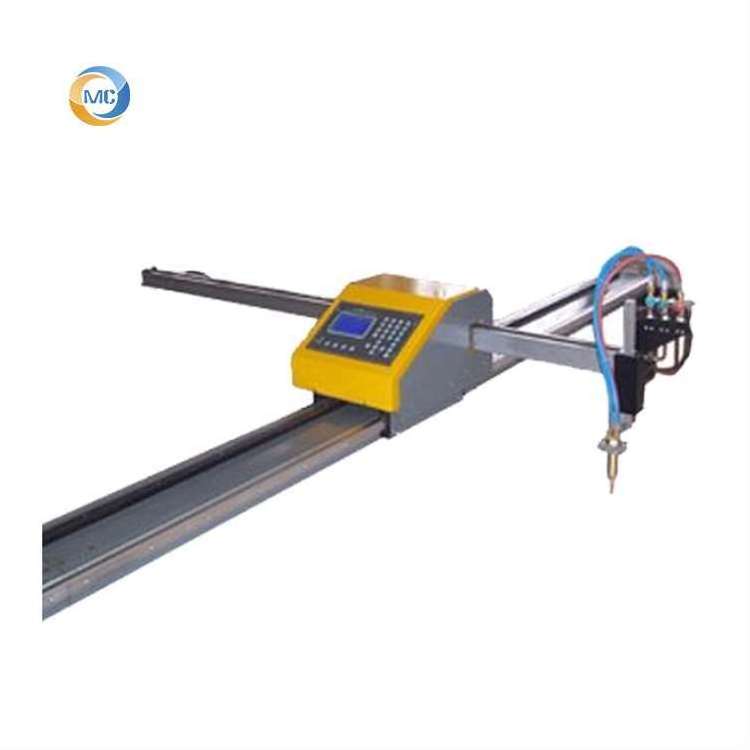

Portable plasma laser cutting machine
Portable plasma CNC cutting machine overall compact micro structure, the whole machine transverse longitudinal track using hard aluminum alloy material, reduce the weight of equipment, so as to achieve the characteristics of easy to move, small operation,flexible.
It is an ideal replacement for hand-held flame cutting equipment, hand-held plasma cutting device, copy cutting machine and semi-automatic cutting car.
As flexible and convenient as cutting trolley, it does not occupy the fixed site when moved at will. It is a numerical control
equipment specially used for cutting sheet metal.
It is an ideal replacement for hand-held flame cutting equipment, hand-held plasma cutting device, copy cutting machine and semi-automatic cutting car.
As flexible and convenient as cutting trolley, it does not occupy the fixed site when moved at will. It is a numerical control
equipment specially used for cutting sheet metal.
Portable plasma flame cutting machine incisable figure:
Portable plasma flame cutting machine cutting material:
Portable plasma flame cutting machine cutting display:
Want to know this portable plasma cutting machine more information!
Product Paramenters
|
Technical specification
|
|
|
|
|||
|
Model
|
QGP1020
|
QG1225
|
QGP1530
|
|||
|
Power source
|
220±10%VAC 50/60Hz 220W
|
|
|
|||
|
Cutting mode
|
O2/C3H8 or C2H2, Plasma available
|
|
|
|||
|
Effective cutting range(mm)
|
1000×2000
|
1200×2500
|
1500×3000
|
|||
|
Track L×W×H(mm)
|
-
|
3000×300×95
|
-
|
|||
|
Track Holder Quantity
|
2
|
3
|
3
|
|||
|
Track Holder L×W×H(mm)
|
470×80×40
|
|
|
|||
|
Cutting speed(mm/min)
|
0-600
|
|
|
|||
|
Cutting thickness(Flame)(mm)
|
5-150 (O2/C3H8 or C2H2)
|
|
|
|||
|
Move precision
|
±0.2mm/m
|
|
|
|||
|
Torch
|
Flame,electric height adjustment(±60mm)
|
|
|
|||
|
Host weight(kg)
|
19
|
|
|
|||
|
Total weight(kg)
|
110
|
120
|
140
|
|||
|
Gas pressure(Mpa)
|
Max0.1
|
|
|
|||
|
Oxygen pressure(Mpa)
|
Max0.7
|
|
|
|||
|
Type of gas
|
Propane, Ethine
|
|
|
|||
|
Emergency stop
|
Yes
|
|
|
|||
|
Working temperature
|
-5~45°C
|
|
|
|||
|
Relative humidity
|
<95% No condensing
|
|
|
|||
|
Remarks:Standard configuration is 2# propane cutting nozzle if no special requirement.
|
|
|
|
|||
