Quick Details
-
CE:
-
yes
-
Ongird:
-
G99, EN50549
-
Mobile:
-
yes
-
PCS:
-
100kW
-
Lithium-ion Battery:
-
153.6kWh
-
Efficiency:
-
96%
-
UN38.3:
-
yes
-
Solar PV access:
-
Optional
-
Warranty:
-
36 months
-
Battery Life cycle:
-
25℃ 0.5C/0.5C 100%DOD EOL80% ≥4000 cycles
-
Battery Type:
-
lifepo4 Battery
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SCU
-
Model Number:
-
GRES-150-100
-
CE:
-
yes
-
Ongird:
-
G99, EN50549
-
Mobile:
-
yes
-
PCS:
-
100kW
-
Lithium-ion Battery:
-
153.6kWh
-
Efficiency:
-
96%
-
UN38.3:
-
yes
-
Solar PV access:
-
Optional
-
Warranty:
-
36 months
-
Battery Life cycle:
-
25℃ 0.5C/0.5C 100%DOD EOL80% ≥4000 cycles
-
Battery Type:
-
lifepo4 Battery

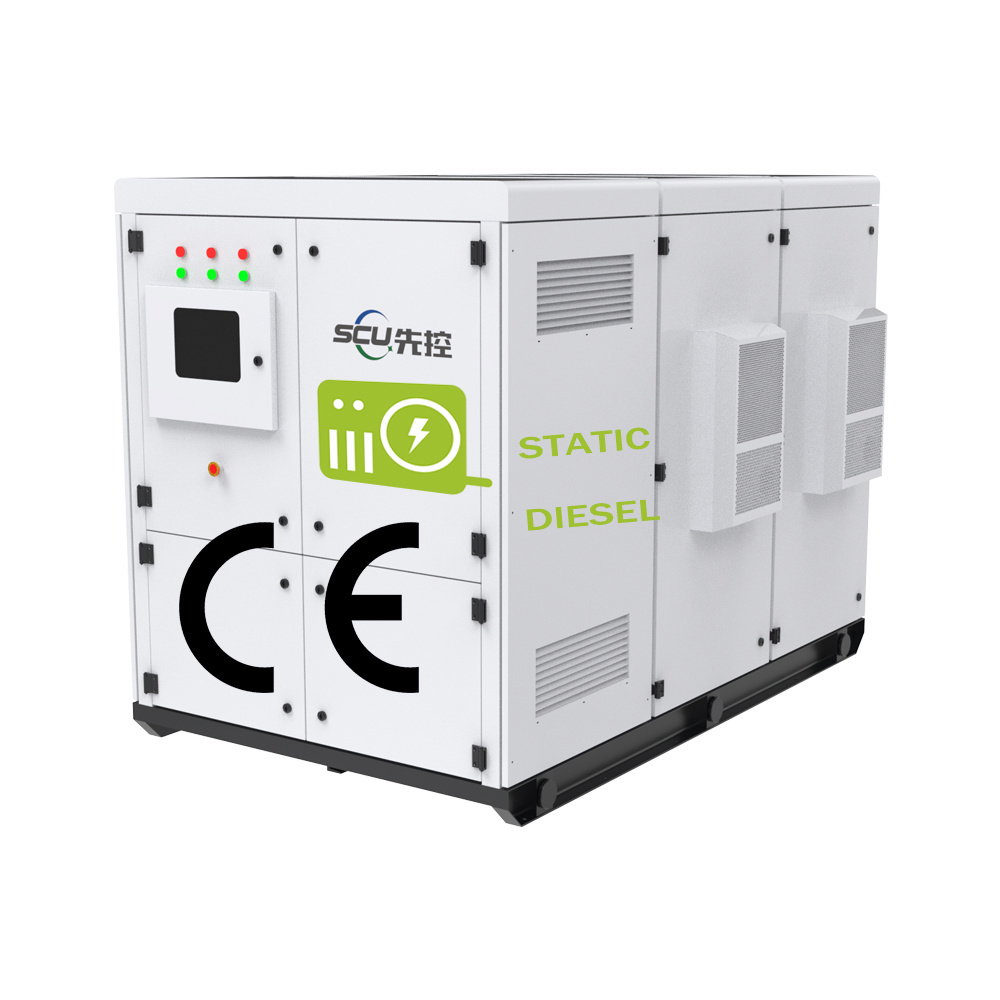

Product Description
If you already have a diesel generator, for example as an emergency power supply or an off-grid energy source, a battery storage system is a useful expansion.
If this is combined with renewable electricity generators, when the wind drops or it gets dark, the electricity will first be
drawn from the storage system. It is only once the storage system is empty that the generator kicks in. This shortens the diesel generator running time and increases the proportion of usable solar-generated electricity.
This is because a storage system extends the generator’s interruption-free running times, and minimises inefficient starts and cold runs, thereby decreasing fuel requirements, wear and maintenance costs.
If this is combined with renewable electricity generators, when the wind drops or it gets dark, the electricity will first be
drawn from the storage system. It is only once the storage system is empty that the generator kicks in. This shortens the diesel generator running time and increases the proportion of usable solar-generated electricity.
Although procurement costs for a diesel generator are considerably lower than for a SCU all-in-one battery energy storage system, the variable costs for the storage system are very low.
The systems usually pay for themselves in just a few years.
Specification
|
GRES-75-50
|
75kWh/50kW+50kW MPPT [flexible configuration]
|
|
GRES-150-100
|
150kWh/100kW+100kW MPPT [flexible configuration]
|
|
GRES-225-150
|
230kWh/150kW+100kW MPPT [flexible configuration]
|
|
GRES-300-200
|
300kWh/200kW+50kW MPPT [flexible configuration]
|
Contact SCU:
Joy Yujiao Liu
Packing & Delivery
Part 1:
Lithium-ion Battery Pack part of GRES: UN38.3 certificated
Lithium-ion Battery Pack part of GRES: UN38.3 certificated
MSDS, safe sea shipment documents available.
Part 2:
GRES without Lithium-ion Battery Pack:
Well packed as above photos to secure the goods shipment.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
