- Product Details
- {{item.text}}
Quick Details
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
X-RISE
-
Model Number:
-
XRIAC12000-V1
-
COP:
-
≥3.5
-
Power (W):
-
3500W
-
Voltage (V):
-
208-240V
-
Keyword:
-
Dc Air Conditioner
-
Product Name:
-
Air Conditioning
-
Power supply:
-
220-240V/1Ph/50Hz
-
Function:
-
Cooling\Heating
-
Refrigerant:
-
R410A/R32
-
Cooling capacity:
-
9000-36000 Btu/h
-
NOISE LEVEL:
-
18-45dB
-
Certification:
-
RoHS
-
Brand:
-
OEM ODM
-
Compressor:
-
GMCC - Toshiba
Quick Details
-
Warranty:
-
3 years
-
Type:
-
Split Wall Mounted Air Conditioners
-
Application:
-
Household
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
X-RISE
-
Model Number:
-
XRIAC12000-V1
-
COP:
-
≥3.5
-
Power (W):
-
3500W
-
Voltage (V):
-
208-240V
-
Keyword:
-
Dc Air Conditioner
-
Product Name:
-
Air Conditioning
-
Power supply:
-
220-240V/1Ph/50Hz
-
Function:
-
Cooling\Heating
-
Refrigerant:
-
R410A/R32
-
Cooling capacity:
-
9000-36000 Btu/h
-
NOISE LEVEL:
-
18-45dB
-
Certification:
-
RoHS
-
Brand:
-
OEM ODM
-
Compressor:
-
GMCC - Toshiba
![](https://cdn.bestsuppliers.com/seo_products_img/ahfanao/4b6da1a18e123918857cf3bf2e4c3b32.jpg!/rotate/180)
Product Paramenters
Model No.
|
|
|
XRIAC9000-V1
|
XRIAC12000-V1
|
XRIAC18000-V1
|
XRIAC24000-V1
|
||||
Power Supply
|
Solar input
|
V
|
DC70-380V MAX.15A
|
|
|
|
||||
|
AC input
|
V
|
208-240V50/60Hz
|
|
|
|
||||
Cooling
|
Capacity
|
Btu/h
|
9000
|
12000
|
18000
|
24000
|
||||
|
Power Input
|
W
|
660
|
960
|
1420
|
1830
|
||||
|
Rated Current
|
A
|
3
|
4.4
|
6.1
|
8
|
||||
|
SEER
|
Btu/h
|
23
|
22
|
21
|
20
|
||||
|
EER
|
Btu/h
|
13.6
|
12.5
|
12
|
12
|
||||
Heating
|
Capacity
|
Btu/h
|
9000
|
12000
|
18000
|
24000
|
||||
|
Power input
|
W
|
670
|
1028
|
1375
|
1820
|
||||
|
Rated Current
|
A
|
3.2
|
5.9
|
5.9
|
8
|
||||
|
HSPF
|
/
|
10
|
11
|
10
|
11
|
||||
|
COP
|
Btu/h
|
13.4
|
11.7
|
12.4
|
12.08
|
||||
|
Dehumidification
|
L/H
|
1
|
1.3
|
1.9
|
2.3
|
||||
Indoor air flow(Hi/Mi/Lo)
|
|
cfm
|
360/340/295
|
360/340/295
|
810/320/278
|
910/340/270
|
||||
Indoor Noise (Hi/Mi/Lo)
|
|
dB(A)
|
41/38/32
|
41/38/32
|
48/40/32
|
49/41/35
|
||||
Outdoor fan motor
|
Model
|
/
|
D-40-8
|
D-40-8
|
D-69-8
|
D-69-8
|
||||
|
Input
|
W
|
82
|
82
|
102
|
93
|
||||
Outdoor Noise
|
|
dB(A)
|
53
|
53
|
56
|
60
|
||||
Max Refrigeration Pipe Length
|
|
ft/m
|
49/15
|
49/15
|
49/15
|
49/15
|
||||
Max Refrigeration Pipe Rise/Fall
|
|
ft/m
|
16/5
|
16/5
|
16/5
|
16/5
|
||||
Max Elevation Difference
|
|
/
|
49/15
|
49/15
|
49/15
|
49/15
|
||||
Refrigerant Charge
|
|
(g/oz)
|
1150/41
|
1150/41
|
1600/56
|
2100/74
|
||||
Design Pressure(Hi/Lo)
|
|
psig
|
550 / 340
|
550 / 340
|
550 / 340
|
550 / 340
|
||||
Operation
temperature |
Indoor
(Cooling/Heating) |
℃
|
10-52℃/-15~33 ℃
|
10-52℃/-15~33℃
|
10-52℃/-15~33℃
|
10-52℃/-15~33℃
|
||||
|
Outdoor
(Cooling/Herating) |
℃
|
10-52℃/-15~33 ℃
|
10-52℃/-15~33 ℃
|
10-52℃/-15~33℃
|
10-52℃/-15~33℃
|
||||
Indoor Unit
|
Dimension(W*D*H)
|
mm
|
850*290*205
|
850*290*205
|
970*315*235
|
1100*330*235
|
||||
|
|
inch
|
33.46"*11.42"*8.07"
|
33.46"*11.42"*8.07"
|
38.19"*12.40"*9.25"
|
38.19"*12.40"*9.25"
|
||||
|
Packing(W*D*H)
|
mm
|
920*370*285
|
920*370*285
|
1045*385*320
|
1160*390*300
|
||||
|
|
inch
|
36.22"*14.57"*11.22"
|
36.22"*14.57"*11.22"
|
41.14"*15.16"*12.60"
|
45.67"*15.35"*11.81"
|
||||
|
Packing(W*D*H)
|
kg
|
10/12
|
10/12
|
14/16.5
|
16/18
|
||||
|
|
lb
|
22/26
|
22/26
|
31/36
|
35/40
|
||||
Outdoor Unit
|
Dimension(W*D*H)
|
mm
|
860*325*540
|
860*325*540
|
890*320*670
|
890*320*670
|
||||
|
|
inch
|
33.86"*12.80"*21.26"
|
33.86"*12.80"*21.26"
|
35.04"*12.60"*26.38"
|
35.04"*12.60"*26.38"
|
||||
|
Packing(W*D*H)
|
mm
|
920*395*605
|
920*395*605
|
1020*430*755
|
1020*430*755
|
||||
|
|
inch
|
36.22"*15.55"*23.82
|
36.22"*15.55"*23.82
|
40.16"*16.93"*29.72"
|
40.16"*16.93"*29.72"
|
||||
|
Packing(W*D*H)
|
kg
|
32/36
|
32/36
|
48/53
|
53.5/58
|
||||
|
|
lb
|
71/79
|
71/79
|
106/117
|
118/128
|
||||
Application Area
|
㎡/sq.ft
|
|
8~15/86~161
|
12~25/129~269
|
20~40/215~430
|
33~49/355~527
|
||||
Loading Qty by 20'GP/40'GP/40'HQ
|
|
pcs
|
80/160/194
|
80/160/194
|
58/120/135
|
58/120/135
|
||||
Certification
|
|
/
|
ETL/DOE/ AHRI Certified
|
|
|
|
Products feature
![](https://cdn.bestsuppliers.com/seo_products_img/ahfanao/62b012707f7a32fdb0812ba1a0cee02f.jpg!/rotate/180)
1.Low power consumption and high energy saving efficiency;
2.All DC:dc compressor, dc motor , dc valve;
3.Variable speed air compressor to achieve the soft start and quick cooling / heating;
4.Wider working frequency range and DC working voltage range;
5.Smooth running with low noise level;
6.The working voltage for off grid solar air conditioner system is 48V/72V/96V DC which is easy to configure the system;
7.Safety protection arrangements are adopted;
8.APP control and power saving indicator are optional.
Products Description
![](https://cdn.bestsuppliers.com/seo_products_img/ahfanao/240b61efbafd3814885b348f2512fabc.png!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/ahfanao/fc911e3b0f7132c592b592e5a9775fca.jpg!/rotate/180)

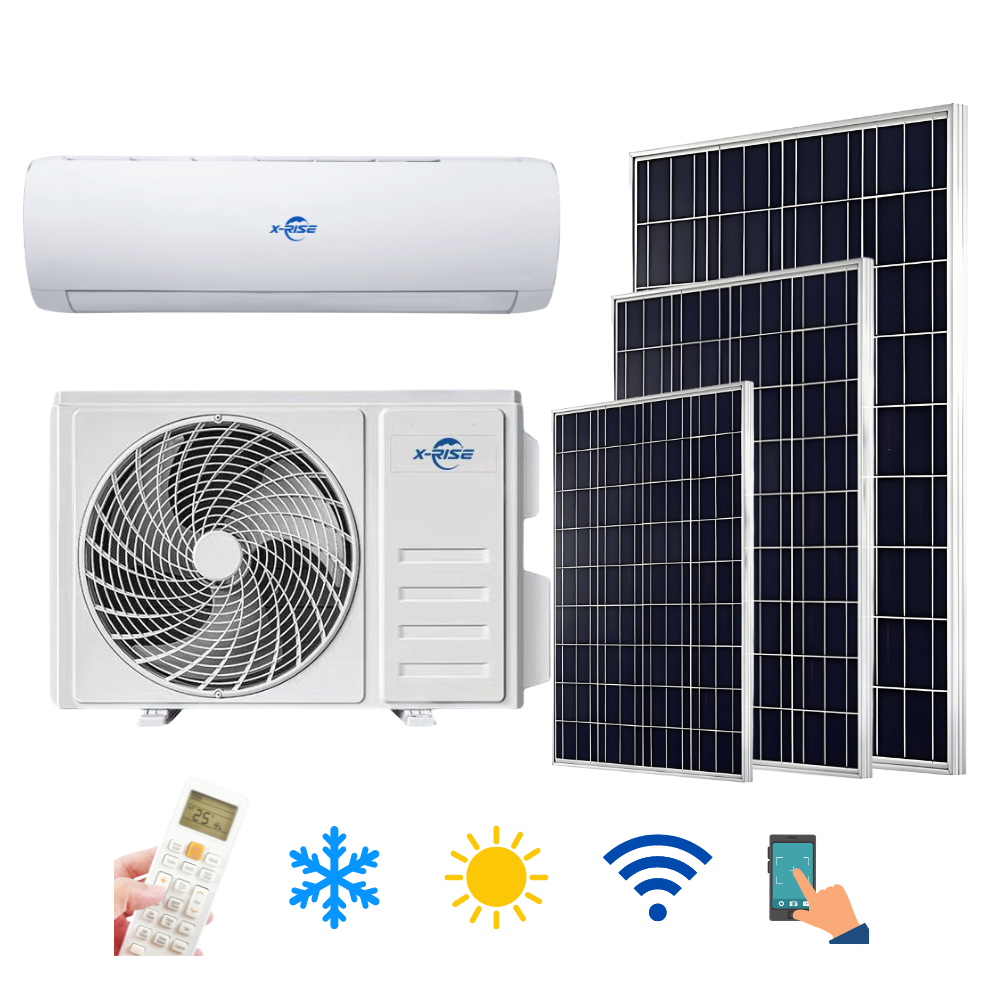

XRISE Technology
Xrise Solar Air Conditioner embraces both inverter technology(VRF) and Full DC technology in the products, realizing that the solar air conditioner can be directly generated by DC power via solar panels. It can be configured into different system solutions according to the specific application requirements, such as hybrid solar air conditioner system, off grid solar air conditioner system, pure solar air conditioner system, PV-Wind hybrid solar air conditioner system, ect.
√ 100% efficiency of solar power consumption, not a bit of energy waste
√ Solar DC and city electricity as hybrid power input, automatic and seamless
switching between with Solar input as priority to cut the most of electricity bills
√ Full DC system, high efficiency, SEER up to 23
√ Wide range of AC input: 50/60Hz, 160V-270V
√ Wide range of ambient temperature: -15℃~55℃
√ No controller/inverter/batteries needed, lower investment than DC off-grid type
√ Eco-Friendly R410a Refrigerant
√ Easy installation, no difference with electric a/c installation
√ Intelligent power supply display, real-time update of power input
√ Regular solar panels can be used, 3~10pcs can be freely embraced
√ Washable Filters
√ Digital Wireless Remote
√ Solar DC and city electricity as hybrid power input, automatic and seamless
switching between with Solar input as priority to cut the most of electricity bills
√ Full DC system, high efficiency, SEER up to 23
√ Wide range of AC input: 50/60Hz, 160V-270V
√ Wide range of ambient temperature: -15℃~55℃
√ No controller/inverter/batteries needed, lower investment than DC off-grid type
√ Eco-Friendly R410a Refrigerant
√ Easy installation, no difference with electric a/c installation
√ Intelligent power supply display, real-time update of power input
√ Regular solar panels can be used, 3~10pcs can be freely embraced
√ Washable Filters
√ Digital Wireless Remote
Certifications
Product packaging
Exhibition
Why Choose Us
Related accessories
PV cable
Item:PV1-F 1×4mm2Nominal cross-sectional area of conductor: 4mm2
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage: 1000VDC
Max. operating current: 8AEnvironment: -40℃~+120℃
Use dc and ac switch can protect the system.
When the system appear overcurrent and overvoltage the switch will off to protect the system in order to protect the system.
AC cable
Model: JHS Waterproof
No. of cores: 4 cores
Rated power-frequency voltage: 300/500V
No. of cores*sectionalarea:3*4mm+1*2.5mm
Insulation thickness(mm) 1.0+1.0
Sheath thickness(mm) 2.0
admissible operating temperature of the conductor:-20~+65℃
