1.Column QTY :4 .
2.Longer beam QTY :4 .
Shorter beam QTY :4 .
3. Corner fitting QTY : 8 .
4.Floor Purlin QTY : 14 .
- Product Details
- {{item.text}}
Quick Details
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GYD
-
Model Number:
-
GYD-cf
-
Product name:
-
Modular Houses Steel Structure Container House Frame Prefabricated
-
Keyword:
-
Container House Frame Prefabricated
-
Material:
-
Galvanized Steel Frame
-
Color:
-
Customized Color
-
Floor:
-
MGO Board
-
Roof:
-
Sandwich Panel+ Decoration Ceiling
-
Wall:
-
50mm/75mm Sandwich Panel
-
Window:
-
PVC Sliding Window
-
Door:
-
Sandwich Panel Door
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Living Room
-
Product Type:
-
Container Houses
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GYD
-
Model Number:
-
GYD-cf
-
Product name:
-
Modular Houses Steel Structure Container House Frame Prefabricated
-
Keyword:
-
Container House Frame Prefabricated
-
Material:
-
Galvanized Steel Frame
-
Color:
-
Customized Color
-
Floor:
-
MGO Board
-
Roof:
-
Sandwich Panel+ Decoration Ceiling
-
Wall:
-
50mm/75mm Sandwich Panel
-
Window:
-
PVC Sliding Window
-
Door:
-
Sandwich Panel Door
Movable Flat Pack Prefab Containers Modular Houses Steel Structure Container House Frame Prefabricated
Advantage
* Easy assembly: Two skilled workers can finish assembling one standard unit within 2 hours;
* Doesn't need a crane for installation as the 3m X 5.95m container house is totally disassembled to easy handled sections and all that is required is re assembly.
* Light steel structure (reliable frame);
* Galvanized frame with powder coating for extra anti rust quality.
* Strong = main frame thickness is 2-3mm
* Extensive and flexible application.
* our this kind container house is with bigger size W3M*L5.95M*H2.8M
* they can be combined to make a bigger units or stacked 2-3 levels
* Wide applications: Can be used as warehouse, home, villa, toilet, shower, shop, hotel, camp, workshop, office, hospital etc;
* High mobility: Completed lifting and easy to move from one site to another site.
* Easy assembly: Two skilled workers can finish assembling one standard unit within 2 hours;
* Doesn't need a crane for installation as the 3m X 5.95m container house is totally disassembled to easy handled sections and all that is required is re assembly.
* Light steel structure (reliable frame);
* Galvanized frame with powder coating for extra anti rust quality.
* Strong = main frame thickness is 2-3mm
* Extensive and flexible application.
* our this kind container house is with bigger size W3M*L5.95M*H2.8M
* they can be combined to make a bigger units or stacked 2-3 levels
* Wide applications: Can be used as warehouse, home, villa, toilet, shower, shop, hotel, camp, workshop, office, hospital etc;
* High mobility: Completed lifting and easy to move from one site to another site.
Product Description
|
Size
|
L5950mm*W3000mm*H2800mm
|
|
Color
|
White or customized
|
|
Frame
|
Galvanized steel（80g/㎡）+power coating（thickness：0.2mm）
|
|
Floor
|
Cement fire prevention board，Thickness：18mm
|
|
Roof（Thickness can be customized.）
|
Double steel sheet EPS sandwich panel(0.4mm+50mmthickness12kg/m³EPS+0.4mm)
|
|
Floor Purlin
|
Square Tube 40mm*80mm*1.2mm*14
|
|
Column/Beam
|
Steel plate Bending；Thickness：2.3mm or customized
|
|
Corner fitting
|
Steel plate bending;Thickness:4mm;Color:white or customized.
|

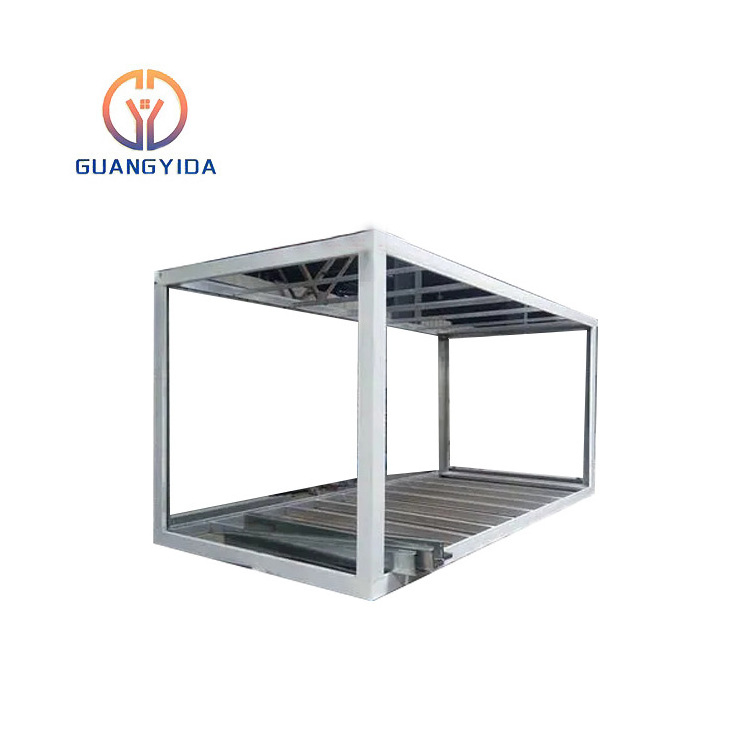

Container House Frame
Overview
|
item
|
Combine container house
|
|
|
|
|
Warranty
|
1 Year
|
|
|
|
|
After-sale Service
|
Online technical support
|
|
|
|
|
Project Solution Capability
|
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
|
|
|
|
|
Application
|
Apartment
|
|
|
|
|
Place of Origin
|
Shandong China
|
|
|
|
|
Brand Name
|
GYD
|
|
|
|
|
Model Number
|
GYD-cf
|
|
|
|
|
Use
|
Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant
|
|
|
|
|
Product Type
|
Container Houses
|
|
|
|
|
Design Style
|
Modern
|
|
|
|
Production Advantages
|
1.All bolt connection,dont need crane for installation.
|
|
|
|
|
||||
|
2.Easy for installation:two workers will install one house in 8 hours.
|
|
|
|
|
||||
|
3.Take less space in container:for only the frame,one 20ft container can load 25 units,one 40HC container can load 50 units;for full house with one door,two windows,wall,roof,floor,one 20ft container can load 5 units,one 40HC container can load 12 units.
|
|
|
|
|
||||
|
4.Two or more container houses can be combined to make a big room.
|
|
|
|
|
||||
|
5.It can be stacked 2-3 levels as a high-rise apartments.
|
|
|
|
|
||||
Why Choose Us
|
1.Fast production:parts of house are automaticly made by machine,production is fast,one day can produce 100 units.
|
|
|
|
|
||||
|
2.Galvanized frame+powder coating:container house frame is hard to get rusted.
|
|
|
|
|
||||
|
3.We each production line equipped with an inspector.We have strict quality control system, ensure that don't appear unqualified products, to achieve zero error.
|
|
|
|
|
||||
|
4.Roof panel with high density of EPS materials, people can walk on it.
|
|
|
|
|
||||
|
5.Wall panel with high density of EPS materials, hammer won't damage it.
|
|
|
|
|
||||
|
6.Our product installation easier than other factory.
|
|
|
|
|
||||
|
7.If you want to the roof insulation, or prevent roof leaks, also can install a single layer corrugated plate above the roof.
|
|
|
|
|
||||
|
8.Special packaging to ensure no damage to the product during the transit.
|
|
|
|
|
||||
Packing & Delivery
The welding tray is used as the chassis, the product is bound with the packing belt, and the product is completely wrapped with the wrapping film.
