Name: dismantling joints
Brand: hengzhong
Main materiall: Nodular cast iron, carbon steel, NBR
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hengzhong
-
Model Number:
-
C2F
-
Name:
-
dismantling joints
-
Product name:
-
ductile iron double flange type dismantling joints
-
Application:
-
Pipeline valve axial displacement caused by heat bilges cold shrink
-
Standard:
-
DIN,ANSI,JIS,BS
-
Color:
-
Blue, gray, white
-
Size:
-
50mm-3200mm
-
Certificate:
-
ISO 9001,The production license
-
Surface treatment:
-
Plastic spraying, 250-400μm
-
Usage:
-
Connection pipe valves
-
Pressure standard:
-
Germany standard
Quick Details
-
Technics:
-
Casting
-
Shape:
-
cylindrical
-
Head Code:
-
round
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hengzhong
-
Model Number:
-
C2F
-
Name:
-
dismantling joints
-
Product name:
-
ductile iron double flange type dismantling joints
-
Application:
-
Pipeline valve axial displacement caused by heat bilges cold shrink
-
Standard:
-
DIN,ANSI,JIS,BS
-
Color:
-
Blue, gray, white
-
Size:
-
50mm-3200mm
-
Certificate:
-
ISO 9001,The production license
-
Surface treatment:
-
Plastic spraying, 250-400μm
-
Usage:
-
Connection pipe valves
-
Pressure standard:
-
Germany standard
Product Description

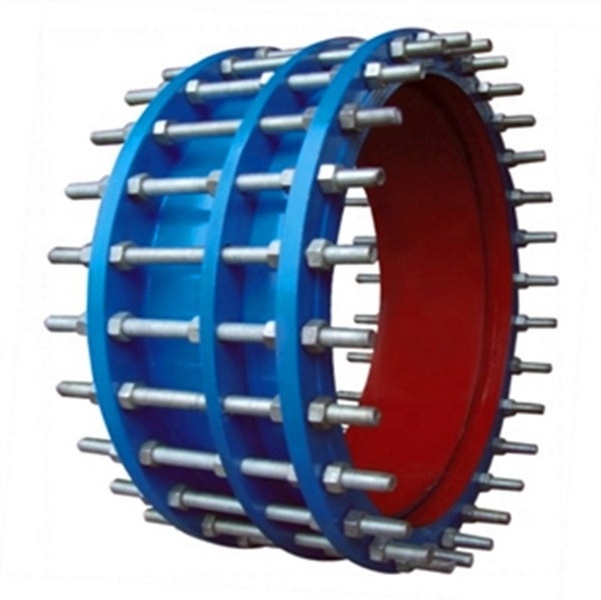

PN 16 and PN40 ductile iron double flange type dismantling joints
Dismantling joints is pumps, valves, pipes and other devices connected to the pipeline of new products, connected by the bolt, making it a whole, and has certain displacement, convenient installation. Can withstand axial stress of pipeline. So you can at the time of installation and maintenance, according to the on-site installation size adjustment, at work, not only improve the work efficiency, but also for pump, valve, pipeline equipment play a protective role.
dismantling joints main features
1. Easy and convenient installation, convenient valve installation, affordable pipeline axial tension.
2. The product is casting or welding metal, loose tube parts choose trapezoidal rubber seal, under the action of gland and bolt.
3. The principle of using rubber compression elastic deformation. Forced sealing ring deformation on the outer wall of pipe joint ontology between static seal.
4. Metal and seal strictly according to the using performance and user requirements. External coating material high strength anti-corrosion paint, by connecting bolts for high strength carbon steel or stainless steel. Because of a certain gap between ontology and telescopic tube, make it has a certain axial and radial displacement.
5. Effective compensation and relief pipe in the course of pipeline and blind thrust, and facilitate water pump, valve replacement, installation and maintenance is a pipe installation in the shipping industry is the most ideal accessory products.
Certifications
Detailed Images
The product name
Main Features
1. Easy and convenient installation, convenient valve installation, affordable pipeline axial tension.
2. The product is casting or welding metal, loose tube parts choose trapezoidal rubber seal, under the action of gland and bolt.
3. The principle of using rubber compression elastic deformation. Forced sealing ring deformation on the outer wall of pipe joint ontology between static seal.
4. Metal and seal strictly according to the using performance and user requirements. External coating material high strength anti-corrosion paint, by connecting bolts for high strength carbon steel or stainless steel. Because of a certain gap between ontology and telescopic tube, make it has a certain axial and radial displacement.
5. Effective compensation and relief pipe in the course of pipeline and blind thrust, and facilitate water pump, valve replacement, installation and maintenance is a pipe installation in the shipping industry is the most ideal accessory products.
Plastic spraying field
1, the former processing: to remove oil, dirt, rust on the surface of the workpiece, and generate a layer of corrosion in workpiece surface and increases the "phosphate layer" of spraying coating adhesion. The main process steps: oil removal, rust removal, phosphating, passivation. Artifacts after prior treatment not only surface without oil, rust, dust, and generated on the surface layer of the original silver luster evenly and coarse gray phosphating film is not easy to rust, both can rust and can increase the coating layer adhesion.
2, electrostatic spraying, the powder coating evenly sprayed onto the surface of the workpiece, special artifacts (including prone to the location of the electrostatic shielding) high-performance electrostatic spray molding machine should be used to complete the painting.
3, powder curing: using powder curing process is 180 ℃, bake for 15 min, belongs to the normal curing. The temperature and time is refers to the actual temperature of the workpiece and maintenance of temperature is not lower than the accumulation of time, rather than the set temperature and curing furnace workpiece in furnace walking time. But the correlation between, equipment debugging initially need to use the furnace temperature tracker, which measure the largest workpiece surface temperature under 3 p.m. and accumulation time, and adjust according to the results of the measurement of curing furnace set temperature and speed of conveyor chain (it decided to artifacts in the furnace of walking time), until it can meet the demands of the curing process.
Coating thickness can reach the effect you want!
Our Service
dismantling joints
* support your research and consulting.
* support the sample test.
* welcome you to visit our factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
12''
|
|
|
Weight
|
76kg
|
|
|
Packaging Details
|
|
|
|
Packaging
|
|
|
|
Size
|
1100 (L) * 1100 (W) *1100(D)Depending on the product size can adjust the size in wooden cases
|
|
|
Weight
|
1.2 T
|
|
|
Packaging Details
|
First export transportation distance is long, with shipping, more bumpy, so packaging requirements are secure, moisture, rust, mouldproof, waterproof, etc. And export for wooden pallets using composite board class fumigation-free material or wood fumigation processing. According to different countries, there are some religious beliefs, packaging materials selection should consider the factors.
|
|
