Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
12
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUAHUA
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
4300*2300*2500mm
-
Power (kW):
-
24.25
-
Weight (KG):
-
2800
-
Application:
-
MDF
-
Product name:
-
CNC ROUTER MACHINE
-
Working area:
-
2500*1300mm
-
X-axis maximum speed:
-
60m/min
-
Y-axis maximum speed:
-
60m/min
-
Z-axis maximum speed:
-
20m/min
-
Spindle power:
-
12kw
-
vaccum pump power:
-
7.5kw air cooling
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE/ISO
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
12
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUAHUA
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
4300*2300*2500mm
-
Power (kW):
-
24.25
-
Weight (KG):
-
2800
-
Application:
-
MDF
-

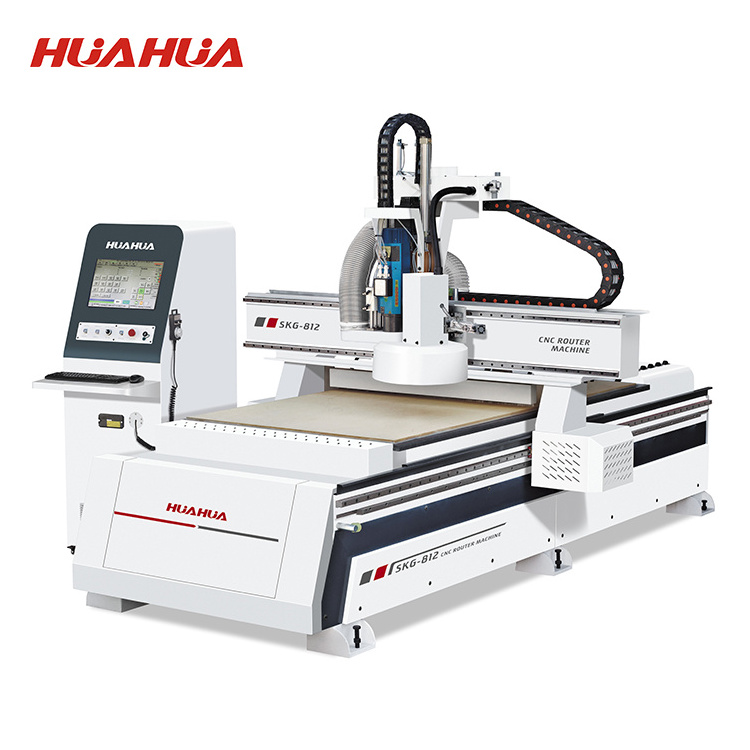

Product name:
-
CNC ROUTER MACHINE
-
Working area:
-
2500*1300mm
-
X-axis maximum speed:
-
60m/min
-
Y-axis maximum speed:
-
60m/min
-
Z-axis maximum speed:
-
20m/min
-
Spindle power:
-
12kw
-
vaccum pump power:
-
7.5kw air cooling
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE/ISO
Products Description
products details
Machine structure
1.Cast steel body with aging & tempering treatment, solid and durable.
2.Heavy duty, machine total weight is about 2800KG
GMT High speed spindle
1.Powerful 12KW imported automatic tool change Spindle, 24000rpm, Powerful twisting force and fast processing.
2.it is suitable for heavy cutting, milling etc.,it will keep the surface of work piec
es very s
mooth.
Auto tool changer unit 12pcs
12tools round tool magazine with ISO30 chucks with ER32 collet.
Vacuum pump 7.5kw
1.vacuum pumps ensure the powerful suction. 2.Type: Dry
3.Power: 7.5kw
4.Suction flow rate:250m3/h per set
Taiwan Delta frequency inverter
1.With very good anti interference function & stable output signal,ensure the spindle working smoothly. 2.Taiwan Delta has after sale service shops overall the world, the service response is fast, timely.
Vacuum worktable
1.Material: 2.8CM thickness PVC board
2.Worktable is divided into 4 parts, 6 big holes in each part to ensure the adsorption is equal.Each area can work independently.
Taiwan Syntec servo motor and faston reducer
Professionally made, ensure the machine running accurately in safe with very good resolution and accuracy.
Control system
1.Taiwan Syntec control system.
2.User-friendly interface, easy operation and fast response.
|
|
X-axis:
|
1300mm
|
|
|
|
Y-axis:
|
2500mm
|
|
|
|
Z-axis:
|
200mm
|
|
|
Machine Precision
|
Processing Precision
|
±0.05mm
|
|
|
|
Repeat positioning
|
±0.01mm
|
|
|
|
X-axis max. speed
|
80m/min
|
|
|
|
Y-axis max. speed
|
80m/min
|
|
|
|
Z-axis max. speed
|
20m/min
|
|
|
|
work table
|
vacuum worktable
|
|
|
|
|
X/Y axis：Oblique Rack Gear
|
|
|
|
|
Z axis：Ball Screw
|
|
|
Main spindle
|
Quantity
|
1
|
|
|
|
Power
|
12kw
|
|
|
|
Rotating speed
|
24000 rpm
|
|
|
tool magazine
|
12 tools auto changer, round type
|
|
|
|
Drive system
|
servo motor and driver
|
|
|
|
Vacuum pump
|
Working principle
|
DRY
|
|
|
|
Quantity
|
1
|
|
|
|
Power
|
7.5KW
|
|
|
|
Suction flow rate
|
250 m³/h
|
|
|
control system
|
TaiWan Syntec control system
|
|
|
|
Power supply
|
Voltage: 380V, 3-phase, Frequency: 50 Hz
|
|
|
|
Software
|
Jdpaint, Alphacam, etc.
CAD/CAM software compatible, identify G code, *.NC.
|
|
|
|
Packing size
|
4300x2300x2500mm
|
|
|
|
Net weight
|
2800kg
|
|
|
