Quick Details
-
Product name:
-

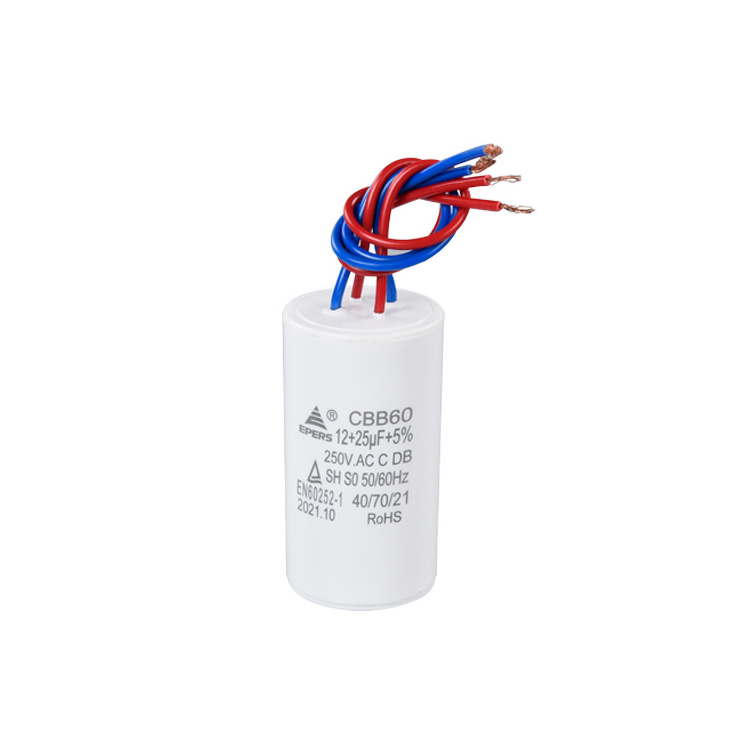

CBB60 AC Motor Capacitor
-
Tolerance:
-
+-5%(J),+-10%(K), ±5%(J), ±10%(K)
-
Material:
-
Metalized Polypropylene
-
Certificate:
-
CQC CUL VDE tuv
-
Color:
-
Optional
-
Temperature Coefficient:
-
25/70/21,25/85/21,40/70/21, 40/85/21
-
Package:
-
Cartons
-
Warranty:
-
2 Years
-
Keywords:
-
AC Motor Capacitor
-
Shipment method:
-
DHL UPS FEDEX TNT
-
Type:
-
Polypropylene Film Capacitor
-
Supplier Type:
-
Original manufacturer, ODM, Agency, Retailer
-
Media Available:
-
datasheet, Photo
-
Package Type:
-
Surface Mount
-
Specifications:
-
Not Applicable
-
Circuit Type:
-
Isolated
-
Application:
-
AC Motor
-
Operating Temperature:
-
25/70/21,25/85/21,40/70/21, 40/85/21
-
Description:
-
capacitor
-
Applications:
-
AC
-
Voltage - Rated:
-
110VAC~600VAC(50/60Hz)
-
Rated Voltage:
-
150VAC~600VAC
-
Capacitance:
-
1uf~100uf
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EPERS
-
Model Number:
-
CBB60
-
Product name:
-
CBB60 AC Motor Capacitor
-
Tolerance:
-
+-5%(J),+-10%(K), ±5%(J), ±10%(K)
-
Material:
-
Metalized Polypropylene
-
Certificate:
-
CQC CUL VDE tuv
-
Color:
-
Optional
-
Temperature Coefficient:
-
25/70/21,25/85/21,40/70/21, 40/85/21
-
Package:
-
Cartons
-
Warranty:
-
2 Years
-
Keywords:
-
AC Motor Capacitor
-
Shipment method:
-
DHL UPS FEDEX TNT
-
Type:
-
Polypropylene Film Capacitor
-
Supplier Type:
-
Original manufacturer, ODM, Agency, Retailer
-
Media Available:
-
datasheet, Photo
-
Package Type:
-
Surface Mount
-
Specifications:
-
Not Applicable
-
Circuit Type:
-
Isolated
-
Application:
-
AC Motor
-
Operating Temperature:
-
25/70/21,25/85/21,40/70/21, 40/85/21
-
Description:
-
capacitor
-
Applications:
-
AC
-
Voltage - Rated:
-
110VAC~600VAC(50/60Hz)
-
Rated Voltage:
-
150VAC~600VAC
-
Capacitance:
-
1uf~100uf
Product Description
Our Advantages
1.Laser Marking: The printing is clear and does not damage the case.
2.High Temperature Resistant Epoxy: Effectively prevent the air from entering, prevent the oxidation of the product, and ensure the use time of the product, conduct heat well.
3.Capacitor Core: Using the Nordic particles basilemma, Low dissipation, high insulation resistance, good self-healing character, strong over-carrier capacity, steady electric performance and small noise.
4. High Quality Lead: Good contact performance.
Applications
Specification
|
Safety approvals
|
CQL,UL,CUL,VDE,TUV
|
|
Implemented standard
|
GB/T3667.1,UL810,EN60252-1
|
|
Climatic category
|
25/70/21,25/85/21,40/70/21,40/85/21
|
|
Rated Voltage
|
150VAC~600VAC(50/60 HZ)
|
|
Capacitance range
|
0.1uf~100uf
|
|
Capacitance tolerance
|
±5%(J)，±10%(K）
|
|
Class of safety protection
|
CQC, VDE，TUV : S0, S3
|
