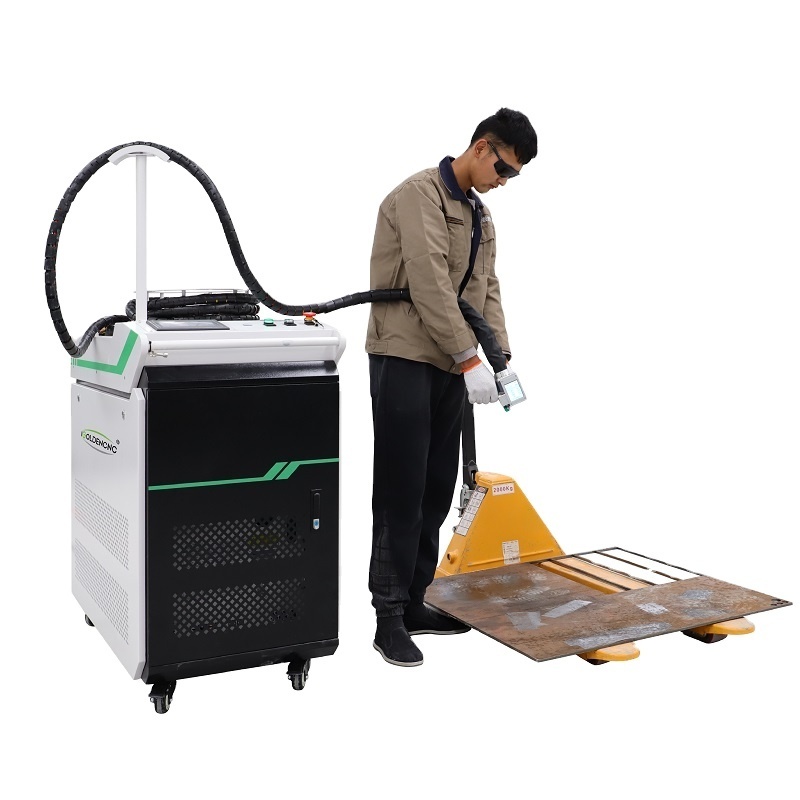

Laser cleaning machine is a new generation of high-tech products for surface treatment. It is green and environmentally friendly.
In recent years, laser cleaning machines have been widely used in automotive, mold, aerospace, 3C electronics, medical equipment, rail transit, steel manufacturing and other industries. The laser cleaning machine can clean rust, oil, paint, oxide layer, welds, etc. It is easy to operate and can remove resin oil stains, stains, dirt, glue, rust, decorating, and paint on the surface of objects
.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
igoldencnc
-
Dimension(L*W*H):
-
customized
-
Year:
-
2022
-
Weight (KG):
-
500 KG
-
Product name:
-
Fiber Laser Cleaning Machine
-
Application:
-
Metal Surface Cleaning
-
Laser Power:
-
50W/100W/200W/500W/1000W
-
Function:
-
Metal Rust Surface Laser Cleaning
-
Laser source:
-
IPG/MAX/JPT/Raycus
-
Cleanning result:
-
Excellent
-
Clean way:
-
Non-touch Laser Cleaning
-
Working temperature:
-
10~80
-
Use:
-
Cleaning
-
Cleaning Process:
-
Laser
Quick Details
-
Power:
-
500W, 3000W, 1500W, 1000W, 2000W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
JPT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
igoldencnc
-
Dimension(L*W*H):
-
customized
-
Year:
-
2022
-
Weight (KG):
-
500 KG
-
Product name:
-
Fiber Laser Cleaning Machine
-
Application:
-
Metal Surface Cleaning
-
Laser Power:
-
50W/100W/200W/500W/1000W
-
Function:
-
Metal Rust Surface Laser Cleaning
-
Laser source:
-
IPG/MAX/JPT/Raycus
-
Cleanning result:
-
Excellent
-
Clean way:
-
Non-touch Laser Cleaning
-
Working temperature:
-
10~80
-
Use:
-
Cleaning
-
Cleaning Process:
-
Laser
Product Overview
Equipment introduction：
The Features：
2. Precise cleaning, selective cleaning of precise location and precise size can be achieved;
3. Does not require any chemical cleaning solution, no consumables, safe and environmentally friendly;
4. The operation is simple, just power it on, and it can be held in hand with the robot to achieve automatic cleaning;
5. High cleaning efficiency, saving time and labor costs;
6. The laser cleaning system is stable, requires almost no maintenance, and saves costs.
PRODUCT SPECIFICATIONS
|
Model
|
iGCL-HC
|
|
Out Method
|
(CW) Continuous Wave
|
|
Operation method
|
Handheld/Automated
|
|
Laser power
|
1000W 1500W 2000W 3000W
|
|
Operating mode
|
7 types: straight line, rectangle, sine, double helix, circle, ring，free mode
|
|
Ranging function
|
The setting range is 0-1000mm
|
|
Light passing rate
|
≥98%
|
|
Laser power adjustment
|
10%-100% continuous gradient adjustable
|
|
Washing head weight
|
＜1.2Kg（Without QBH）
|
|
Scan width
|
0-300mm
|
|
Scanning frequency
|
Not less than 300Hz
|
|
Maximum scanning line speed
|
Max. 20m/s
|
|
Screen
|
Cabinet standard 7 inches + cleaning head standard 2.8 inches
|
|
Cable length
|
10 m (can customizable 20 m)
|
Sample
Application materials：
Paints and coatings on metal and glass surfaces; rust, oil, paint, resin, glue, dust, oxides, etc. on metal surfaces; stains on rubber surfaces.
Application industry：
Electronics industry, aviation industry, mold industry, automobile manufacturing and repair, shipbuilding industry, new energy industry, petrochemical industry, rail transit industry, video manufacturing industry, etc.
Product Details
Double-headed design, more convenient and efficient
The two cleaning heads have different cleaning modes, which can be freely selected according to needs.Green and environmentally friendly, no consumables are required;this not only means that laser cleaning is effective, but the cleaning process is environmentally friendly. In addition, it does not use chemical cleaning agents, thus avoiding the damage caused by chemical corrosion to the material.
Laser source and Chill
Laser source:
The laser source adopts water-cooled heat dissipation and rack-mounted chassis design. It has many advantages such as high electro-optical conversion efficiency, low energy consumption, compact structure, adjustment-free maintenance, and easy integration for customers. It is industrial laser cleaning and other ideal light source for application.
HANLI Chill:
1. The cooling capacity is up to 1400W, and environmentally friendly refrigerants can be used;
2. Small size, long life and durable easy to operate;
3. The temperature control accuracy can reach ±0.3℃；
4. The intelligent thermostat has two temperature control modes, which are suitable for different use occasions; it has a variety of setting and fault display functions;
5. With multiple alarm protection functions.
2. Small size, long life and durable easy to operate;
3. The temperature control accuracy can reach ±0.3℃；
4. The intelligent thermostat has two temperature control modes, which are suitable for different use occasions; it has a variety of setting and fault display functions;
5. With multiple alarm protection functions.
Why Choose Us
Packaging & Shipping
Recommend Products
FAQ
Q1: How to choose the right power?
A1:
The power of the machine is determined by materials processed.
You can tell us materials and thickness you want to process, our professional technicians will recommend the most suitable power for you.
Q2: If we have special needs and want to customize the machine, is this possible?
A2: Yes, please send us your requirements and our engineers will provide you with the suitable solution.
Q3: How do you guarantee quality?
A3: Our products have obtained CE certification. And we have a complete quality inspection process. A machine is only allowed to be packaged if it passes the inspection and there is no problem with the trial operation. And the machine has a two-year warranty.
Q4: Can you arrange the shipment for me ?
A4: Yes, of course we can. Our products have been shipped to dozens of countries and regions in the world, and we are very experienced. You can tell us the nearest port to you and the dedicated manager will check the freight for you and help you handle subsequent transportation.
