Quick Details
-
Product name:
-
Indoor and outdoor used guide rail elevator cargo lift
-
Transport package:
-
plywood case export sandard
-
Applicantion:
-
warehouse cargo lift
-
Feature:
-
explosion-proof
-
Voltage:
-
380v/415v or accept customized
-
HS code:
-
8428909090
-
Running mode:
-
Fixed
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Indoor and outdoor used guide rail elevator cargo lift
-
Transport package:
-
plywood case export sandard
-
Applicantion:
-
warehouse cargo lift
-
Feature:
-
explosion-proof
-
Voltage:
-
380v/415v or accept customized
-
HS code:
-
8428909090
-
Running mode:
-
Fixed

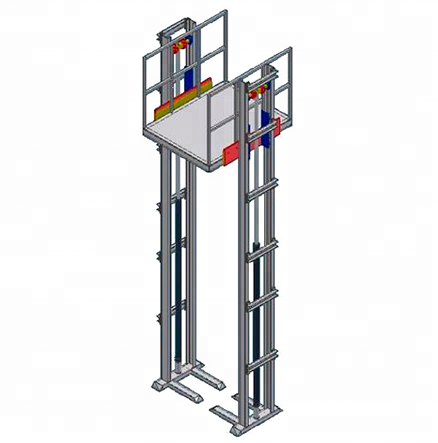

Good price Indoor and outdoor vertical platform lift used guide rail cargo lift platform for sale
Cargo lift is used for transfer cargo between different floors. Self-height is about 120-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operation.
Cargo lift provides fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of the machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.
|
Model |
Capacity |
Lifting height |
Platform size |
Pump station power |
Working voltage |
|
CL1-3 |
1ton |
3m |
2000*2500mm |
3kw |
380v 3phase 50hz |
|
Cl2-6 |
2ton |
6m |
2200*2800mm |
4kw |
380v 3phase 50hz |
|
Cl3-5 |
3ton |
5m |
2500*3000mm |
4kw |
380v 3phase 50hz |
|
Cl5-3 |
5ton |
3m |
3000*3500mm |
7.5kw |
380v 3phase 50hz |
|
Cl8-6 |
8ton |
6m |
2800*3000mm |
11kw |
380v 3phase 50hz |
|
Cl10-6 |
10ton |
6m |
3500*5000mm |
15kw |
380v 3phase 50hz |
|
All above accept customized according to customer's requirements |
|||||
|
ITEMS |
PARAMETERS |
|
Power Supply |
380 V ,3phase, 50HZ |
|
Motor Power |
3 KW/AC |
|
Platform Size |
2830 mm* 2760 mm |
|
Load Capacity |
2000 kg |
|
Lifting Speed |
3-5 m/min |
|
Min Height(Pit depth) |
350 mm |
|
Running Mode |
Jogging control |
|
Drive System |
Hydraulic driven |
|
Installation Mode |
No pit |
|
Extron Control Device |
The panel boxes are placed on the neighboring wall of the above/below floor. |
Installed in the pit or the ground floor to convey the goods from one working level to another. indoor or outdoor is ok. With a heavy duty, safe and reliable.
T he lift could be controlled at any floor. Control panels are available at the designated floors and one is on the lift platforms.
