Quick Details
-
Place of Origin:
-
Zhuzhou China, Zhuzhou China
-
Brand Name:
-
MLD
-
Model Number:
-
Carbide CNC Inserts
-
Material:
-
100% Virgin Raw Material
-
Finishing:
-
Fine Polished
-
Main Grades(ISO):
-
K10/K20/K30/K40 etc
-
Type:
-
Internal External Turning Tool
-
Main Applications:
-
Metal Working Turning Tool
-
Certificate:
-
ISO9001:2008
-
Advantage:
-
High Wear Resistance
-
Feature:
-
High Performance Cutting
-
Service:
-
OEM ODM
Quick Details
-
Use:
-
Turning Tool
-
Hardness:
-
HRA92
-
Coating:
-
PVD CVD
-
Place of Origin:
-
Zhuzhou China, Zhuzhou China
-
Brand Name:
-
MLD
-
Model Number:
-
Carbide CNC Inserts
-
Material:
-
100% Virgin Raw Material
-
Finishing:
-
Fine Polished
-
Main Grades(ISO):
-
K10/K20/K30/K40 etc
-
Type:
-
Internal External Turning Tool
-
Main Applications:
-
Metal Working Turning Tool
-
Certificate:
-
ISO9001:2008
-
Advantage:
-
High Wear Resistance
-
Feature:
-
High Performance Cutting
-
Service:
-
OEM ODM

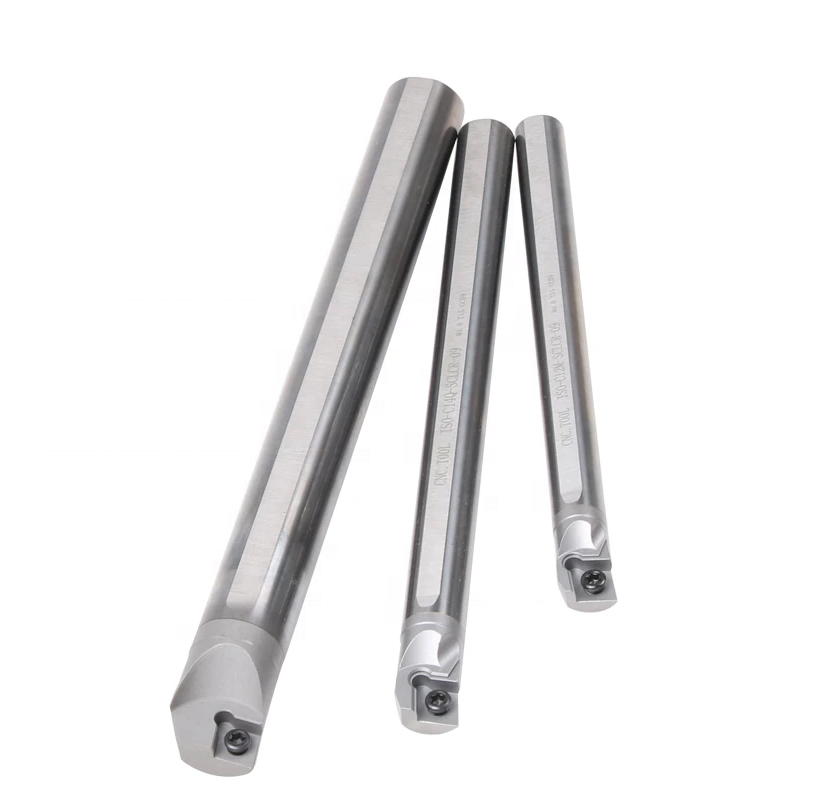

Tungsten Carbide Turning Insert & Tool Holder
Product Show
Tool holder Specification s
| NO | Specification | Length(mm) |
| 1 | C04G | 90 |
| 2 | C05H | 100 |
| 3 | C06J | 110 |
| 4 | C07K | 125 |
| 5 | C08K | 125 |
| 6 | C08M | 150 |
| 7 | C10K | 125 |
| 8 | C10M | 150 |
| 9 | C12M | 150 |
| 10 | C12Q | 180 |
| 11 | C14Q | 180 |
| 12 | C14R | 200 |
| 13 | C14S | 250 |
| 14 | C16Q | 180 |
| 15 | C16R | 200 |
| 16 | C16S | 250 |
| 17 | C16T | 300 |
| 18 | C18R | 200 |
| 19 | C18S | 250 |
| 20 | C20R | 200 |
| 21 | C20S | 250 |
| 22 | C20T | 300 |
| 23 | C25R | 200 |
| 24 | C25S | 250 |
| 25 | C25T | 300 |
| 26 | C25U | 350 |
| 27 | C32T | 300 |
| 28 | C32U | 350 |
| 29 | C32V | 400 |
| 30 | C32W | 450 |
Product Applications:
