- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
AINING AWS E6013 Welding Electrode
-
Model Number:
-
AWS E6013 Welding Electrode
-
Operating Current:
-
50-250A
-
Application:
-
mild carbon steel,alloy steel structure,and so on
-
Color:
-
Red,Green,Orange,grey
-
Transportation:
-
By sea ; by air
-
Certification:
-
ISO9001 ISO14001 BV
-
Business type:
-
manufacturer
-
Samples:
-
Free
-
Product Name:
-
Golden Bridge Welding Electrode Brand
Quick Details
-
Material:
-
Mild Steel Welding Electrode
-
Welding Current:
-
90-250A
-
Operating Temperature:
-
10-50℃
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
AINING AWS E6013 Welding Electrode
-
Model Number:
-
AWS E6013 Welding Electrode
-
Operating Current:
-
50-250A
-
Application:
-
mild carbon steel,alloy steel structure,and so on
-
Color:
-
Red,Green,Orange,grey
-
Transportation:
-
By sea ; by air
-
Certification:
-
ISO9001 ISO14001 BV
-
Business type:
-
manufacturer
-
Samples:
-
Free
-
Product Name:
-
Golden Bridge Welding Electrode Brand

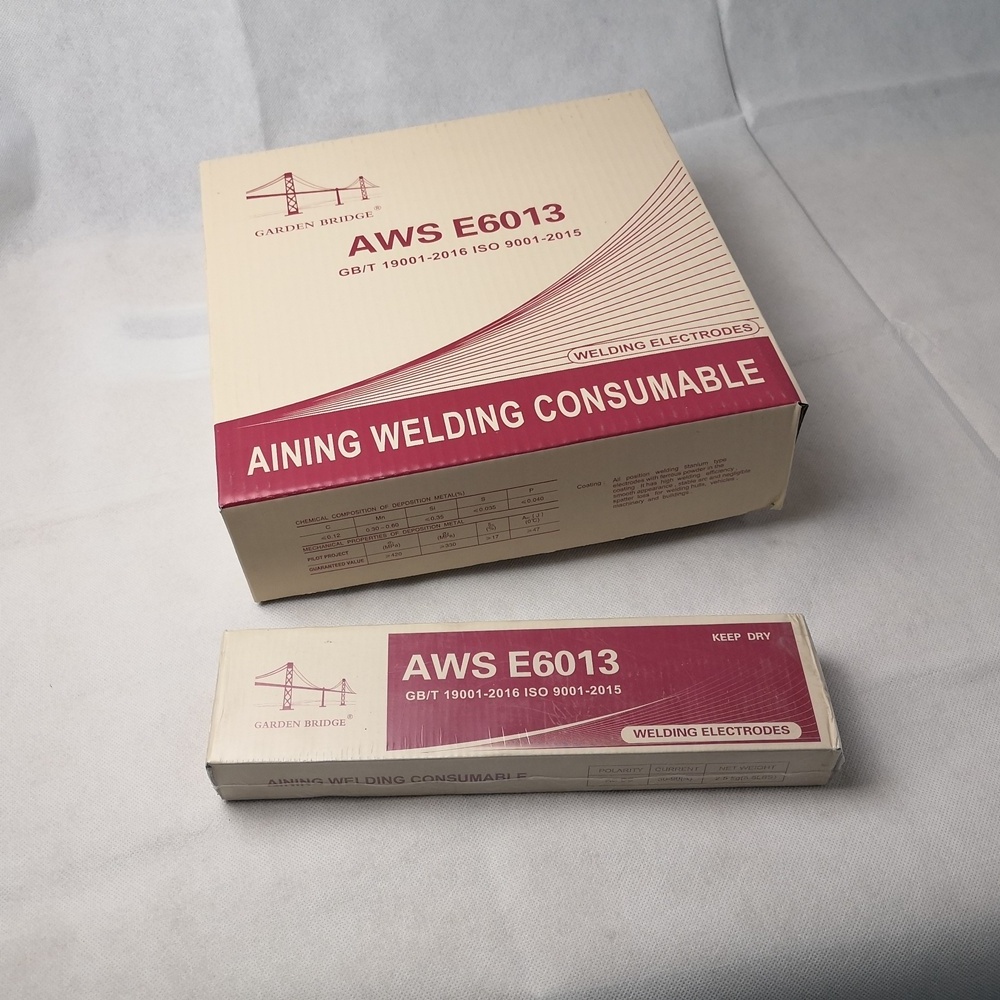

AWS E6013 Golden Bridge Welding Electrode Brands / E7018 Cast Iron Welding Rod 6013 Price
Welding electrode E6013 is a kind of mild steel welding rod with rutile sand or titanium type coating. The current can be AC or DC. Our welding electrode E6013 is able to provide both excellent welding and oper ating performance. It's easy to ignite and restrike the arc. The slag is fluid and when harded it
is impact and easy to remove. Besides it has less smoke. Our welding electrode E6013 can also provide fast melting rate, high deposition efficiency, more stable arc, less spatter and beautiful welding line shape.
Chemical Composition of Deposited Metal(%).
|
Chemical Composition |
C |
Mn |
Si |
S |
P |
|
Guarantee Value |
≤0.12 |
0.3-0.6 |
≤0.35 |
≤0.035 |
≤0.040 |
Mechanical Properties of Deposited Metal.
|
Test Item |
Rm(Mpa) |
Rel(Mpa) |
A(%) |
KV2(J) |
KV2(J) |
|
Guarantee Value |
≥420 |
≥330 |
≥17 |
-(normal temperature) |
-(0℃) |
|
Gegeral Result |
460-540 |
≥340 |
18-26 |
50-80 |
≥47 |
Welding electrode E7018 is a kind of carbon steel with iron powder of low hydrogen
potassium type coating.It can improve deposition efficiency because of the iron powder
i n the coating. Its arc is more stable with less spatter.It is easy to remove the residue.
It can provide both beautiful welding line shape and good deposited metal mechanical
performance.And the current can be AC or DC.It can be used for all position welding.
Chemical composition of deposited metal(%)
|
C |
Mn |
Si |
S |
P |
Ni |
Cr |
Mo |
V |
|
≤ 0.12 |
≤ 1.60 |
≤ 0.75 |
≤ 0.035 |
≤ 0.040 |
≤ 0.30 |
≤ 0.20 |
≤ 0.30 |
≤ 0.08 |
Reference current(AC,DC)
|
Diameter(mm) |
Φ 2.5 |
φ 3.2 |
Φ 4.0 |
Φ 5.0 |
|
Welding current(A) |
60-100 |
80-140 |
110-210 |
160-230 |
Welding electrode E6013 is widely used for welding low carbon steel structures, especially suitable for welding thin plates and cosmetic welding which requires the welding beads to be beautiful and glossy. It is sutable for all position welding. Welding Electrode E6013 is often used for welding structure of steel sheets, vehicles, buildings, vessels, machinery-manufacture and various structures of low carbon steel. It has excellent fabrication weldability, suitable for welding on the plate of low carbon steel or light stru cures where beautiful bead appearance is requested.
1 Easy to ignite and restrike the arc.
2 More stable arc, Less spatter.
3 High deposition efficiency.
4 Beautifu welding line shape.
1 Professional service for products.
2 Much more competitive price.
3 Honest and excellent supplier.
4 On-time delivery.
5 We believe the good quality is the basis for cooperation.
6 We can provide free samples to you for test.
7 Our company policy is Qulaity First and to establish Long Term business not just for one time.
| Factory Size (Sq.meters): | 5,000-10,000 square meters | |
| Factory Location: | East Gaoqian Street, Sijiazhuang Town, Luquan Shijiazhuang city Hebei province China | |
| Number of Production Lines: | 6 | |
| Number of R&D Staff: | 10-15 People | |
| Number of QC Staff: | 10-15 People | |
| Contract Manufacturing: | OEM Service Offered Design Service Offered |
We maily produce and export the following products:
Carbon steel strcture welding rods ,like E6013 E7018 E6010 E6011 E7016,
Stainess steel electrode, Cast iron electrode.
We can satisfy customers' needs according to their national standards:
2.0*300mm, 2.5*300mm
2.5*350mm, 3.2*350mm
4.0*400mm, 5.0*400mm
MIG welding wire,Flux-cored welding wire,Sumbered arc welding wire,
CO2 Gas Shielded Welding Wire,ect.
We can also provide nearly every national standards:
AWS ER70S-6 0.8MM, 1.0MM, 1.2MM, 1.6MM.
