12000lbs Heavy Duty Square Tube Trailer Jack Truck Support Jack Drop Leg High Quality

12000lbs Heavy Duty Square Tube Trailer Jack Truck Support Jack Drop Leg High Quality

FOB Reference Price: Get Latest Price

≥30 Pieces

US $57.35

≥150 Pieces

US $52.94

≥300 Pieces

US $48.53

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: N/A

Material:: Steel

MOQ:: 30

Finish:: Black Power Coated

Certificate:: ISO9001:2008

Unit Weight:: 61.6 lbs

Travel Distance:: 12.5"

Handle Style:: Side Wind

Quick Details

Max Payload:: 12000 lbs

Size:: 28.5" Retracted Height

Place of Origin:: Ningbo, China

Brand Name:: N/A

Material:: Steel

MOQ:: 30

Finish:: Black Power Coated

Certificate:: ISO9001:2008

Unit Weight:: 61.6 lbs

Travel Distance:: 12.5"

Handle Style:: Side Wind

PRODUCT OVERVIEW

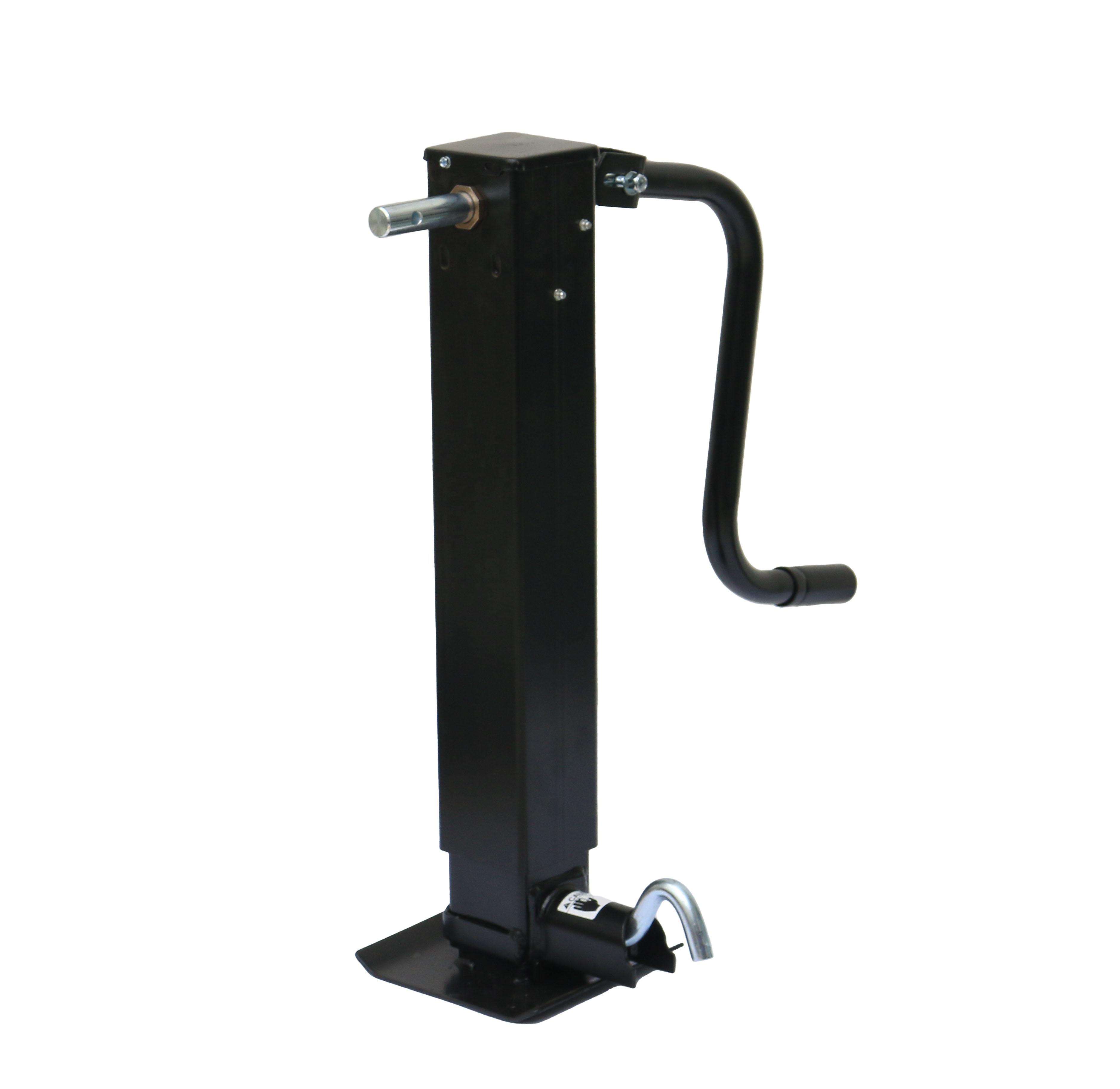

Item Name			Heavy Duty Square Tube Jack with Spring Return



Part Number			TJD-12000SP-F2
Packaging			Metal Crate/Wooden Crate
Warranty			1 Year
MOQ			30 Pieces
Payment Method			T/T, L/C, Western Union
Lead Time for Shipment			1-3 days for items in stock; 30-60 days for production order
Certification			ISO: 9001

PRODUCT SPECIFICATION

Heavy Duty Square Tube Jack

Support Capacity: 12000 lbs

Lift Capacity: 10000 lbs

Travel Distance: 12.5"

Retracted Height: 28.5"

Total Adjustment: 25.5"

Finish: Black Powder Coating

Bevel on shaft end eliminates sharp metal edge; Large octagon brass bushing for better function.

Clip welded to the trailer to secure handle during transit; Handle with bolt and nut mounted to the sidewind jack.

DETAILED IMAGES

From Left to Right: TJD-12000SP-R2, TJD-12020SP-R2, TJD-12020SP-F2, TJD-12000SP-F2

SIMILAR PRODUCTS

	Support Capacity (lbs)	Lift Capacity (lbs)	Travel Distance	Total Adjustment
TJD-12000 Series	12000	10000	12.5"	25.5"

Direct Weld with Spring Return

Part Number	Handle Style	Retracted Height	Description	Unit Weight
TJD-12000TWSP-F	TopWind	23.5"	Pin to front, handle, mounting hardware and clip included	54 lbs
TJD-12000SP-F2	SideWind	28.5"	Pin to front, handle, mounting hardware and clip included	61.6 lbs
TJD-12000SP-F2NH	SideWind	28.5"	Pin to front, handle not included	58.1 lbs
TJD-12000SP-R2	SideWind	28.5"	Pin to side, handle, mounting hardware and clip included	61.6 lbs
TJD-12000SP-R2NH	SideWind	28.5"	Pin to side, handle not included	58.1 lbs

PACKING & DELIVERY

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

COMPANY PROFILE

With over twenty-year experience building high quality trailer parts, Tianyi has become one of the largest trailer parts
manufacturers in the country. Besides around 200 employees, over 350,000 square feet of manufacturing space and over 10 different production lines, we also have professional R&D team and Reliability team focusing on tool design and quality control. Then, you can be assured we have the experience and know how to build the right part for you.

As large as we've grown though, service is still of the utmost importance to us. We manufacture, sell direct to our customers and handle service after the sale all within the same company. This saves you money and makes sure we are there for you after your purchase. Our cargos are exported to North America, Japan and Australia. We are continuously exploring new long-term customers and looking forward to hearing from you.

Contact us today!

YOU MIGHT ALSO LIKE

FAQ

Q: What are your terms of payment?
A: T/T 30% as deposit, 70% before delivery. We’ll show you the products’ and the packages’ photos before you pay the balance.
Q: What are your terms of packaging?
A: The goods will be packaged in plywood crates, metal crates or cartons. We can discuss further based on your requirement.
Q: What are your terms of delivery?
A: FOB is preferred.
Q: What is your lead time for delivery?
A: It takes 30 to 60 days for products to be ready for shipment as we receive your deposit.
Q: What is your sample policy?
A: Customer needs to pay the sample costs and shipping fees. These costs will be deducted from the total price if you place an order.
Q: Can you make mass production according to our needs?
A: Yes. We can build the mold and fixture if you send us samples or drawings.
Q: Can you put my logo on the product?
A: Yes, we provide OEM/ODM service.
