0°~35° is soft closing, 35°~105° is any hovering, avoid to hurt the board and better improve hinge working life span.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TOPCENT
-
Model Number:
-
CH.2619/2618/2617
-
Commodity:
-
Self Close Two way cabinets door concealed hinges
-
Material:
-
Cold-rolled steel
-
Finish:
-
Nickel
-
Diameter of hinge cup:
-
35mm
-
Depth of hinge cup:
-
11.3mm
-
Door thickness:
-
14-23mm
-
Openning angle:
-
110°
-
OEM Technical support:
-
Welcome
-
Factory:
-
Over 30 years' production experience
Quick Details
-
Application:
-
Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and kids, Outdoor, Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOPCENT
-
Model Number:
-
CH.2619/2618/2617
-
Commodity:
-
Self Close Two way cabinets door concealed hinges
-
Material:
-
Cold-rolled steel
-
Finish:
-
Nickel
-
Diameter of hinge cup:
-
35mm
-
Depth of hinge cup:
-
11.3mm
-
Door thickness:
-
14-23mm
-
Openning angle:
-
110°
-
OEM Technical support:
-
Welcome
-
Factory:
-
Over 30 years' production experience
Specification
|

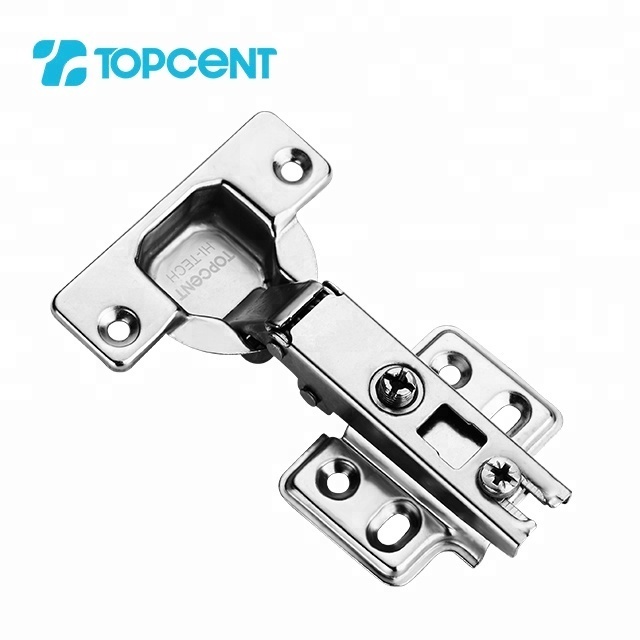

Two way concealed hinge
|
|
|
|
Material
|
Cold-rolled steel
|
|
|
Finish
|
Nickel
|
|
|
Door thickness
|
14-23 mm
|
|
|
Opening angle
|
100°
|
|
|
Diameter of hinge cup
|
35 mm
|
|
|
Weight
|
60±2 g
|
|
|
Function
|
Self closing
|
|
|
OEM Technical Support
|
Welcome
|
|
|
||
|
Installation
|
Slide on system / Screw fixing / Press-in fixing
|
|
|
||
|
Opening & closing test
|
More than 50,000 times
|
|
|
||
|
Salt spray test
|
More than 48 hours
|
|
|
||
|
Annual production
|
360,000,000 pcs per year
|
|
|
||
|
Optional
Accessories
|
Cup cover cap / Arm cover cap / Self - tapping Screws
|
|
|
||
Product Information
Two way mechanism
Updated screw
This screw on the hinge is not easy to move when adjusting this screws.
Big Pin
Big pin design make more power when it open and close, the hinge can not broken easily.
Adjustable screw
Side adjustment ±3 mm
Depth adjustment ±3 mm
Quality assurance
50,000 times Life cycle test
48 hours salt & spray test
Full-overlay
CH.2619
Half-overlay
CH.2618
Inset
CH.2617
