Quick Details
-
Brand Name:
-
Dong Fang Zhi Guang
-
Use:
-
FTTH, FTTH
-
Warranty Time:
-
1 Years
-
Test wavelength:
-
1310nm
-
Working wavelength:
-
1260nm~1650nm
-
Interface model:
-
SC/UPC
-
Operating temperature:
-
-40-75℃
-
Features:
-
Good temperature stability
-
Brand:
-
Dong Fang Zhi Guang
-
Model:
-
FOS1-2PSC1
Quick Details
-
Type:
-
Testers &Tools
-
Model Number:
-
FOS1-2PSC1
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Dong Fang Zhi Guang
-
Use:
-
FTTH, FTTH
-
Warranty Time:
-
1 Years
-
Test wavelength:
-
1310nm
-
Working wavelength:
-
1260nm~1650nm
-
Interface model:
-
SC/UPC
-
Operating temperature:
-
-40-75℃
-
Features:
-
Good temperature stability
-
Brand:
-
Dong Fang Zhi Guang
-
Model:
-
FOS1-2PSC1
Product Description

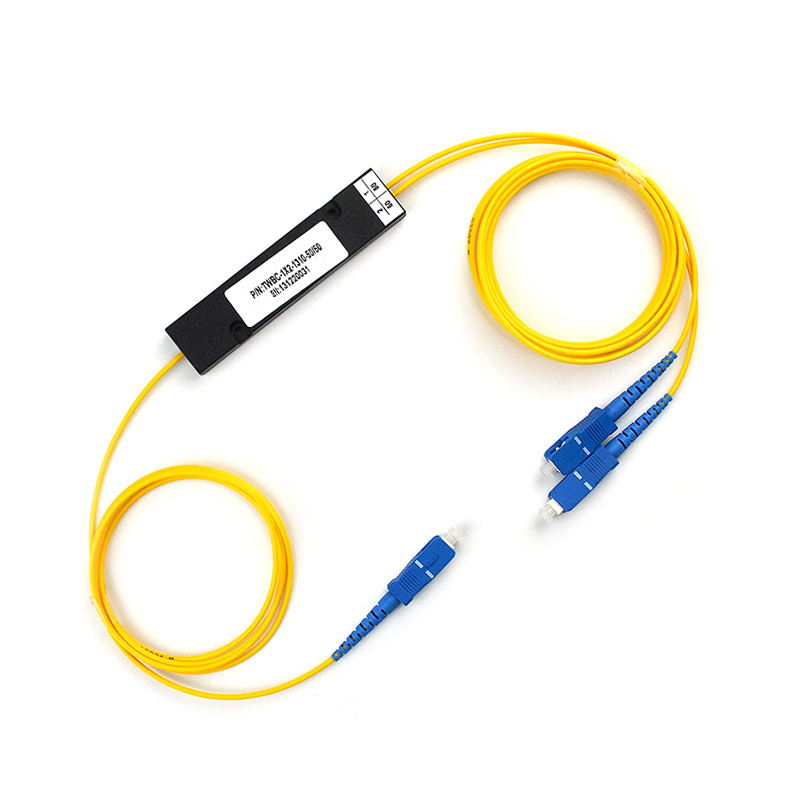

Promotional Price FTTH SC Connector 1x2 Pigtail Fiber Optical Splitter
Description:
PLC splitter is based on plannar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently.
Features:
Excellent Mechanical,Small Size
High Reliability
Low insertion Loss and low Polarization Dependent loss
High channel counts
Excellent Environmental Stability and Widely Used
Applications:
FTTH,FTTB,FTTX Systems
LAN,WAN and Metro Networks
Analog/Digital Passive Optical Networks
CATV Networks
Test Equipment
Other applications in fiberoptic systems
|
Types
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
||||
|
Test wavelength
|
1310nm
|
|
|
|
|
||||
|
Working wavelength
|
1260nm~1650nm
|
|
|
|
|
||||
|
Interface model
|
SC/UPC
|
|
|
|
|
||||
|
Insertion loss (dB) (P/S level)
|
3.8/4.0
|
7.1/7.3
|
10.2/10.5
|
13.5/13.7
|
16.5/16.9
|
||||
|
Loss uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
||||
|
Return loss (dB) (P/S level)
|
55/50
|
55/50
|
55/50
|
55/50
|
55/50
|
||||
|
Polarization dependent loss (dB)
|
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
||||
|
Directionality (dB)
|
55
|
55
|
55
|
55
|
55
|
||||
|
Wavelength dependent loss (dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
||||
|
Temperature stability (dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
||||
|
Features
|
Good temperature stability
Low insertion loss, high return loss
Good interchangeability, good repeatability
|
|
|
|
|
||||
