Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Hitrees
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
3000 KG
-
Product name:
-
spiral freezer
-
Port:
-
Tianjin,ShangHai, Qingdao, GuangZhou
-
Application:
-
Food Quick Frozen Machine
-
Freezer Type:
-
Belt IQF Freezer
-
Door:
-
Swing
-
Compressor Brand:
-
Bizter
-
Function:
-
Individual Quick Freezing
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Nigeria
-
Certification:
-
Customized
Quick Details
-
Voltage:
-
Customized
-
Power:
-
Customized
-
Cooling Capacity:
-
Customized
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Hitrees
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
3000 KG
-
Product name:
-
spiral freezer
-
Port:
-
Tianjin,ShangHai, Qingdao, GuangZhou
-
Application:
-
Food Quick Frozen Machine
-
Freezer Type:
-
Belt IQF Freezer
-
Door:
-
Swing
-
Compressor Brand:
-
Bizter
-
Function:
-
Individual Quick Freezing
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Nigeria
-
Certification:
-
Customized
Product Overview

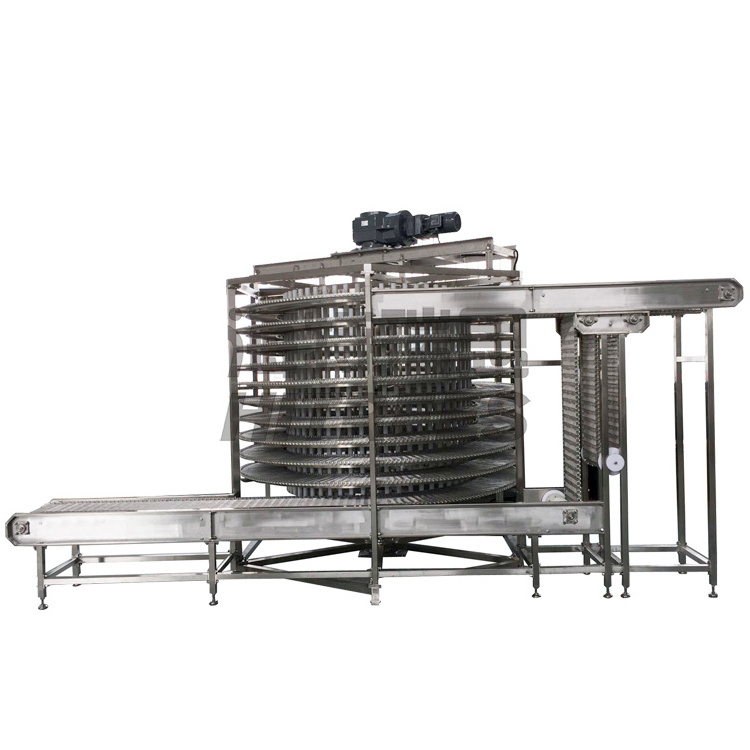

The spiral freezer is a high-efficiency quick freezing device with compact structure. It is mainly used for quick-freezing
processing of pasta, seafood, poultry, vegetables, fruits, dairy products and other foods. The rapid freezing does not produce large ice crystals. The quality and freshness of the food remain maximized as original. The surface of the food quickly hardens and crusts, which can lock the internal moisture and minimize the drying loss of frozen products. The freezing time is extremely short and the energy consumption is low. Under the premise of same capacity, it has less space requirement than the traditional quick freezer.
processing of pasta, seafood, poultry, vegetables, fruits, dairy products and other foods. The rapid freezing does not produce large ice crystals. The quality and freshness of the food remain maximized as original. The surface of the food quickly hardens and crusts, which can lock the internal moisture and minimize the drying loss of frozen products. The freezing time is extremely short and the energy consumption is low. Under the premise of same capacity, it has less space requirement than the traditional quick freezer.
Single Drum Spiral Freezer
|
No.
|
Model
|
Output
|
Dimension L*W*H
|
Belt Width
|
|
1
|
SF200
|
200Kg/h
|
4.0*3.3*2.1m
|
300mm
|
|
2
|
SF300
|
300Kg/h
|
4.9*4.1*2.5m
|
450mm
|
|
3
|
SF500
|
500Kg/h
|
5.6*4.0*2.9m
|
450mm
|
|
4
|
SF1000
|
1000Kg/h
|
6.8*5.0*3.3m
|
600mm
|
|
5
|
SF1500
|
1500Kg/h
|
6.8*5.2*4.5m
|
600mm
|
Double Drum Spiral Freezer
|
No.
|
Model
|
Output
|
Dimension L*W*H
|
Belt Width
|
|
1
|
DF1000
|
1000Kg/h
|
4.5*5.5*3.0m
|
450mm
|
|
2
|
DF1500
|
1500Kg/h
|
9.6*6.8*2.6m
|
600mm
|
|
3
|
DF3000
|
3000Kg/h
|
9.6*6.8*4.2m
|
600mm
|
FEATURES AT A GLANCE
Electric Control Panel
Stainless steel 304 electric control box.The running speed of the mesh belt can be controlled by an inverter. The freezing time can be adjusted at will.
Inner Structure
The friction parts between the mesh belt and the guide rail are all made of ultra-high molecular polyethylene material
makes the drum more reliable when contacting and separating from the mesh belt to ensure the safety of frozen products.
Stainless Steel Conveyor Belt
The conveyor belt is made of food-grade 304 stainless steel, which has flat surface and ensures hygienic requirements. The conveyor belt will be equipped with protective edges both sides, which can prevent the products from dropping down from the belt during operation.
Successful Project
Project in South Korea
Project in USA
Project in Mexico
Packing
