ZTRFM Metal Profile CD UD UW CW Roll Forming Machine c Channel Roll Forming Machine Frame Steel Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $12000

≥2 Sets

US $11000

≥5 Sets

US $9000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ZTRFM

Voltage:: 380V 50HZ 3Phase

Power:: 7 KW

Dimension(L*W*H):: 6800mm*800mm*1200mm

Weight:: 3200 kg

Product name:: Metal Profile CD UD UW CW Roll Forming Machine

Number:: 12 rollers

Diameter of axis:: 50mm

Frame:: UD CD UW CW Profiles

Drive mode:: gear

Main axle material:: 45# steel

speed:: 0-40m/min

Control system:: Siemens Control System

power:: 7.5kw

Material of axis:: 45#steel

Quick Details

Marketing Type:: New Product 2023

Production Capacity:: 10-25m/min

Place of Origin:: Hebei, China

Brand Name:: ZTRFM

Voltage:: 380V 50HZ 3Phase

Power:: 7 KW

Dimension(L*W*H):: 6800mm*800mm*1200mm

Weight:: 3200 kg

Product name:: Metal Profile CD UD UW CW Roll Forming Machine

Number:: 12 rollers

Diameter of axis:: 50mm

Frame:: UD CD UW CW Profiles

Drive mode:: gear

Main axle material:: 45# steel

speed:: 0-40m/min

Control system:: Siemens Control System

power:: 7.5kw

Material of axis:: 45#steel

ZTRFM Metal Profile CD UD UW CW Roll Forming Machine c Channel Roll Forming Machine Frame Steel Machine

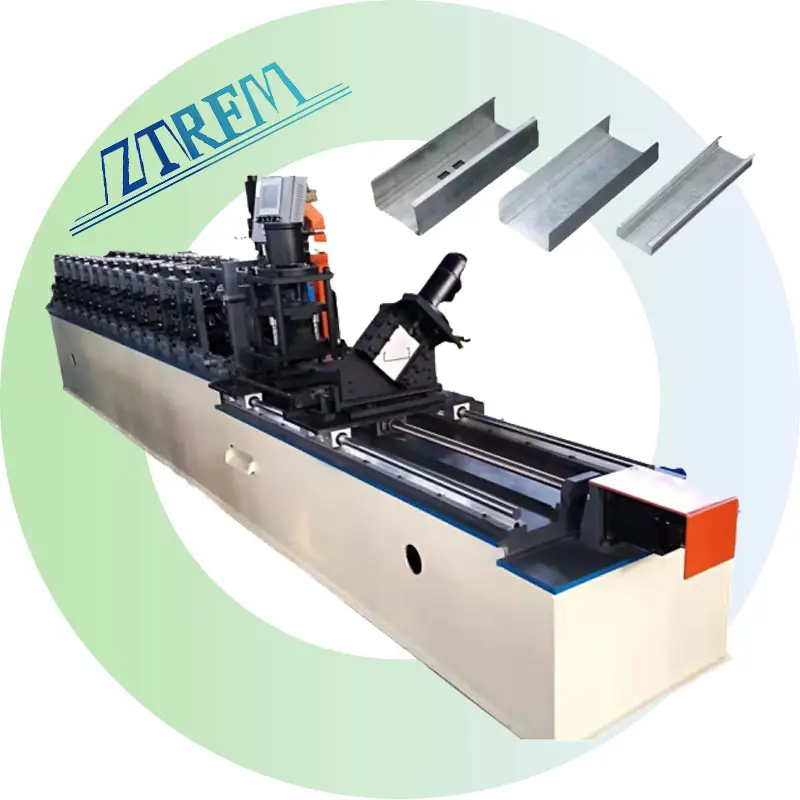

This Metal Profile CD UD UW CW Roll Forming Machine c Channel Roll Forming Machine Frame Steel Machine is for making the stud and tracks for house frame.Usually have the CU,CW for the wall frame building,and CD/UD for the ceil building.

Profile drawing for reference:

Working flow:

ZTRFM Metal Profile CD UD UW CW Roll Forming Machine c Channel Roll Forming Machine Frame Steel Machine
Formed Material	PPGI,GI,AI,color steel
Thickness	0.3-1.5mm
Roller station	10-20 rowsAs your requirement)
Diameter of shaft	50 mm solid shaft
Material of rollers	45# steel, hard chrome plated on the surface
Machine body frame	350 H steel
Drive chain	1.2inch(As your requirement)
Cutter	cr12mov material, no scratches, no deformation
Motor Power	5.5KW
Hydraulic system power	7.5KW
Voltage	380V 50Hz 3Phase(As your requirement)
Control system	PLC
Forming Speed	40m/min(customized)

Manual Decoiler

1. Capacity: 5 tons
2. Coil inner diameter: 450-550mm
3. Coil outer diameter: 1500mm
4. Coil width: 1250mm(as customers' profile drawing)
5. Structure: welded by the steel plates and profiled bar.

Entry Beach

Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

Roll forming machine

Feature: Ensure stability, precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Shearing machine

1. Hydraulic motor power: 3kw
2. Tolerance: 1mm
3. Blade mould material: GCr12MoV

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Hydraulic Station

1. Hydraulic motor Power: 3kw
2. Hydraulic oil: 46#
3. Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And three sets of electromagnetism valves.
