Quick Details
-
Fork Length:
-
920mm-2000mm, 1070/1220mm optional
-
Fork Width:
-
100-150mm
-
Overall Dimensions:
-
1800*955*2015mm
-
Weight (KG):
-
2700 kg
-
Mast:
-
2 Stage/3 Stage
-
Color:
-
Accept Customized
-
tire:
-
solid tire
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
Haichi
-
Fork Length:
-
920mm-2000mm, 1070/1220mm optional
-
Fork Width:
-
100-150mm
-
Overall Dimensions:
-
1800*955*2015mm
-
Weight (KG):
-
2700 kg
-
Mast:
-
2 Stage/3 Stage
-
Color:
-
Accept Customized
-
tire:
-
solid tire
Product Description

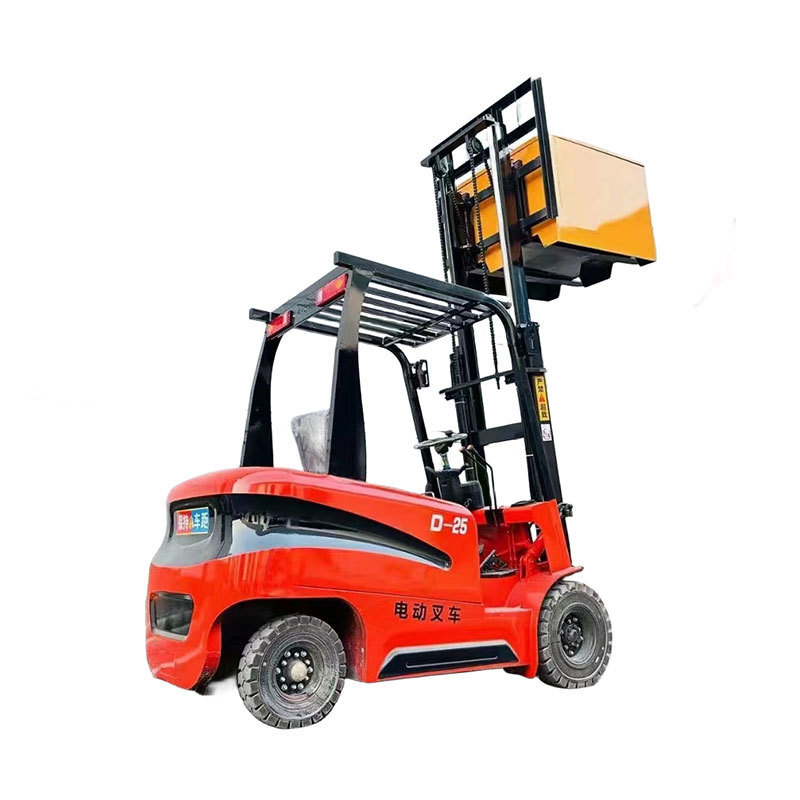

Our Chinese manufacturer new energy lead-acid battery electric forklift, pollution-free
Full-floating integrated heavy-duty low-speed drive axle
Lighting lights, left and right turn signals, brake lights, running lights, instruments, electric horns
Thickened one-piece stamping body, Anti-slope high power controller
High Quality Solid Tyres
Thickened G-shaped steel mast for forklift
Hand brake, oil brake
Specification
|
Lifting weight/Model No
|
1.2ton
|
1.5ton
|
1.8ton
|
2ton
|
2.5ton
|
3ton
|
|
Overall Dimension(L*W*H)
|
2300*1200*2150mm
|
2400*1200*2150mm
|
2450*1200*2200mm
|
2300*1200*2300mm
|
2450*1200*2200mm
|
2500*1200*2300MM
|
|
Power
|
5000W AC motor
|
5000W AC motor
|
5000W AC motor
|
5000w AC motor
|
5000W AC motor
|
5000W AC motor
|
|
Operating voltage
|
60V
|
60V
|
60V
|
60V
|
60V
|
60v
|
|
Machine Weight
|
2000kg
|
2300kg
|
2400kg
|
2700kg
|
3100kg
|
4000KG
|
|
Load Centre
|
500mm
|
500mm
|
500mm
|
500mm
|
500mm
|
500mm
|
|
Lift Height
|
3000mm
|
3000mm
|
3000mm
|
3000mm
|
3000mm
|
3000mm
|
|
Fork Size(LxW*H）
|
1220x120x40mm
|
1220x120x40mm
|
1220x120x40mm
|
1220x120x40mm
|
1220x120x40mm
|
1220x120x40mm
|
|
Climbing performance
|
30degree
|
30degree
|
30degree
|
30degree
|
30degree
|
30degree
|
|
Mast Tilt Angle(Empty/full load)
|
6°/12°
|
6°/12°
|
6°/12°
|
6°/12°
|
6°/12°
|
6°/12°
|
|
Battery
|
5 pieces of lead acid
|
5 pieces of lead acid
|
5 pieces of lead acid
|
5 pieces of lead acid
|
10 pieces of lead acid
|
80 catties of water and electricty
|
|
Steering system
|
hydraulic power
|
hydraulic power
|
hydraulic power
|
hydraulic power
|
hydraulic power
|
hydraulic power
|
|
Front tyre
|
solid tyre 6.50-10B
|
solid tyre 6.50-10B
|
solid tyre 6.50-10B
|
solid tyre 6.50-10B
|
solid tyre 6.50-10A
|
solid tyre 6.50-10B
|
|
Rear tyre
|
solid tyre 5.00-8
|
solid tyre 5.00-8
|
solid tyre 5.00-8
|
solid tyre 5.00-8
|
solid tyre 5.00-8
|
solid tyre 5.00-8
|
|
Cylinder
|
double oil cylinder
|
double oil cylinder
|
double oil cylinder
|
double oil cylinder
|
double oil cylinder
|
double oil cylinder
|
|
counterweight
|
concrete
|
concrete
|
concrete
|
concrete
|
concrete
|
concrete
|
|
charging time
|
4-6hours
|
4-6hours
|
4-6hours
|
4-6hours
|
4-6hours
|
4-6hours
|
