Quick Details
-
Weight (KG):
-
5 KG
-
Application:
-
Laser Engraving
-
Product name:
-
450nm laser galvanometer laser galvo scanner
-
Wavelength:
-
450nm
-
Material:
-
Aluminum
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
-
-
Brand Name:
-
Superwave
-
Weight (KG):
-
5 KG
-
Application:
-
Laser Engraving
-
Product name:
-
450nm laser galvanometer laser galvo scanner
-
Wavelength:
-
450nm
-
Material:
-
Aluminum
-
After Warranty Service:
-
Video technical support

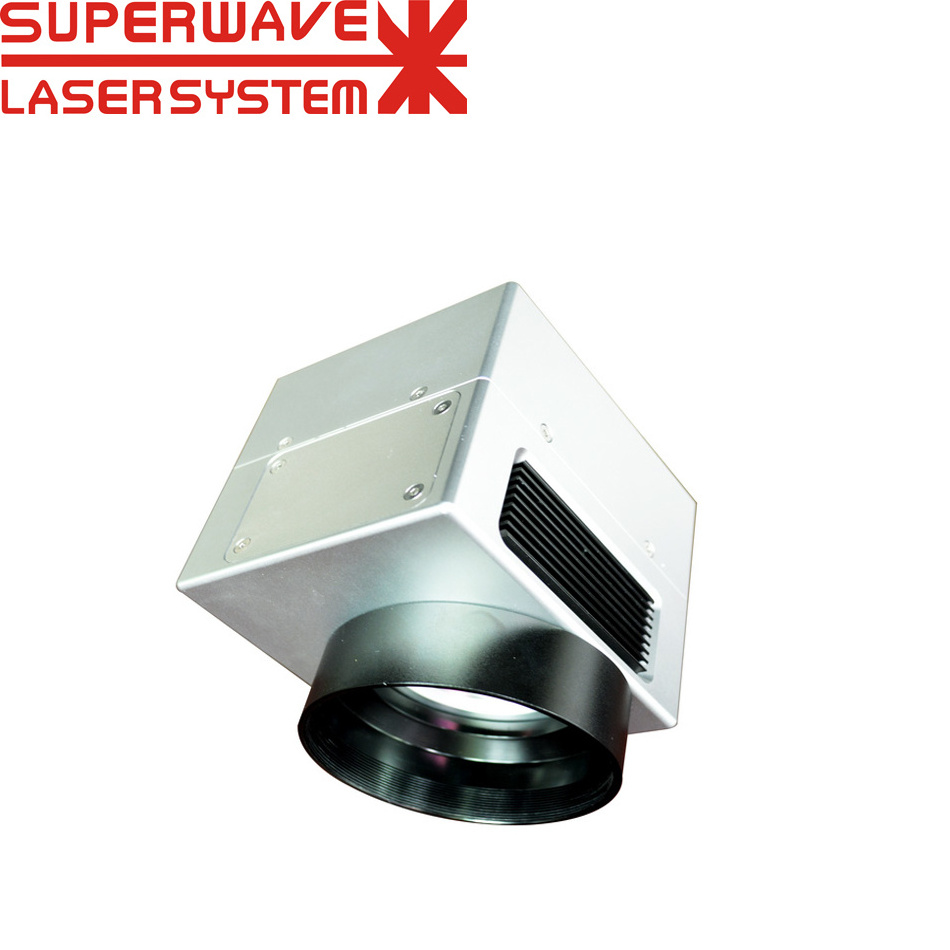

355 Scanner With 10mm Aperture 1064nm Laser Galvanometer Laser Galvo Scanner
Parameters:
|
Super High-speed Scanner Head Specifications for High-speed Galvanometer Scanner |
|
|
Specifications for Driver |
|
|
Input Voltage Requirement |
±24VDC 4AMX.RMS |
|
Analog Signal Input Resistance |
200K±1%Ω |
|
Position Signal output Resistance |
1k ±1% Ω |
|
Analog position Signal Input Range |
±10V(Max) |
|
Position Signal Input Scale Factor |
0.5 V/° |
|
Position Signal Output Scale Factor |
0.5 V/° |
|
Oprating Temperature Range |
0°C--40°C |
|
Diver Board Dimensions(LxWxH)mm |
80x55x32 |
|
Specifications for Motor |
|
|
Setting Time |
±0.45ms |
|
Linearity |
99.9% |
|
Scale Drift |
40PPM/°C |
|
Zero Drift |
15µRad./°C |
|
Repeatability |
8µRad |
|
RMS Current |
3A(Max) |
|
Peak Current |
20A(Max) |
|
Optical Aperture(standard) |
Φ10mm |
|
Maximum Scan Angle |
±15° |
|
Weight |
110g |
|
Operating Temperature Range |
25°C±20° |
|
Marking speed |
500CH/S |
|
Marking Accuracy |
≤0.2mm drift |
Pictures:
