Quick Details
-
Production Capacity:
-
60 bags/min
-
Weight (KG):
-
300
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Chenbao
-
Dimension(L*W*H):
-
1200*1060*2030mm
-
Main Function:
-
Weighing Forming Filling Sealing
-
Bag type:
-
Back Sealing
-
Keyword:
-
Flow Packaging Machinery
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing, counting
-
Packaging Type:
-
Film
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
60 bags/min
-
Weight (KG):
-
300
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Chenbao
-
Dimension(L*W*H):
-
1200*1060*2030mm
-
Main Function:
-
Weighing Forming Filling Sealing
-
Bag type:
-
Back Sealing
-
Keyword:
-
Flow Packaging Machinery
-
After-sales Service Provided:
-
Online Support

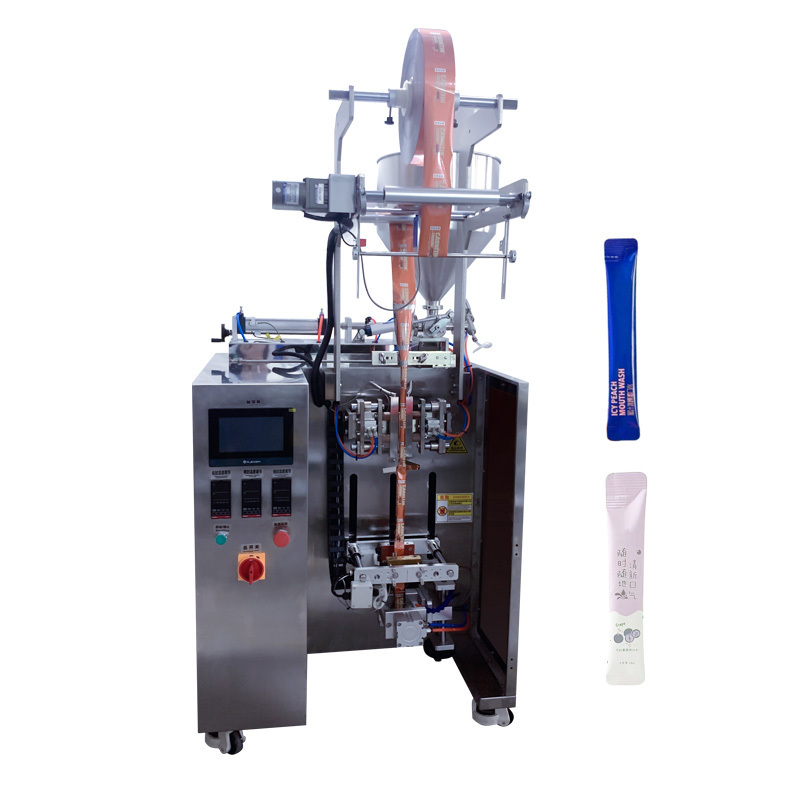

S pecial-shaped liquid and sauce packaging machine
CB - JBY
Weighing-----Wrapping-----Filling-----Sealing
(1)Suitable for:
It is suitable for measuring packaging of liquid, paste and other materials in medicine, daily chemical and food industries, such
as shampoo, shower gel, face cream, fruit juice, jam, Chinese medicine, etc.
(2)C haracteristic :
1, It can automatically complete bag making , metering, feed ing, sealing, slitting, counting, and print batch number according to customer requirements.
2. The 7-inch touch screen is operated in Chinese and English. The operation is simple and intuitive. The PLC control system operates more stably. The stepping motor controls the bag l ength. The bag length setting is convenient and stable, with stable performance, convenient adjustment and accurate detection. The intelligent temperature controller PID automatically adjusts the temperature control to control the error range of temperature within 1 ℃ .
3 . Screw me tering device, 304 stainless steel material, in line with food grade requirements, transparent visual window, real-time observation of material conditions, small measurement error. Match the corresponding screw according to the material to achieve high precision and high efficiency.
4. Packaging materials: Polypropylene/PE, aluminum foil/PE, polyester/aluminized/PE, nylon/enhanced PE, paper/PE, etc.
(3)Parameter:
|
Model |
CB-JBY
|
|
Bag size |
L 30 - 150 mm W 15-110 mm |
|
Metering Scope |
2-500ml ( according to material ) |
|
Feeding method |
Pneumatic pump |
|
Packing speed |
20-60 bags / min ( according to material )
|
|
Sealing type |
back seal |
|
Total power |
220V/50HZ/ 1 . 4 KW |
|
Weight |
25 0KG |
|
Overall dimension |
1200*1060*2030 mm
|
(4)Final product:
