Quick Details
-
Product name:
-

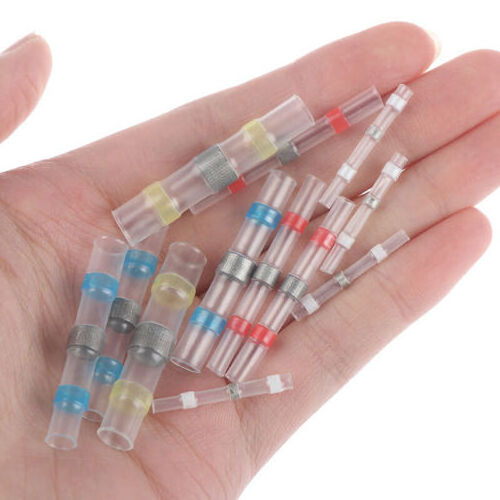

Heat Shrink Solder Sleeve / tubing
-
Certificate:
-
ROHS
-
Standard Color:
-
Red Blue Yellow White
-
Shrink ratio:
-
2:1
-
Working temperature:
-
- 55℃~125℃
-
Feature:
-
Waterproof
-
Glue:
-
With glue
-
Solder began to melt temperature:
-
125℃
-
Solder completely melt temperature:
-
150℃
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DEEM
-
Model Number:
-
DS-R
-
Product name:
-
Heat Shrink Solder Sleeve / tubing
-
Certificate:
-
ROHS
-
Standard Color:
-
Red Blue Yellow White
-
Shrink ratio:
-
2:1
-
Working temperature:
-
- 55℃~125℃
-
Feature:
-
Waterproof
-
Glue:
-
With glue
-
Solder began to melt temperature:
-
125℃
-
Solder completely melt temperature:
-
150℃
Promotion
Technical Data
| Item | Test Method | Typical Data |
| Dielectric voltage withstand | RT-1404 | 2.0kV |
| Voltage rating | RT-1404 | 600V |
| Voltage drop | RT-1404 | Less than 2.0mV |
| Copper corrosion | UL224/ASTM D2671 | Non-corrosive |
Dimensions
| Product Code | Color | Length (mm) | Inner Diameter (mm) |
| DS-R 1 | White | 26 | 1.7 |
| DS-R 2 | Red | 40 | 2.7 |
| DS-R 3 | Blue | 40 | 4.5 |
| DS-R 4 | Yellow | 40 | 6.0 |
*Other size available on request
