Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3200*2140*1850mm
-
Weight (KG):
-
1500
-
Working area:
-
1300*2500*300mm
-
Spindle:
-
9KW HQD Air Cooling Spindle
-
Inverter:
-
11KW Taiwan DELTA Inverter
-
Motor and driver:
-
850W Japan YASKAWA servo motor and 1KW servo driver
-
Table Surface:
-
T-slot & Vacuum Table
-
Lubrication System:
-
Auto Lubrication System
-
Gantry Structure:
-
Gantry Moving
-
Control:
-
Taiwan SYNTEC 6MB Control System
-
Vacuum Pump:
-
optional 5.5kw water circulation vacuum pump
-
Dust collector:
-
optional New type double packet dust collector
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3200*2140*1850mm
-
Weight (KG):
-
1500
-
Working area:
-
1300*2500*300mm
-
Spindle:
-
9KW HQD Air Cooling Spindle
-
Inverter:
-
11KW Taiwan DELTA Inverter
-
Motor and driver:
-
850W Japan YASKAWA servo motor and 1KW servo driver
-
Table Surface:
-
T-slot & Vacuum Table
-
Lubrication System:
-
Auto Lubrication System
-
Gantry Structure:
-
Gantry Moving
-
Control:
-
Taiwan SYNTEC 6MB Control System
-
Vacuum Pump:
-
optional 5.5kw water circulation vacuum pump
-
Dust collector:
-
optional New type double packet dust collector

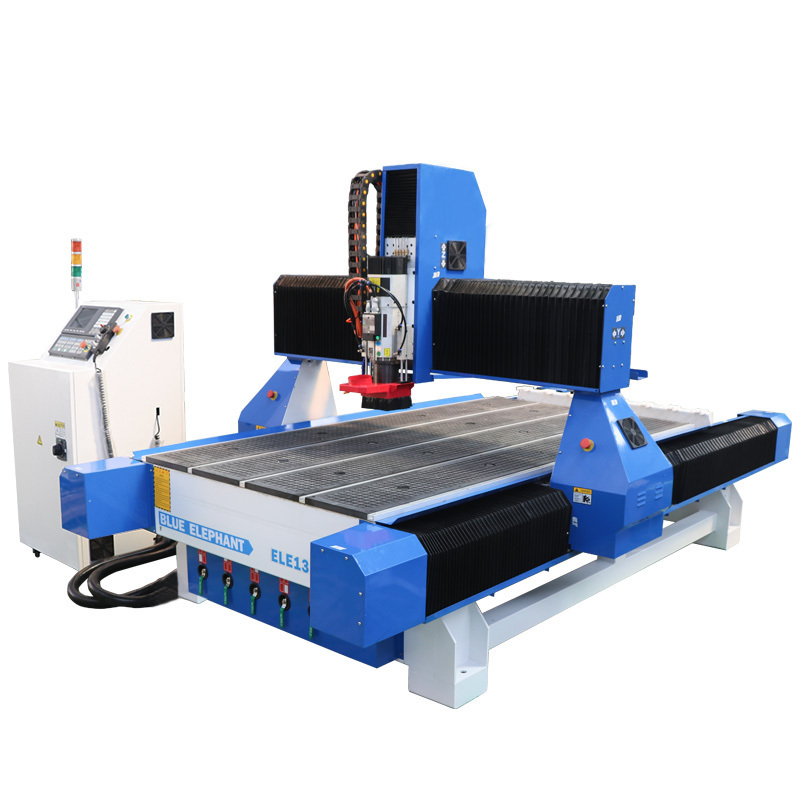

3D Woodworking Cnc Router 4X8 12 Tools Automatic Changer For Aluminum Composite Panel
Features
it is one of hot selling affordable price automatic cnc router 1325 with easier maintenance. the ATC Spindle can automatically change needed tool from the linear type tool changer storage without stopping working of machine. dust proof cover on all axis can effectively avoid dust falling into transmission system to keep stable working and machining precision. many materials such as wood, mdf, aluminum, acrylic etc could be carved by this type. this type is perfect choice of cnc router woodwoking center
Technical parameters
| Model | ELECNC-1325 ATC |
| Working Size | 1300*2500*300mm |
| Working Voltage | 380V, 3Phase, 50Hz ( Option) |
| Control System | Taiwan SYNTEC 6MB Control System |
| Spindle | 9KW HQD Air Cooling Spindle |
| Spindle Speed | 0-24000rpm |
| Inverter | 11KW Taiwan DELTA Inverter |
| Motor & Driver | 850W Japan YASKAWA servo motor and 1KW servo driver |
| Table Surface | T-slot & Vacuum Table |
| Lubrication System | Auto oil Lubrication System |
| Gantry Structure | Gantry Moving |
| Spray/ Flume | Automatic Oil Mist Cooling |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| X,Y,Z Transmission | Helical rack on X,Y axis and Taiwan TBI Ball Screw on Z axis |
| X,Y,Z Rail | Taiwan HIWIN Square Guide,#25 |
| Vacuum Pump | 5.5kw water vacuum pump |
| Dust collector | New type double packet dust collector (380V, 3Phase, 50Hz) |
| Tool Sensor | Auto Tool Sensor Calibration |
PS: Specifications can be customized according to your requests.
Generally, cnc router machine is customized according to customer requirement. Our Design Dep. make drawing, the Production Dep. start to manufacture from machine structure, assemble parts, precision inspection, test working, until customers have no problem with machine. The Sales Dep. confirm with other Dep. for all details of customer order. This is how high-quality machine is produced
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
