Quick Details
-
Dimensions(L*W*H):
-
4.5x2.2x2.4M
-
Weight:
-
2900 KG
-
INK TYPE:
-
solvent ink
-
dry way:
-
electric heating
-
Printing material:
-
plastic, paper
-
Print color:
-
1-4 colors
-
Printing width:
-
960mm
-
Print length:
-
191-914mm
-
Unwind diameter:
-
600mm or special make
-
Printing Speed:
-
10-60m/min
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HWASEN
-
Voltage:
-
220v/380V, 3phase
-
Dimensions(L*W*H):
-
4.5x2.2x2.4M
-
Weight:
-
2900 KG
-
INK TYPE:
-
solvent ink
-
dry way:
-
electric heating
-
Printing material:
-
plastic, paper
-
Print color:
-
1-4 colors
-
Printing width:
-
960mm
-
Print length:
-
191-914mm
-
Unwind diameter:
-
600mm or special make
-
Printing Speed:
-
10-60m/min
Products Description
|
Model
|
YT-4600
|
YT-4800
|
YT-41000
|
|
Printing color
|
1-4 colors
|
1-4 colors
|
1-4 colors
|
|
Max.Print width
|
560mm
|
760mm
|
960mm
|
|
Printing length
|
191 ~914mm
|
191-914mm
|
191~914mm
|
|
Unwind diameter
|
600mm
|
600mm
|
600mm
|
|
Max.Print speed
|
10~60m/min
|
10-60m/min
|
10-60m/min
|
|
Rubber plate thickness
|
2.28mm
|
2.28mm
|
2.28mm
|
|
Total power
|
22kw
|
25kw
|
30kw
|
|
Gross weight
|
2600kg
|
2700kg
|
2900kg
|
|
Install dimension
|
4.5x1.8x2.4m
|
4.5x2x2.4m
|
4.5x2.2x2.4m
|
Feature
(1) Easy operation, flexible starting, accurate color register .
(2) The meter counter can set printing quantity according to the requirements, stop the machine automatically at the quantity or when the material is cut off.
(3) Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
(4) The printing ink is spread by the anilox cylinder with even ink color.
(5) Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine
stops.360continuous and adjustable longitudinal register device.
(6) The frequency control of motor speed adapts to different printing speeds.
(7) Suitable for printing the packing material as PE and PP plastic bags, glass papers rolling papers, etc.
(2) The meter counter can set printing quantity according to the requirements, stop the machine automatically at the quantity or when the material is cut off.
(3) Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
(4) The printing ink is spread by the anilox cylinder with even ink color.
(5) Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine
stops.360continuous and adjustable longitudinal register device.
(6) The frequency control of motor speed adapts to different printing speeds.
(7) Suitable for printing the packing material as PE and PP plastic bags, glass papers rolling papers, etc.
Details Images
unwind
side view
printing unit

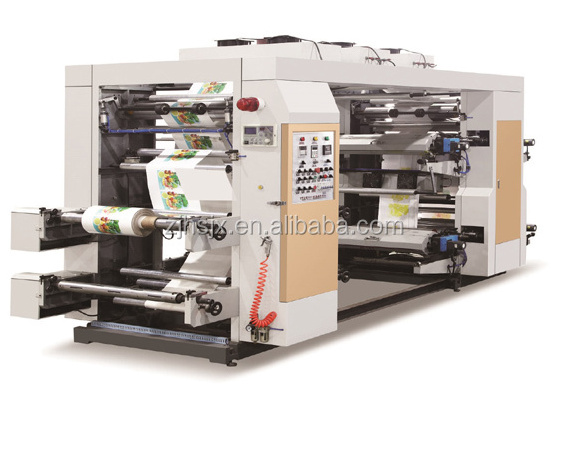

machine whole view
video camera inspection
printing quality show
