ZAY7020G ZAY7032G ZAY7040G ZAY7045G Drilling and Milling Machine

ZAY7020G ZAY7032G ZAY7040G ZAY7045G Drilling and Milling Machine

FOB Reference Price: Get Latest Price

≥3 Sets

US $1000

≥10 Sets

US $950

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Spindle Taper:: MT4 R8

Range of Spindle Speed(r.p.m):: 95 - 1500 r.p.m

Place of Origin:: China

Brand Name:: DS MACHINE TOOL

Model Number:: ZAY7020G, ZAY7032G,ZAY4040G,ZAY7045G

Table Travel (mm):: 175*500mm

Voltage:: Customer Requirement, according Cusomer request

Dimension(L*W*H):: 770*880*1160MM

Weight (KG):: 365

Name:: Drilling and Milling machine

Machine Type:: Small Milling Machine

Function:: Multi Function Machine

Keyword:: Drilling Equipment

Drilling capacity:: 20mm,32mm,40mm,45mm

Spindle speed range:: 80-1250rpm(50hz);95-1500rpm(60hz)

Table size:: 800*240mm

Color:: Cusomer Request

After Warranty Service:: Video technical support

Quick Details

Table Travel (X) (mm):: 500

Table Travel (Y) (mm):: 175

Table Travel (Z) (mm):: None

Spindle Taper:: MT4 R8

Range of Spindle Speed(r.p.m):: 95 - 1500 r.p.m

Place of Origin:: China

Brand Name:: DS MACHINE TOOL

Model Number:: ZAY7020G, ZAY7032G,ZAY4040G,ZAY7045G

Table Travel (mm):: 175*500mm

Voltage:: Customer Requirement, according Cusomer request

Dimension(L*W*H):: 770*880*1160MM

Weight (KG):: 365

Name:: Drilling and Milling machine

Machine Type:: Small Milling Machine

Function:: Multi Function Machine

Keyword:: Drilling Equipment

Drilling capacity:: 20mm,32mm,40mm,45mm

Spindle speed range:: 80-1250rpm(50hz);95-1500rpm(60hz)

Table size:: 800*240mm

Color:: Cusomer Request

After Warranty Service:: Video technical support

Star Product: Drilling and Milling Machine:

ZAY7020G ZAY7032G ZAY7040G ZAY7045G

Features:

1.Gear-driven and round column;

2.Milling,drilling,tapping ,boring and reaming

3.Headstock swivels 360 ° horizontally

4.Micro feed precision

5.Adjustable gibs on table precision.

6.Strong rigidity,powerful cutting and precise positioning

SPECIFICATION
ITEM	ZAY7020G	ZAY7032G	ZAY7040G	ZAY7045G
Drilling capacity	20mm	32mm	40mm	45mm
Face milling capacity	63mm	63mm	80mm	80mm
End milling capacity	20mm	20mm	32mm	32mm
Distance from spindle nose to table	439mm	440mm	440mm	440mm
Min.distance from spindle axis to column	197.5mm	272.5mm	272.5mm	272.5mm
Spindle travel	85mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6	6
Range of spindle speed 50Hz	95-1420 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	115-1700 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Swivel angle of headstock(horizontally/perpendicularly)	360 ° / ± 90 °	360 ° / ± 90 °	360 ° / ± 90 °	360 ° / ± 90 °
Table size	520 × 160mm	800 × 240mm	800 × 240mm	800 × 240mm
Forward and backward travel of table	140mm	175mm	175mm	175mm
Left and right travel of table	290mm	500mm	500mm	500mm
Motor power	0.37KW	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/frequency	As customer's requirement	As customer's requirement	As customer's requirement	As customer's requirement
Net weight/gross weight	130kg/190kg	315kg/365kg	318kg/368kg	320kg/370kg
Packing size	680 × 750 × 1000mm	770 × 880 × 1160mm	770 × 880 × 1160mm	770 × 880 × 1160mm
Loading amount	48pcs/20 ' container	36pcs/20 ' container	36pcs/20 ' container	36pcs/20 ' container

ZAY7020 Picture

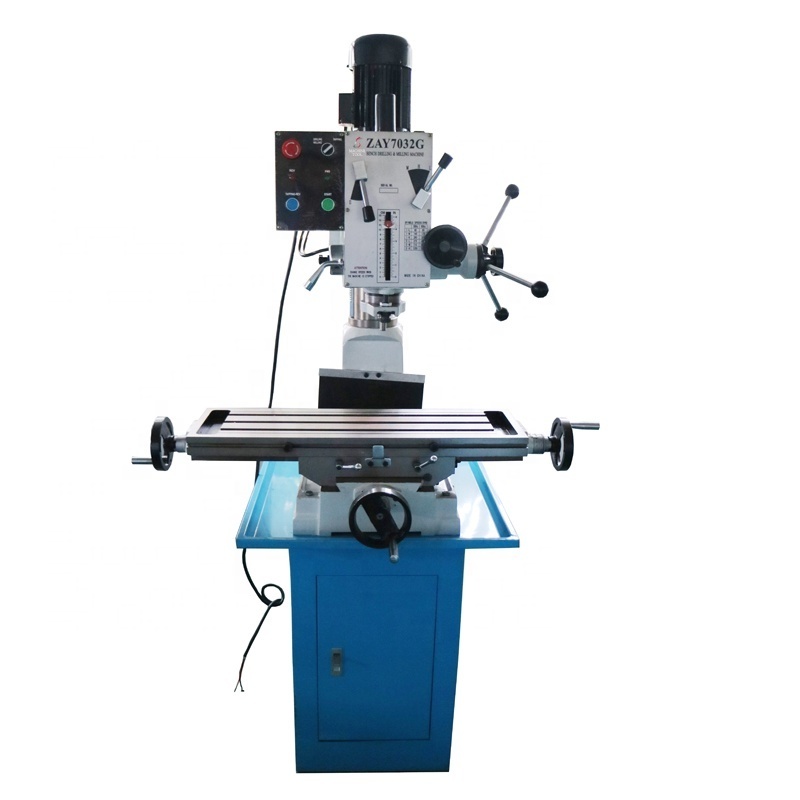

ZAY7032G Pictures

ZAY7045G:

Drilling and Milling Machine:

ZAY7025FG ZAY7032FG ZAY7040FG ZAY7045FG

ZAY7020FG, ZAY7032FG ,ZAY7040FG AND ZAY7045FG :

Features:

1. Gear-driven and square column ;

2.Milling,drilling,tapping ,boring and reaming

3.Headstock swivels ± 90 ° vertically

4.Micro feed precision

5.Adjustable gibs on table precision.

6.Strong rigidity, powerful cutting and precise positioning

ITEM	ZAY7025FG	ZAY7032FG	ZAY7040FG	ZAY7045FG
Max Face mill capacity	25mm	32mm	40mm	45mm
Max End mill capacity	63mm	63mm	80mm	80mm
End milling capacity	20mm	20mm	32mm	32mm
Max.distance from spindle nose to table	445mm	450mm	450mm	450mm
Min.distance from spindle axis to column	203mm	260mm	260mm	260mm
Spindle travel	85mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6	6
Range of spindle speed 50Hz	95-1420 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	115-1700 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Swivel angleof headstock(perpendicularly)	90°	90°	90°	90°
Table size	520×160mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	140mm	175mm	175mm	175mm
Left and right travel of table	290mm	500mm	500mm	500mm
Motor Power	0.37KW	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/frequency	As customer's requirement	As customer's requirement	As customer's requirement	As customer's requirement
Net weight/gross weight	180kg/240kg	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	680×750×1000mm	770×880×1160mm	770×880×1160mm	770×880×1160mm
Loading amount	48pcs/20'container	36pcs/20'container	36pcs/20'container	36pcs/20'container
