Quick Details
-
Brand Name:
-
JINGTU
-
Model Number:
-
Aimag A
-
Product Name:
-
Electromagnetic Flow Meter
-
Accuracy:
-
±0.2%RS; ±0.5%RS
-
Protection Class:
-
IP67/ IP68(optional)
-
Nominal diameter:
-
3~3000mm
-
Ambient Temperature:
-
-45℃~80℃
-
Output signal:
-
4~20mA / RS485/HART
-
Power supply:
-
220VAC/ 24VDC
-
Liner Material:
-
PFA,F46,Neoprene,PTFE, FEP
-
Electrode:
-
316L, HC/HB, Ti, Da, Pt
-
Conductivity:
-
5μS/cm
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Water Flowmeters, sewage Flowmeters, Wastewater Flowmeters
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGTU
-
Model Number:
-
Aimag A
-
Product Name:
-
Electromagnetic Flow Meter
-
Accuracy:
-
±0.2%RS; ±0.5%RS
-
Protection Class:
-
IP67/ IP68(optional)
-
Nominal diameter:
-
3~3000mm
-
Ambient Temperature:
-
-45℃~80℃
-
Output signal:
-
4~20mA / RS485/HART
-
Power supply:
-
220VAC/ 24VDC
-
Liner Material:
-
PFA,F46,Neoprene,PTFE, FEP
-
Electrode:
-
316L, HC/HB, Ti, Da, Pt
-
Conductivity:
-
5μS/cm

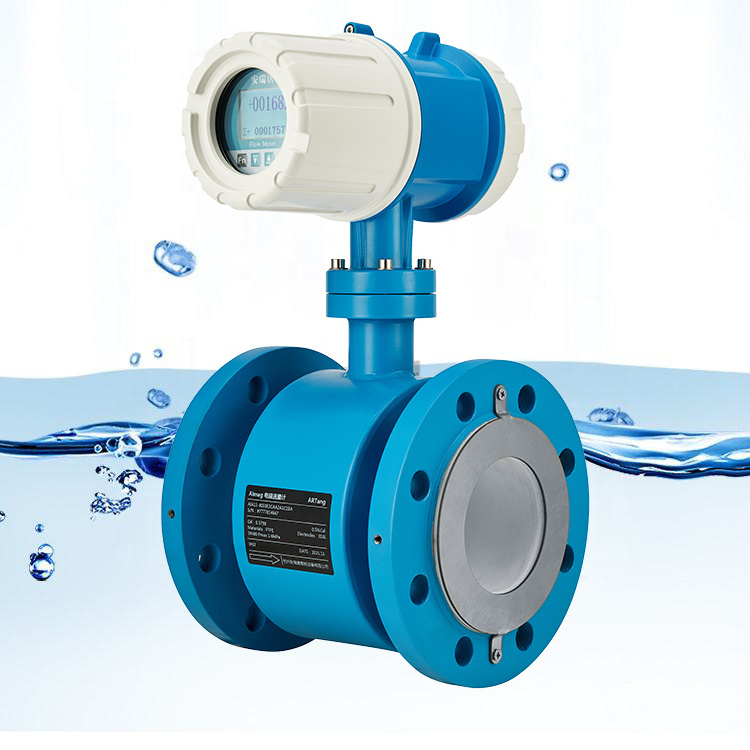

Products Description
![](https://cdn.bestsuppliers.com/seo_products_img/jt-tech/358c03ecd17b3f6d88f66ec1caa152a5.jpg!/rotate/180)
Name
|
Intelligent electromagnetic flowmeter
|
Accuracy
|
±0.2%RS; ±0.5%RS
|
Nominal diameter
|
3-3000mm
|
Medium conductivity
|
≥5µS/cm
|
Nominal Diameter
|
DN3~DN3000
|
Highest medium
temperature |
-20℃~80℃, Neoprene lining
|
|
-20℃~65℃, Polyurethane rubber lining
|
|
-40℃~120℃, PTFE lining (integrated)
|
|
-40℃~180℃, PTFE lining (separate type)
|
Electrode Material
|
316L, Hastelloy C, Hastelloy B, Ti, Ta, Pt
|
Explode-proof Class
|
NEPSI, CNEX Exdb eb ia IIC T3…T6 Gb
|
Protection Class
|
Incorporate type-----IP67
|
|
Separate body-type----IP67/IP68
|
Supply Power
|
85~265VAC,45~63Hz;18~28VDC
|
Number of electrodes
|
Standard configuration 4 electrodes(two measuring electrodes plus two grounding electrode)
|
Details Images
![](https://cdn.bestsuppliers.com/seo_products_img/jt-tech/12587290ffc831169212fdf14d1ad3fb.jpg!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/jt-tech/9f0551ce34a73146abdf05ee89bafc66.jpg!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/jt-tech/2d2d388095993aaeb107ff9566bab6a0.jpg!/rotate/180)
