Heated servo small hydraulic press
Heated servo small hydraulic press
Heated servo small hydraulic press
Heated servo small hydraulic press
Heated servo small hydraulic press
Heated servo small hydraulic press
Heated servo small hydraulic press
Heated servo small hydraulic press

Heated servo small hydraulic press

FOB Reference Price: Get Latest Price
≥1 Sets
US $6000
≥2 Sets
US $5800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Return Force (kN):
200 kN
Place of Origin:
Henan, China
Brand Name:
Kaichuang
Year:
2023
Voltage:
220V/380V/440V
Dimension(L*W*H):
3100x1800x3500mm
Weight (T):
15 T
Motor Power (kw):
18.5 kw
Marketing Type:
Hot Product 2023
After-sales Service Provided:
1 Year
Function:
Pressing
Application:
Hydraulic Press Bending Machine
Advantage:
High Efficiceny
Certification:
CE ISO
Feature:
High Sensitive
Automation:
Configurable Automated Production Line
Brand:
Kaichuang
Service life:
Ordinary Models
Package:
Wooden Case

Quick Details

Machine Type:
Four-column Three-beam Hydraulic Press
Slide Stroke (mm):
600, 800
Ejector Force (kN):
250-1000
Return Force (kN):
200 kN
Place of Origin:
Henan, China
Brand Name:
Kaichuang
Year:
2023
Voltage:
220V/380V/440V
Dimension(L*W*H):
3100x1800x3500mm
Weight (T):
15 T
Motor Power (kw):
18.5 kw
Marketing Type:
Hot Product 2023
After-sales Service Provided:
1 Year
Function:
Pressing
Application:
Hydraulic Press Bending Machine
Advantage:
High Efficiceny
Certification:
CE ISO
Feature:
High Sensitive
Automation:
Configurable Automated Production Line
Brand:
Kaichuang
Service life:
Ordinary Models
Package:
Wooden Case
Heated servo small hydraulic press
Product Description

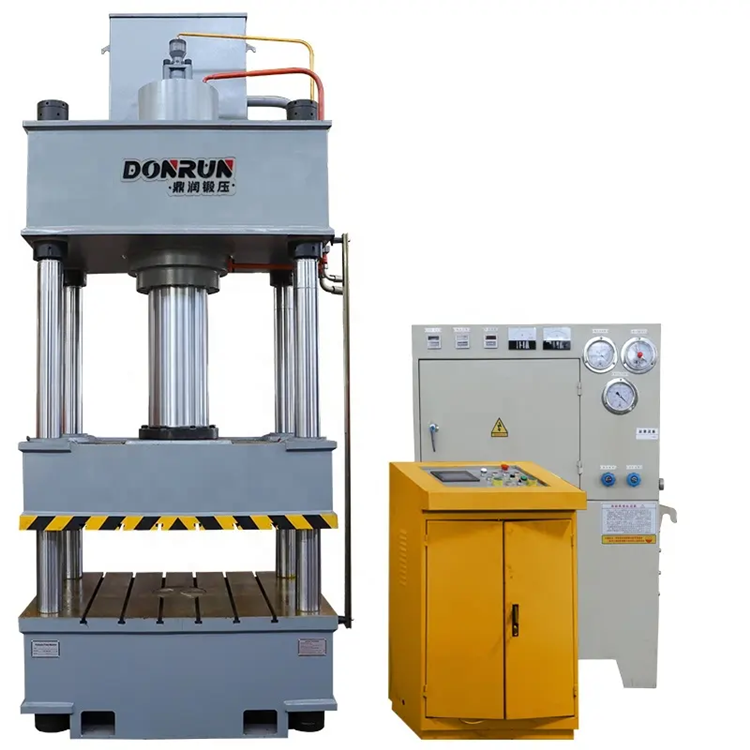

Our hydraulic press is designed for high-precision and extremely high-quality work. The 4 pillar hydraulic press machine is specifically recommended to carry out tasks that involve deep-drawing, die-cutting, metal forming, stamping and pressing with a high accuracy.
Specification
Advantage
1. Different ton hydraulic press machine is available.
2. Hydraulic press applies to plasticity material suppress technology, for instance: punching, bend, flange thin stretch etc. It can also be engaged in rectification, press fitting, the suppress and shaping of plastic products and power production.
3. Our hydraulic press is economical and practical, and hydraulic control adopts to insert set valve integrated system. It decreases let out point, durable and long life span. And the machine is constant pressure to realize with calm in the first place and calm procedure two develop technology, it have to insure press the function of delay time.
4. High efficient, convenient and safe operation 5. High quality steel plate welded with accuracy and stability 6. Multi-rod design ensures the depth and shape of the pressed product
Model
100t-A
100t-B
200t-A
200t-B
315t-A
315t-B
315t-C
Nominal Force
(KN)
1000
1000
2000
2000
3150
3150
3150
Ejector Force
(KN)
250
250
350
350
630
630
630
Slide Stroke
(mm)
600
600
600
600
600
600
800
Ejection Stroke
(mm)
200
200
260
260
260
260
260
Maximum Working Force of Liquid
(Mpa)
25
25
25
25
25
25
25
Maximum Opening Height
(mm)
1000
1000
1000
1000
1000
1000
1250
Effective Area of Table(mm)
700
(L-R)
560
(L-R)
800
(L-R)
1000
(L-R)
800
(L-R)
1000
(L-R)
1260
(L-R)
620
(Front and Rear Edges)
560
(Front and Rear Edges)
800
(Front and Rear Edges)
1000
(Front and Rear Edges)
800
(Front and Rear Edges)
1000
(Front and Rear Edges)
1200
(Front and Rear Edges)
Speed
(mm/s)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
30
(Slow Descent)
30
(Slow Descent)
25
(Slow Descent)
25
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
100
(Return)
100
(Return)
90
(Return)
90
(Return)
100
(Return)
100
(Return)
100
(Return)
Motor Power
(kw)
5.5
5.5
7.5
7.5
15
15
15
Model
400t-A
500t-A
500t-B
630t
Nominal Force
(KN)
4000
5000
5000
6300
Ejector Force
(KN)
800
1000
1000
1000
Slide Stroke
(mm)
600
800
800
800
Ejection Stroke
(mm)
260
300
300
300
Maximum Working Force of Liquid
(Mpa)
25
25
25
25
Maximum Opening Height
(mm)
1200
1200
1200
1200
Effective Area of Table(mm)
1200
(L-R)
1200
(L-R)
1400
(L-R)
1600
(L-R)
1200
(Front and Rear Edges)
1200
(Front and Rear Edges)
1400
(Front and Rear Edges)
1600
(Front and Rear Edges)
Speed
(mm/s)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
35
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
100
(Return)
100
(Return)
100
(Return)
100
(Return)
Motor Power
(kw)
16
19
22
27
Application
This series of hydraulic presses is a general purpose hydraulic pressure, it is suitable for stretching, bending, flanging, cold extrusion, punching, and other processes of metal materials. It is also suitable for calibration, press fitting, molding and pressing of powder products, abrasive products, plastic products, and SMC materials.

Finished products:
Packing & Delivery
Packing: The normal package is wooden box. We will use pe film for packing or pack it according to customers special request.
Delivery: Delivery within 15 days after receipt of deposit.
Our Service
1. We have 24 hours team to solve the after sales problem.
2. We have free spare parts with the machine.
3. We supply long term spare parts for every customer.
4. We always up date the new technology to every customer.
Note: The machine can be customized according to your needs, and good products will satisfy customers. Please feel free to contact us for detailed information or special request.
