Quick Details
-
Horsepower:
-
98hp
-
Cargo Tank Type:
-
Chassis
-
Gross Vehicle Weight:
-
7300
-
Drive Wheel:
-
4x2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
Qingling
-
Place of Origin:
-
Chongqing, China
-
Size:
-
5950*1880*2310mm
-
Cargo Tank Dimension:
-
-
-
Product name:
-
truck chassis
-
Wheelbase:
-
3360mm
-
Drive type:
-
4x2
-
Engine Model:
-
4JB1-CN
-
Engine Power:
-
72Kw
-
Displacement:
-
2999ml
-
Transmission:
-
Manual MSB-5MT
-
GVW:
-
7300Kg
-
Capacity (Load):
-
7300Kg
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 4
-
Market Segement:
-
Logistics transportation
-
Horsepower:
-
98hp
-
Cargo Tank Type:
-
Chassis
-
Gross Vehicle Weight:
-
7300
-
Drive Wheel:
-
4x2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
Qingling
-
Place of Origin:
-
Chongqing, China
-
Size:
-
5950*1880*2310mm
-
Cargo Tank Dimension:
-
-
-
Product name:
-
truck chassis
-
Wheelbase:
-
3360mm
-
Drive type:
-
4x2
-
Engine Model:
-
4JB1-CN
-
Engine Power:
-
72Kw
-
Displacement:
-
2999ml
-
Transmission:
-
Manual MSB-5MT
-
GVW:
-
7300Kg
-
Capacity (Load):
-
7300Kg

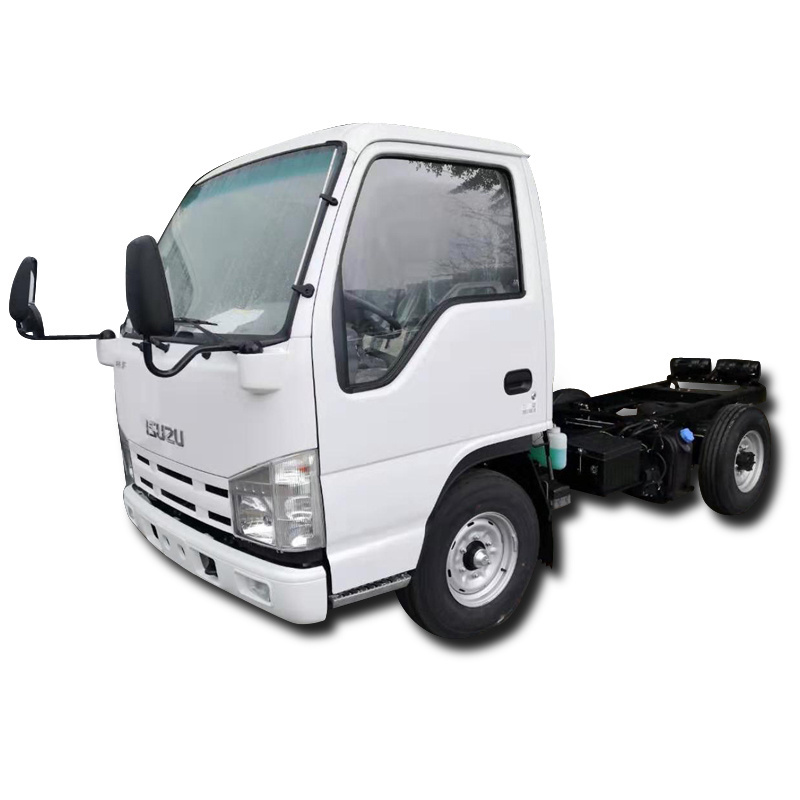

ISUZU CHINA 100P 4x2 Single Cab Truck C hassis Specs(Euro I V )
|
Chassis Parameters |
Chassis Model: |
QL10503HARY |
|
Overall Dimension(L x W x H) |
5900 x 1 86 0 x 2 18 0 mm |
|
|
Curb Weight: |
1850kg |
|
|
GVW: |
7300kg |
|
|
Wheelbase: |
3360 mm |
|
|
Drive Type: |
4x 2 |
|
|
Engine |
Engine Model: |
4JB1 - CN |
|
Engine Power: |
72kw |
|
|
Delivery Capacity: |
2 771 ml |
|
|
Horsepower: |
98Ps |
|
|
Transmission |
Transmission: |
Manual MSB-5MT |
|
Forw a rd Gear: |
5 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Seats |
Front Seat: |
2 |
|
Chassis |
Front/ Rear Wheel Distance: |
1 385 / 1425 mm |
|
F ront /Rear suspension |
1015/1525 mm |
|
|
Axle Loads: |
1920/3380 kg |
|
|
Rear Axle Ratio: |
5.375 |
|
|
Tires: |
7 (Including Spare Tire) |
|
|
Tire Model: |
7.00R16 14PR |
|
|
Configuration: |
1 |
Power Steering |
|
2 |
AC |
|
|
3 |
Retro-reflective Marking |
|
|
4 |
R adial tire |
|
|
5 |
ABS |
|
|
6 |
Free Maintenance Battery |
