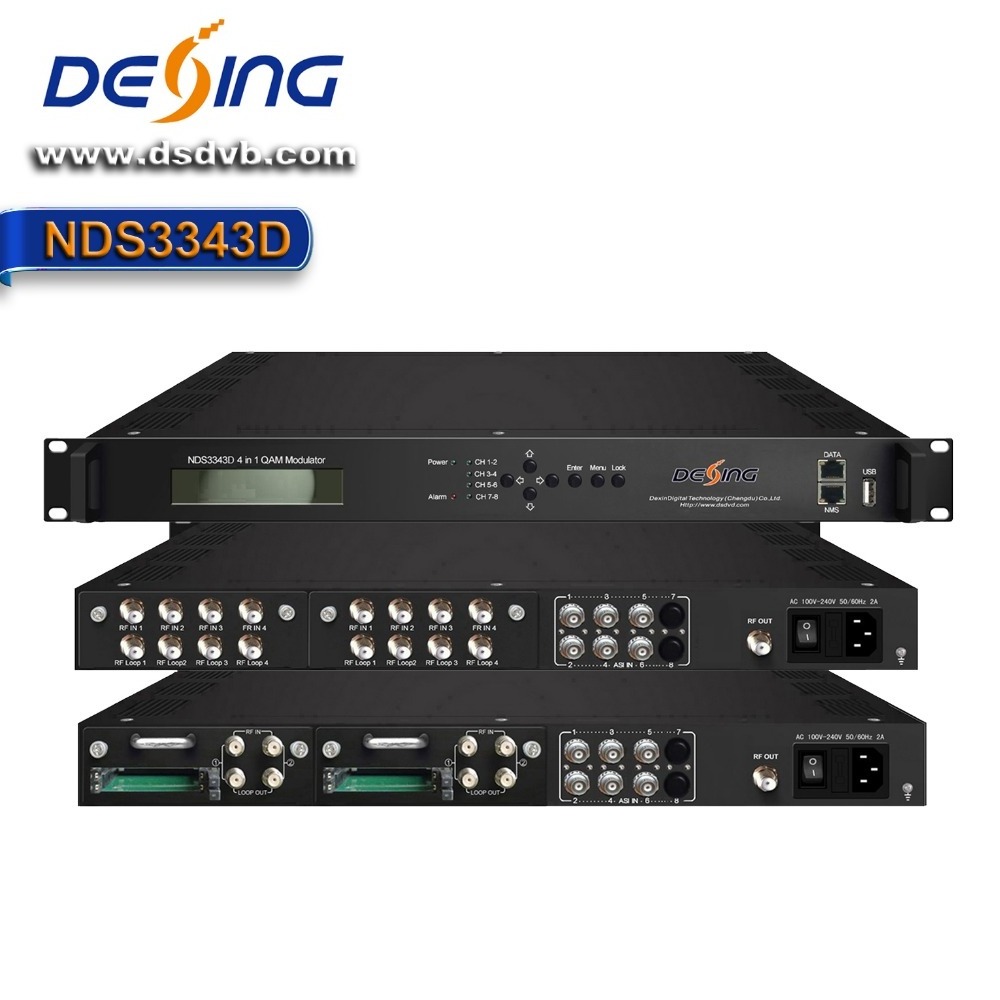

Dexin NDS3343D digital satellite receiver with mux-scr and qam modulator
* 8 DVB-C/T/(T)/ISDBT/S/S2/S2X/ATSC FTA Tuner + 6 ASI input ports+256 IP input (Version 1)
*4 DVB-C/S/S2/ATSC Tuner with CAM+6 ASI input ports (Version 2)
Outline
The four CAMs/CIs (Optional) accompanied and BISS modules can descramble the programs input from 4 Tuner inputs. Its pluggable structure design greatly facilitates the change of modules (demodulator) as needed. NDS3343D is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.
Key Features
l Multiple Input ports optional:
8 DVB-C/T/(T)/ISDBT/S/S2/S2X/ATSC FTA Tuner + 6 ASI input ports+256 IP input (Version 1)
4 DVB-C/S/S2/ATSC Tuner with CAM+6 ASI input ports (Version 2)
l Support 4 channels multiplexing+4 channels scrambling+4 channels QAM modulating
l Fully support DVB-C (EN300 429) and ITU-T J.83A/B/C
l Fully support DVB general scrambling system description ETR289, simulcrypt standard ETSI 101 197 and ETSI 103 197
l Support accurate PCR adjusting
l Support PSI/SI editing and inserting
l Excellent RF output performance index, MER≥40db
l Support 4*MPTS output over UDP
l 4 CAM decrypt multiple programs from 4 Tuner input (Optional)
l Support BISS descrambling(only for Version 2)
l Support LCD display and keyboard
l Support Web management, Updates via web and USB
Specifications
|
Input |
8 DVB-C/T/(T)/ISDBT/S/S2/S2X/ATSC FTA Tuner + 6 ASI input+256 IP input ------Version 1 |
||||||
|
4 DVB-C/S/S2/ATSC Tuner with CAM + 6 ASI -------Version 2 |
|||||||
|
Tuner Section |
For Version 1 : Multi-mode tuners switchable (New Type) |
DVB-C |
Input Frequency |
60 ~890 MHz |
|||
|
Standard |
J.83A, J.83C |
J.83B |
|||||
|
Constellation |
16/32/64/128/256 QAM |
64/256 QAM |
|||||
|
DVB-T/(T) |
Input Frequency |
60 ~890 MHz |
|||||
|
Bandwidth |
5/6/7/8 M |
||||||
|
ISDB-T |
Input Frequency |
60 ~890 MHz |
|||||
|
For Version 1 (New Type) |
DVB-S |
Input Frequency |
950 ~ 2150MHz |
||||
|
Symbol rate |
0.5 ~ 45Msps |
||||||
|
Signal Strength |
- 65- -25dBm |
||||||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
||||||
|
Constellation |
QPSK |
||||||
|
Max input bitrate |
≤ 120 Mbps |
||||||
|
DVB-S2X |
Input Frequency |
950~2150MHz |
|||||
|
Symbol rate |
QPSK/8PSK /16APSK :0.5~45 Msps 32APSK: 0.5~40Msps; |
||||||
|
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
||||||
|
Constellation |
QPSK, 8PSK, 16APSK, 32APSK |
||||||
|
Max input bitrate |
≤ 120 Mbps |
||||||
|
DVB-S2X |
Input Frequency |
950~2150MHz |
|||||
|
Symbol rate |
QPSK/8PSK /16APSK :0.5~45 Msps 8APSK: 0.5~40Msps 32APSK: 0.5~40Msps |
||||||
|
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 |
||||||
|
Constellation |
QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
||||||
|
Max input bitrate |
≤ 120 Mbps |
||||||
|
For Version 2 |
DVB-C |
Standard |
J.83A(DVB-C), J.83B, J.83C |
||||
|
Input Frequency |
30 ~ 1000Mhz |
||||||
|
Constellation |
16/32/64/128/256 QAM |
||||||
|
DVB-S |
Input Frequency |
950 ~ 2150MHz |
|||||
|
Symbol rate |
2-45Msps |
||||||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
||||||
|
Signal Strength |
-65~-25dBm |
||||||
|
Constellation |
QPSK |
||||||
|
DVB-S2 |
Input Frequency |
950 ~ 2150MHz |
|||||
|
Symbol rate |
QPSK/8PSK 1~45 Msps |
||||||
|
FEC |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
||||||
|
Constellation |
QPSK, 8PSK |
||||||
|
|
ATSC |
Input Frequency |
54~858MHz |
||||
|
Bandwidth |
6M |
||||||
|
Constellation |
8VSB |
||||||
|
Multiplexing |
Maximum PID Remapping |
128per input channel |
|||||
|
Function |
PID remapping (automatically or manually) |
||||||
|
Accurate PCR adjusting |
|||||||
|
Generate PSI/SI table automatically |
|||||||
|
Scrambling |
Maximum simulcrypt CA |
4 |
|||||
|
Standard |
ETSI 101 197, ETSI 103 197 |
||||||
|
Connection |
Local/remote connection |
||||||
|
Modulation |
QAM Channel |
4 |
|||||
|
Standard |
EN300 429/ITU-T J.83A/B/C |
||||||
|
MER |
≥40db |
||||||
|
RF frequency |
30~999MHz, 1KHz step |
||||||
|
RF output level |
-10~0dbm ,0.1db step ------Version 1 -20~0dbm,0.1db step ------Version 2 |
||||||
|
Symbol Rate |
5.0Msps~9.0Msps , 1ksps stepping |
||||||
|
|
J.83A |
J.83B |
J.83C |
||||
|
Constellation |
16/32/64/128/256QAM |
64/256 QAM |
64/256 QAM |
||||
|
Bandwidth |
8M |
6M |
6M |
||||
|
System |
Local interface |
LCD + control buttons |
|||||
|
Remote management |
Web NMS |
||||||
|
Stream Out |
4*MPTS over UDP out (RJ45, 1000M, Unicast/Multicast) |
||||||
|
Language |
English and Chinese |
||||||
|
Software Upgrading |
Web and USB |
||||||
|
General |
Dimension (W*D*H) |
482mm×300mm×44.5mm |
|||||
|
Temperature |
0~45 ℃ (Operation) ; -20~80 ℃ (Storage) |
||||||
|
Power |
AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ |
||||||
