Quick Details
-
Product name:
-

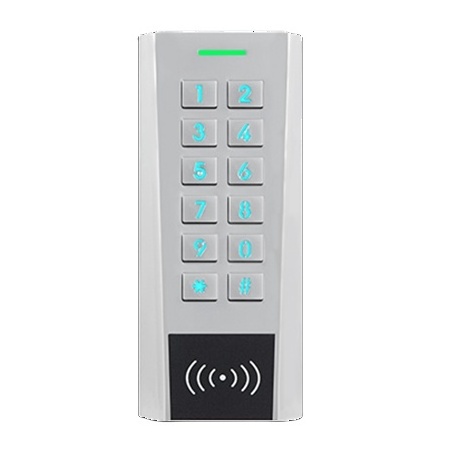

Outdoor Dual-relay Digital Keypad with card reader
-
User Capacity:
-
999
-
PIN Length:
-
1-8 digits
-
Relay:
-
Two(NO, NC, Common)
-
Read Range:
-
2-6 cm
-
Material:
-
Zinc Alloy
-
Waterproof:
-
IP66
-
Dimensions:
-
L134 x W55.5 x D21mm
-
Operating Temperature:
-
-40℃ ~ 60℃ (-40℉~ 140℉)
-
Color:
-
Silver
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Secukey
-
Model Number:
-
XK4-D EM
-
Product name:
-
Outdoor Dual-relay Digital Keypad with card reader
-
User Capacity:
-
999
-
PIN Length:
-
1-8 digits
-
Relay:
-
Two(NO, NC, Common)
-
Read Range:
-
2-6 cm
-
Material:
-
Zinc Alloy
-
Waterproof:
-
IP66
-
Dimensions:
-
L134 x W55.5 x D21mm
-
Operating Temperature:
-
-40℃ ~ 60℃ (-40℉~ 140℉)
-
Color:
-
Silver
A Company You Can Trust
Secukey Technology Co., Ltd is a professional manufacturer of access control products, dedicated in design, development, production and sales of access control products for more than 5 years.
XK4-D Two Door RFID Card Reader Support NFC Metal Keypad Standalone Wiegand EM or MF Reader With LED Backlit Key
> Waterproof, conforms to IP66
> Metal case, anti-vandal
> Metal case, anti-vandal > Fashion design, all-metal key button
> Two relays, 999 users > PIN length: 1~8 digits
> Card type: 125KHz EM card / tag > Multi-color LED status display
> Pulse mode, Toggle mode > Low temperature resistance(-40℃)
> Integrated alarm & buzzer output, can set the volume sound from level 0~5
> Built in light dependent resistor (LDR) for anti tamper
> Backlit keypad, can set always ON, always OFF, or turn off automatically after 60 seconds
> Relay 2 supports external door bell
> Voltage: 12~28V AC/DC
| User Capacity | 9 99 |
|
Operating Voltage
Idle Current |
12~
28
V
AC/
D
C
<50mA |
|
Proximity Card Reader
Radio Technology Read Range |
EM
125KHz 2~6 cm |
| PIN Length | 1~8 digits |
| Wiring Connections | Relay Output, Exit Button , Alarm, Door Contac t, Door b ell |
|
Relay
Adjustable Relay Output Time Lock Output Load |
T
wo
(NO, NC, Common)
0~300 Seconds (5 seconds default) 2 Amp Maximum |
|
Environment
Operating Temperature Operating Humidity |
Meets IP
66
-40℃ ~ 60℃ (-40℉~ 140℉) 0%RH~98%RH |
|
Physical
Color Dimensions Unit Weight Shipping Weight |
Zinc-Alloy
Silver L134 x W55.5 x D21mm 340g 420g |
