Quick Details
-
Brand Name:
-
HXTECH
-
Model Number:
-
DB4.1 DB2.5
-
Product name:
-

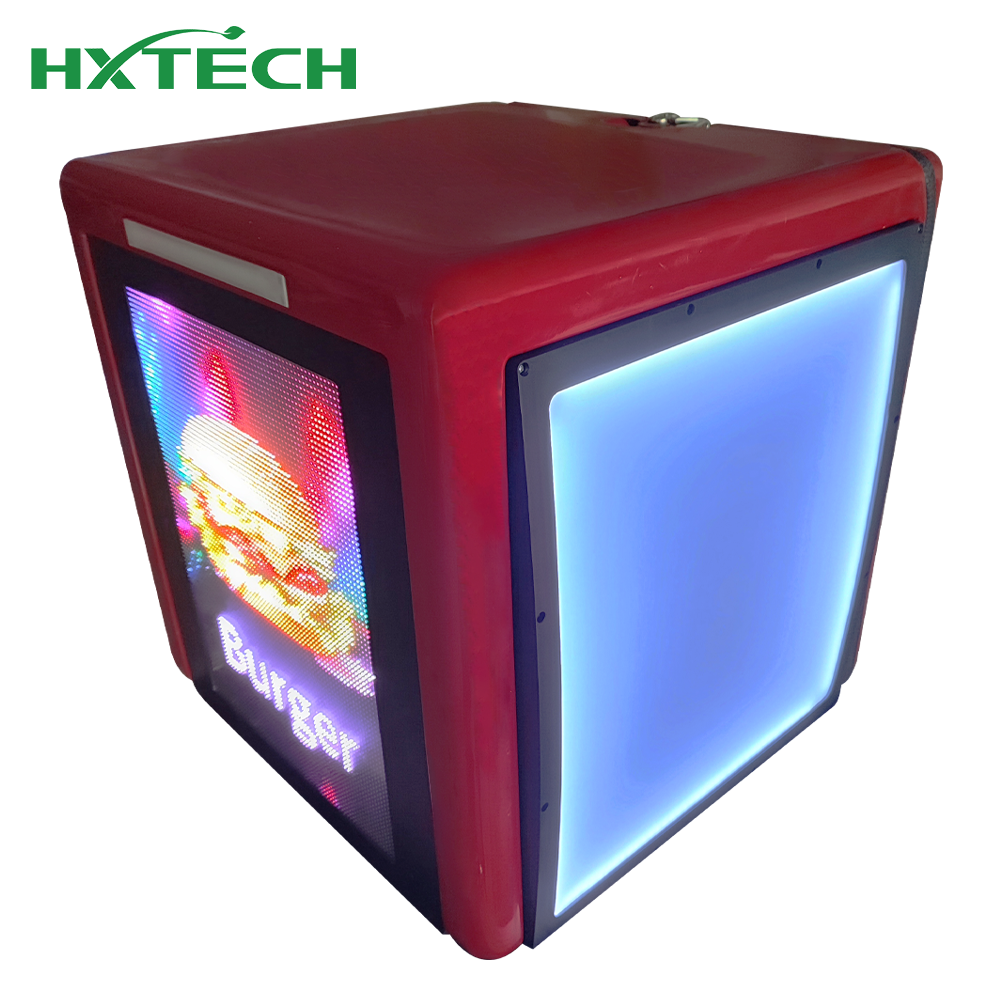

delivery box LED display
-
Contrast ratio:
-
5000:1
-
Refresh rate:
-
3840 Hz
-
Life span:
-
100000hours
-
Brightness:
-
4500
Quick Details
-
Material:
-
FRP
-
Warranty:
-
3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HXTECH
-
Model Number:
-
DB4.1 DB2.5
-
Product name:
-
delivery box LED display
-
Contrast ratio:
-
5000:1
-
Refresh rate:
-
3840 Hz
-
Life span:
-
100000hours
-
Brightness:
-
4500
Specifications
Product Paramenters
|
|
DB4.1
|
DB2.5
|
|
LED type
|
3 in 1 SMD
|
3 in 1 SMD
|
|
Pixel configuration
|
RGB
|
RGB
|
|
Pixel pitch
|
4.17mm
|
2.5mm
|
|
Physical density (dot/m2)
|
57600
|
160000
|
|
LED driving method
|
1/9
|
1/16
|
|
Active display size (HxV)
|
400X300mm
|
320X320mm
|
|
Resolution (PXxPX)
|
96X72 pixel
|
128X128pixel
|
|
Display area(m2)
|
0.1271
|
0.1079
|
|
Outline Dimension with edge
|
410X310mm
|
328.5X328.5mm
|
|
Weight (KG)
|
Estimated 0.5KG
|
Estimated 0.5KG
|
|
IP rating(front/rear)
|
NA, IP65 if with waterproof frame
|
NA,IP65 if with waterproof frame
|
|
White balance brightness (nits)
|
≥4500 nits
|
≥4500 nits
|
|
Color temperature（K）
|
3200—12000 adjustable
|
3200—12000 adjustable
|
|
Hor. viewing angle(min 50% brightness)
|
≥140°
|
≥140°
|
|
Vert. viewing angle(min 50% brightness)
|
≥120°
|
≥120°
|
|
Contrast ratio
|
≥5000：1
|
≥5000：1
|
|
Max. power Consumption（W）
|
Max 40 W @ 4500 nits, Max 30W @3000 nits
|
Max 40 W @ 4500 nits, Max 30W @3000 nits
|
|
Operation power voltage
|
DC5V
|
DC5V
|
|
Colors
|
281 trillion
|
281 trillion
|
|
Refresh rate(HZ)
|
≥3840
|
≥3840
|
|
Processing
|
16bit/color
|
16bit/color
|
|
Operating temperature range
|
-20°C to +65°C
|
-20°C to +65°C
|
|
Storage temperature range
|
-40°C to +60°C
|
-40°C to +60°C
|
|
Operating humidity
|
10%~90%
|
10%~90%
|
|
Storage humidity
|
10%~90%
|
10%~90%
|
|
Life time(50% brightness)
|
100,000 hours
|
100,000 hours
|
|
Network
|
WIFI, USB,4G,LAN, Bluetooth
|
WIFI, USB,4G,LAN, Bluetooth
|
|
GPS function
|
Available
|
Available
|
|
Cloud management
|
Available
|
Available
|
|
Installation method
|
Screw fixing
|
Screw fixing
|
