Quick Details
-
Rolling thinckness:
-
0.8-3mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VODLEY
-
Voltage:
-
380V/415/220V/ 110V
-
Dimension(L*W*H):
-
11000*1500*1500
-
Weight:
-
11000 kg
-
Marketing Type:
-
New Product
-
Product name:
-

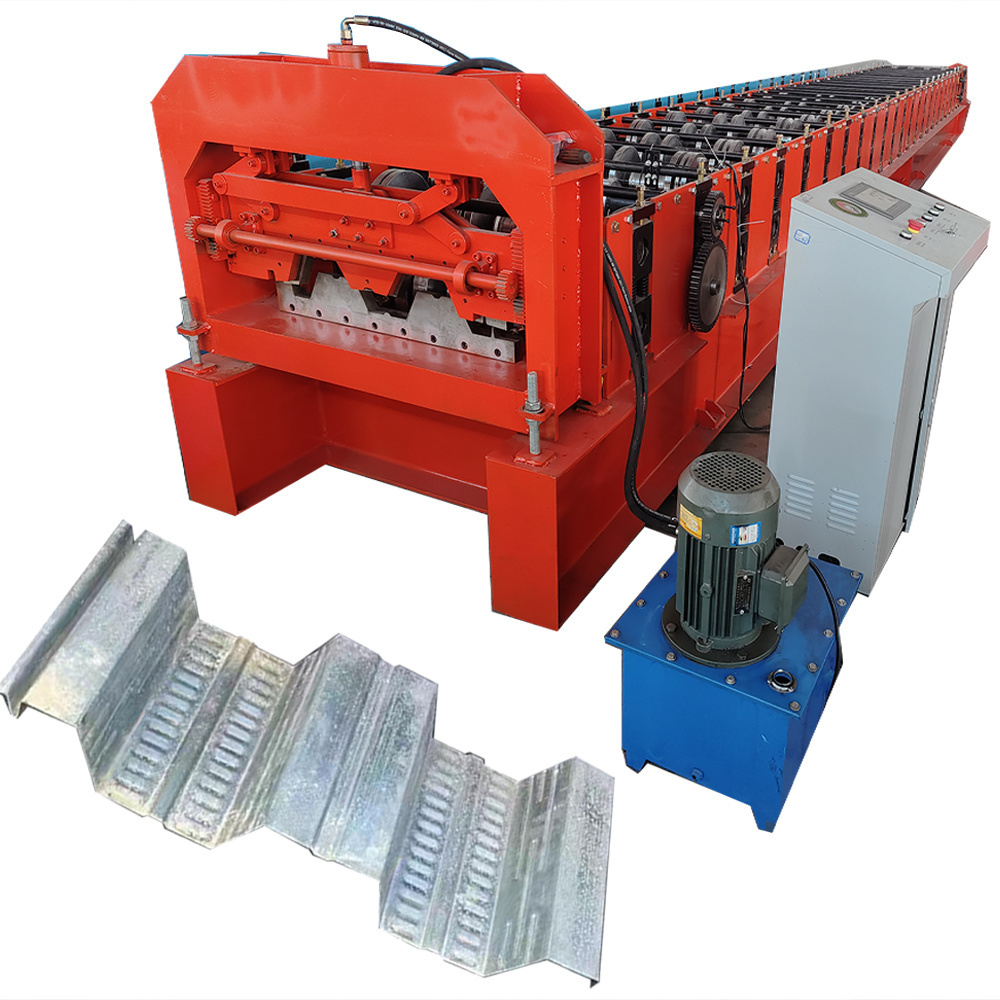

Floor Deck Forming Making Machinery
-
Forming thickness:
-
0.8-3mm
-
Roller shaft diameter:
-
90mm
-
Roll material:
-
COLOR Steel
-
Main frame:
-
400H Steel
-
Control system:
-
PLC(imported Brand)
-
Usage:
-
Roof Tile Panel
-
Color:
-
Client's Request
Quick Details
-
Type:
-
roll forming machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15M/MIN, 15m/min
-
Rolling thinckness:
-
0.8-3mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VODLEY
-
Voltage:
-
380V/415/220V/ 110V
-
Dimension(L*W*H):
-
11000*1500*1500
-
Weight:
-
11000 kg
-
Marketing Type:
-
New Product
-
Product name:
-
Floor Deck Forming Making Machinery
-
Forming thickness:
-
0.8-3mm
-
Roller shaft diameter:
-
90mm
-
Roll material:
-
COLOR Steel
-
Main frame:
-
400H Steel
-
Control system:
-
PLC(imported Brand)
-
Usage:
-
Roof Tile Panel
-
Color:
-
Client's Request
Production Description
Manufacture zinc floor deck panel roof sheet tile roll former forming making machine
Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short period of time, and can use multiple floors to lay profiled steel plates and layered pouring of concrete slabs for flow construction.
Product Specification
|
No
|
Item
|
Data
|
|
1
|
Raw material width
|
1000-1200 mm
|
|
2
|
Sheet effective width
|
750-1000 mm
|
|
3
|
Raw material
|
Color steel sheet or galvanized steel sheet
|
|
4
|
Material thickness
|
0.3-0.8 mm or customized
|
|
5
|
Forming roller material
|
45# steel plated with chrome
|
|
6
|
Shaft diameter
|
70 mm
|
|
7
|
Forming roll station
|
8-16 steps
|
|
8
|
Main motor power
|
3 KW 4 KW 5.5 KW(according to type)
|
|
9
|
Hydraulic power
|
4 KW (according to type)
|
|
10
|
Control system
|
PLC control
|
Material supporting frame→Molding core→Hydraulic system→Automatic control system→Automatic shearing mechanism→Roll forming→receiving tables
Packing List of
steel floor decking sheet roll forming machine full automatic galvanized metal floor decking sheet panel
(1) Main Machine
(2) Hydraulic System
(3) Forming Cutter
(4) PLC Computer Controlling System
(5) Run Out Table
(6)Manual in English
(2) Hydraulic System
(3) Forming Cutter
(4) PLC Computer Controlling System
(5) Run Out Table
(6)Manual in English
Details Images
Blade of floor deck roll forming machine
The purpose of the shear is to cut the fixed length, head, tail, edge, sample and local defects of the rolled piece
Cutting Way:Hydraulic shear
Material of blade:Cr12
Cutting Way:Hydraulic shear
Material of blade:Cr12
Counter of floor deck roll forming machine
Mainly to counting piece of tiles. If customer want produce 1 shape tile 5 pieces, counter will have memory to give signal to PLC, after 5 pieces reached, stop automatically, very automated.
Forming roller of floor deck roll forming machine
The 90mm Cr12 forming wheel, combined with multiple rows of rollers, is sturdy and durable, and can perfectly press the desired finished product.
Control cabinet of floor deck roll forming machine
Independent electric control cabinet, which can be moved and placed according to needs; High definition screen, mechanical button control.
main features :
1: Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short period of time, and can use multiple floors to lay profiled steel plates and layered pouring of concrete slabs for flow construction.
2: During the use stage, the floor support plate serves as the tensile steel bar for the concrete floor slab, which also improves the stiffness of the floor slab and saves the amount of steel and concrete used.
3: The surface embossing of the profiled plate creates the maximum bonding force between the floor bearing plate and the concrete, forming a whole between the two. With the addition of stiffeners, the floor bearing plate system has a high-strength bearing capacity.
4: Under cantilever conditions, the floor support plate is only used as a permanent template. The length of the cantilever can be determined based on the cross-sectional characteristics of the floor support plate. In order to prevent the cracking of the cantilever plate, negative reinforcement shall be provided at the support according to the design of the structural engineer.
Other design of tile making roll forming machine, we also could customized to you, just share us your details about:
1)Your details design of tile making roll forming machine.
2)Raw materials of tile making roll forming machine
3)Thickness of tile making roll forming machine
1)Your details design of tile making roll forming machine.
2)Raw materials of tile making roll forming machine
3)Thickness of tile making roll forming machine
