Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hi-teachfan
-
Model Number:
-
7530
-
Product name:
-
Air mold blower
-
Size:
-
75x75x30mm
-
Material:
-
Plastic Frame
-
Color:
-
Black
-
Noise Level:
-
24~50dBA
-
Function:
-
Reduce Temperature
-
Speed:
-
2000~5000RPM
Quick Details
-
Application:
-
Air Blower
-
Pressure:
-
Medium Pressure
-
Rated Voltage:
-
12V, 24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hi-teachfan
-
Model Number:
-
7530
-
Product name:
-
Air mold blower
-
Size:
-
75x75x30mm
-
Material:
-
Plastic Frame
-
Color:
-
Black
-
Noise Level:
-
24~50dBA
-
Function:
-
Reduce Temperature
-
Speed:
-
2000~5000RPM

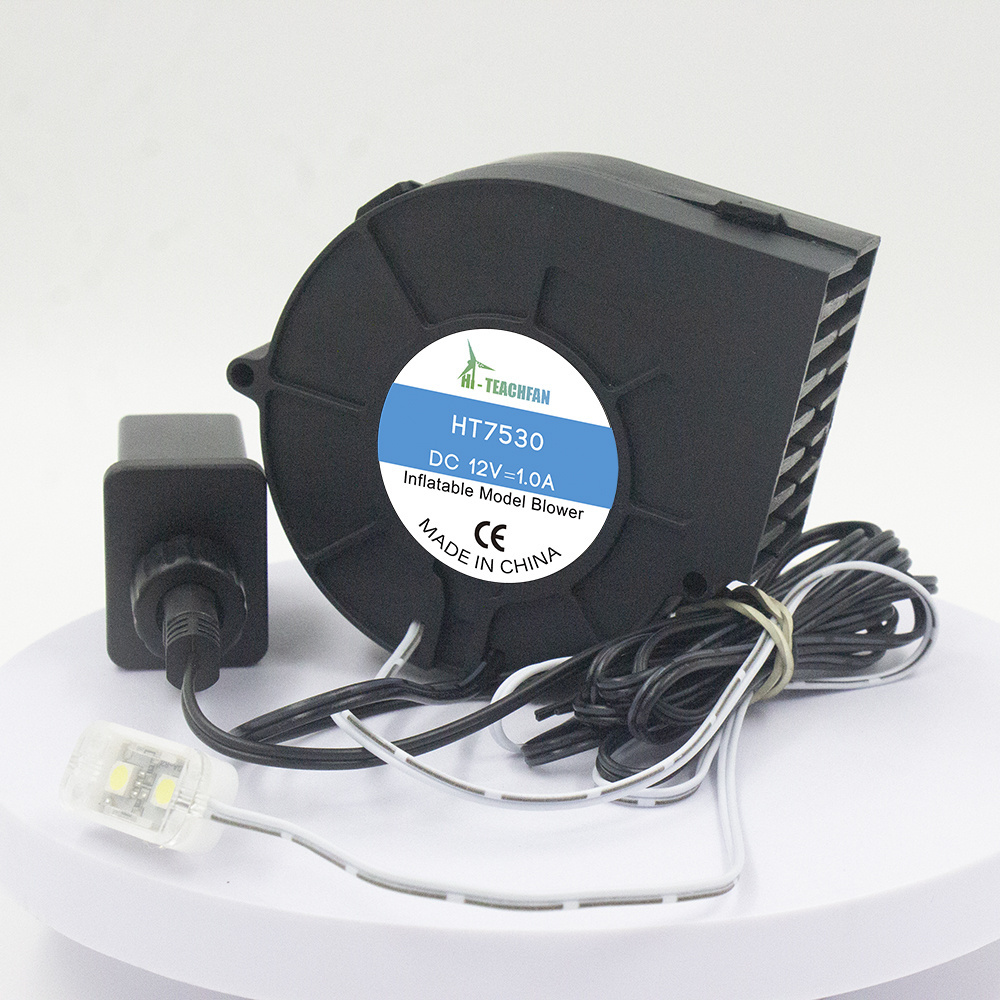

Hi-teachfan 12V DC Air mold blower 75*30mm for inflatable Santa Claus boy
|
||||
|
General Specification Frame and Impeller : Thermal Plastic , UL 94V-0 L ead Wire : UL Type (+) Positive : Red (-) Negative : Black Operation Temperature : -10 °C ~ 70 °C 35%~85%RH Storage Temp: -40 °C ~ 70 °C 35%~85%RH
Motor Protection Impedance Protected Reverse Polarity Protected |
|
|||
Centrifugal cooling fan parameter
| Model | Bearing | Rated Voltage |
Operation Voltage |
Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level | Available Features (Option) | weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | A | RPM | CFM | mmHQ | dBA | Tchometer ouput | RD | Thermal Control | PWM | g | |||
| HT10025B | Ball | 12 | 10.8~13.2 | 0.6 | 5000 | 12.97 | 24.59 | 50.1 | √ |
√
|
√ | 77.5 | |
| 0.55 | 4000 | 10.17 | 13.94 | 44.1 | √ | √ | √ | ||||||
| 0.5 | 3000 | 7.49 | 6.45 | 35.5 | √ | √ | √ | ||||||
| 0.4 | 2500 | 6.3 | 4.19 | 30.0 | √ | √ | √ | ||||||
| 0.3 | 2000 | 4.93 | 2.4 | 24.0 | √ | √ | √ | ||||||
| 24 | 21.6~26.4 | 0.35 | 4500 | 11.48 | 19.29 | 47.7 | √ | √ | √ | ||||
| 0.3 | 4000 | 10.17 | 13.94 | 44.1 | √ | √ | √ | ||||||
| 0.25 | 35 | 8.83 | 10.1 | 39.8 | √ | √ | √ | ||||||
