Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ubocnc
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
2000x3100mmx1700mm
-
Power (kW):
-
3.5
-
Weight (KG):
-
3000
-
Reducer:
-
Japan Shimpo reducer
-
Control System:
-
Syntec controller
-
Table:
-
Vacuum working table with 5.5kw pump
-
Inverter:
-
Fuling
-
Spindle:
-
HQD/HSD/ Italy Hiteco 5axis spindle
-
Speed:
-
Max travelling speed : 40000mm/min Max working speed : 20000mm/min
-
XYAC axis:
-
Syntec YASKAWA servo motor
-
Driving Syestm:
-
Syntec
-
X, Y transmission:
-
Germany WMH HERION Rack and gear
Quick Details
-
Working Table Size(mm):
-
1200*1200 *2sets
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ubocnc
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
2000x3100mmx1700mm
-
Power (kW):
-
3.5
-
Weight (KG):
-
3000
-
Reducer:
-
Japan Shimpo reducer
-
Control System:
-
Syntec controller
-
Table:
-
Vacuum working table with 5.5kw pump
-
Inverter:
-
Fuling
-
Spindle:
-
HQD/HSD/ Italy Hiteco 5axis spindle
-
Speed:
-
Max travelling speed : 40000mm/min Max working speed : 20000mm/min
-
XYAC axis:
-
Syntec YASKAWA servo motor
-
Driving Syestm:
-
Syntec
-
X, Y transmission:
-
Germany WMH HERION Rack and gear

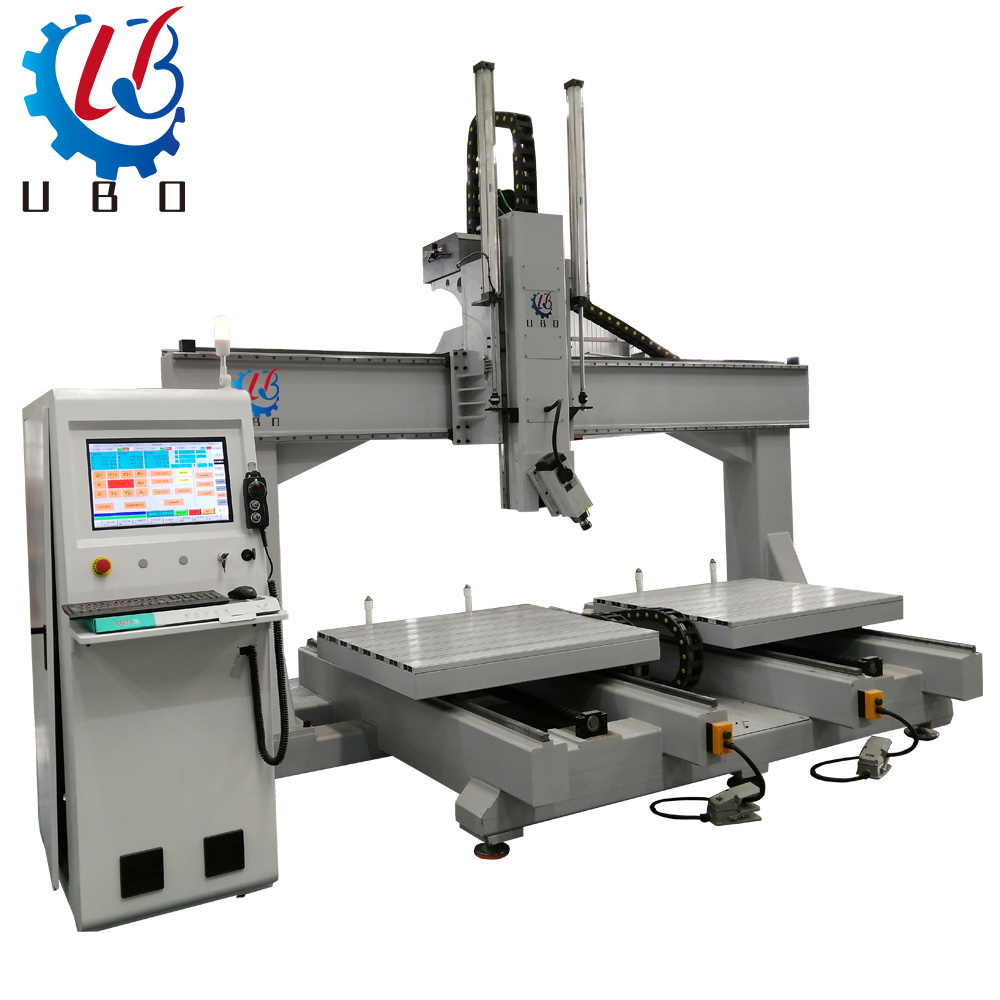

Auto matic Tool Changer 4 axis cnc wood router foam mold marking ATC cnc milling machine with double table
UW-A1212-24A Series 4axis ATC CNC ATC is a great machine with totally five axis. Heavy duty body structure with double table moving ,much more stable. Routing is driven by Syntec industrial CNC controller with an easy to use system interface. You can processing on sample ,then fixed the materials on another table ,so that save time to improve the efficient.
1) The machines’body is strong, rigid, high precision, reliable and durable.
2) Imported high precision ball screw, smooth movement, to ensure that the machine tools high-precision.
3) High quality imported linear guide HIWIN/PMI has much longer life 10 times of life-time than round guide; It is stable and hard to distort.
4) double moving table, more table and high efficient working.
5) High performance driven motor to ensure that the machines high speed and accuracy.
6) The Syntec control system is a very popular control system with high quality.
7) Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
Wood furniture industry:
Doors, Cabinets, Tables, Chairs, Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards, and so on.
Advertising industry:
Signage, Logo, Badges, Display board, Meeting signboard, Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Application Industry:
Mold industry: various large metalloid mould, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.
Instrument industry: 3-d surface engraving and shape cutting of large-scale instruments.
Others:
Relief sculpture and 3D engraving and cylindrical object.
|
item |
value |
|
Model |
UW-A1212-24A |
|
Range of Spindle Speed(r.p.m) |
1rpm - 24000rpm |
|
Positioning Accuracy (mm) |
0.01mm |
|
No. of Spindles |
Single |
|
Working Table Size(mm) |
1 2 00* 1200 *2sets |
|
Machine Type |
CNC |
|
Repeatability (X/Y/Z) (mm) |
0.03mm |
|
Certification |
CE |
|
Key Selling Points |
Easy to Operate |
|
Marketing Type |
Hot Product 2021 |
|
Machinery Test Report |
Provided |
|
Video outgoing-inspection |
Provided |
|
Speed |
Max travelling speed : 40000mm/min Max working speed : 20 000mm/min |
|
Color |
Customer Needing |
|
Spindle |
HQD/HSD/ Italy Hiteco 5axis spindle |
|
Control system |
Syntec controller |
|
X, Y transmission |
Germany WMH HERION Rack and gear |
|
Z transmission |
Taiwan TBI Ballscrew |
|
Driving Syestm |
Syntec |
|
XYAC axis |
Syntec YASKAWA servo motor |
|
Inverter |
Fuling |
|
Reducer |
Japan Shimpo reducer |
|
Motion positioning accuracy |
±0.05mm |
|
Repeated positioning accuracy |
±0.02mm |
|
W eight |
3000kg |
All the working area and specifications can be customized according to requests.
Main parts:
SERVICE:
1. we can Training you how to install the machine,and also training how to use the machine online. Or training you in our factory for free . we also can send engineer to your factory ,you you should bear the fees.
2. long time Guarantee for 2 years
3.User-friendly English manual for machine using and maintaining
4.24-hour technical support by email or calling
FAQ:
1) I am new in this kind of cnc machine, is it easy operate?
Sure .before you order ,we can help you choose the suitable machine.
Before shipping ,we can help you take guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
We have long guarantee,within warranty, Free parts send to you if machine have any problem.
Whole life service for machine, please feel free contact us if your machine have any problem.
3) MOQ order?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
